3 Components and power supply

Chapter 3 Components and power supply
This chapter describes the Teldat H2 RAIL chassis and its main components. The following sections are included:

3.1 Components

3.1.1 Front panel

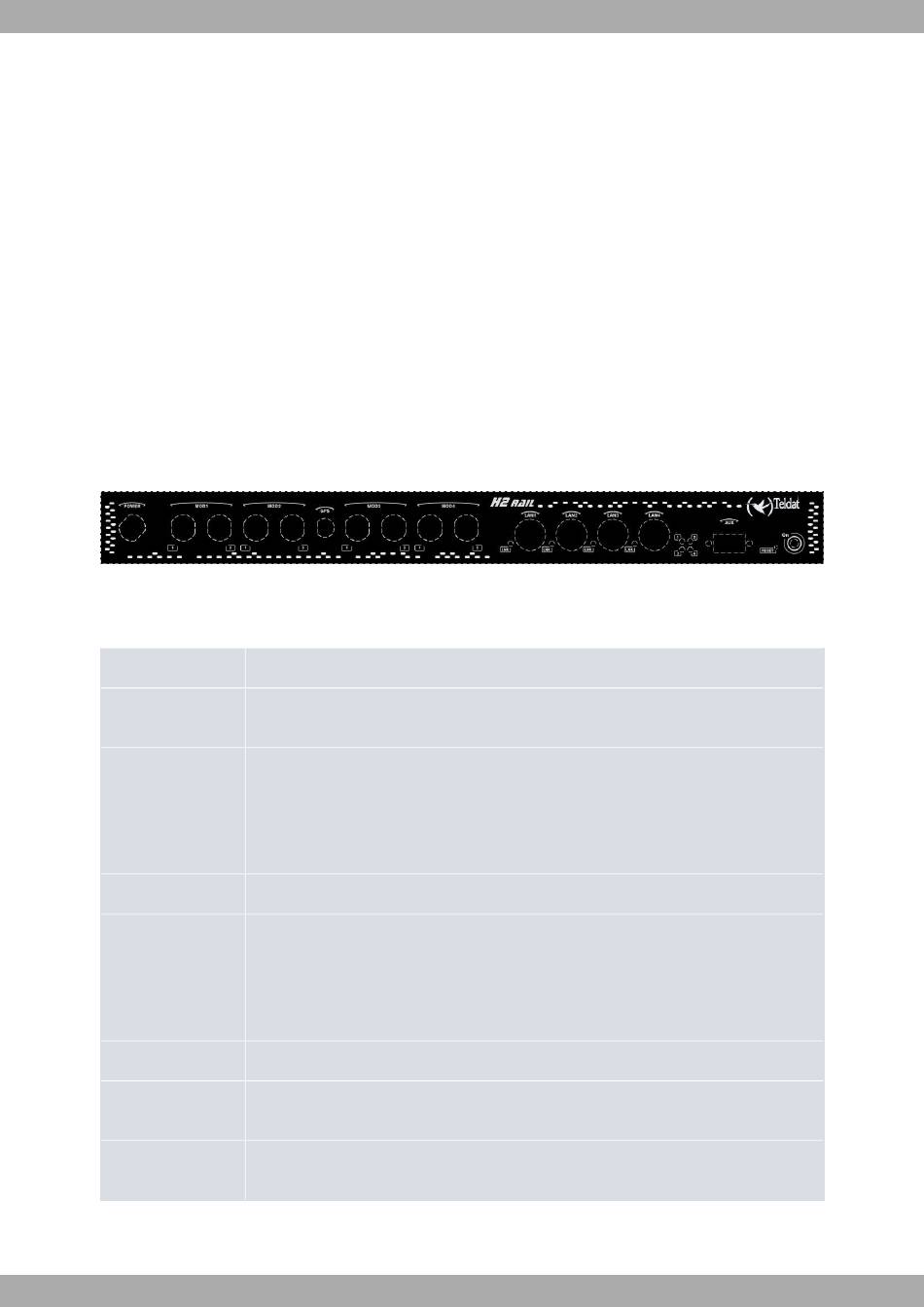

The following image shows the device's front panel.
Front panel
Fig. 2:
The front panel elements are as follows:
Table 1: Front panel elements
Item
POWER
MOD1, MOD2
GPS
MOD3, MOD4
LAN1..LAN4
AUX
RESET
In addition to the connectors, the front panel also contains a set of LEDs that indicate router status.
4
• Components.
• Assembly instructions.
• Power supply.
• RESET button.
• Data connection.
• SIM card installation.
Description
Power connection. For further information on the power connection, please see
source on page 7
WWAN/WLAN antenna connectors.
The created interface is cellular1/x or wlan1/0 for MOD 1, and cellular2/x or wlan2/0 for
MOD2.
The type of device installed for each position depends on the commercial configuration.
GPS antenna connector.
WWAN/WLAN antenna connectors.
The created interface is cellular3/x or wlan3/0 for MOD 3, and cellular4/x or wlan4/0 for
MOD4.
The type of device installed for each position depends on the commercial configuration.
LAN connectors for 4-port Gigabit Ethernet switch.
DB9 connector, which provides access to the device's local console for configuration and
monitoring purposes.
Reset button. For further information on how the reset button works, please see
ton on page 9
Teldat S.A.
Power
RESET but-
Teldat H2 RAIL
