- Page 1 Manual Teldat S.A. Teldat-3Ge Installation Manual Teldat-Dm 398-I Copyright© Version 9.2 Teldat S.A. Teldat-3Ge Installation Manual...
- Page 2 This publication is subject to change. Teldat S.A. offers no warranty whatsoever for information contained in this manual. Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv- ery, supply or use of this manual.
-
Page 3: Table Of Contents
Technical Specifications ....... . Translated Safety Warnings ......Teldat-3Ge Installation Manual... - Page 4 Table of Contents Teldat S.A. Teldat-3Ge Installation Manual...
-
Page 5: Chapter 1 Installing The Router

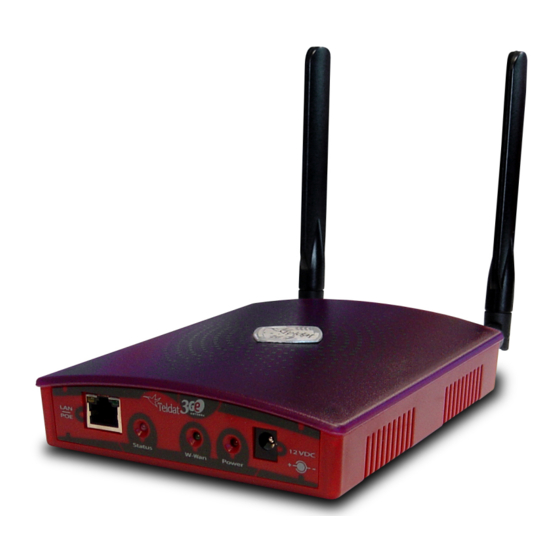

Fig. 1: : External aspect The Teldat-3Ge is the enterprise access point to the 3G network. This device provides a unique interface with the access router over the corporate Ethernet LAN infrastructure. This singular approach avoids deployment of expens- ive and bulky ultra-low-loss coaxial cables, needed to link the access router to an RF antenna (often located far from interior setups). -
Page 6: Recycling And The Environment
Teldat-3Ge Fig. 2: The concept The Teldat-3Ge has two interfaces: the RF interface providing access to the 3G network, and an Ethernet port, which interfaces with the router over the LAN infrastructure. Figure 3 illustrates the basic connection schema: Teldat-3Ge Fig. -
Page 7: Connections
Disconnect the power supply from the main electricity electricity supply. supply. If you need redundant power, connect the power supply to the main electricity supply. If you need redundant power, connect the power supply to the device. Connect the Ethernet cable. Teldat-3Ge Installation Manual... -
Page 8: If The Ethernet Cable Is Not Poe
1.2.3.1 With External Power Supply Fig. 4: Connecting the power source The Teldat-3Ge can be powered by an external AC/DC power source through the Ethernet cable if it complies with the POE 802.3af standard. To connect the power supply to the device, please follow the steps set forth in... -
Page 9: Data Connections
Fig. 5: POE Injector: Aspect The Teldat-3Ge can be powered through the Ethernet cable, provided it complies with the POE 802.3af standard. To connect the Ethernet cable with the POE power to the router, please carry out the steps set forth in... - Page 10 Fig. 7: LAN Connector 1.2.4.2 Connecting the Teldat-3Ge The Teldat-3Ge has one or two connectors for external SMA RF antennas, which improve the quality of the signal received and transmitted through the WWAN module. There are various cellular telephony technologies that use antenna diversity to improve the received signal (HSUPA, CDMA EV-DO, etc.).
- Page 11 For optimum performance, use the radio frequency accessories (antennas and cables) recommended by Teldat. If you use extension cables to connect the antennas to the Teldat-3Ge , they must be H155 coaxial cables. Figure 8 and Figure 9 show you how to install them.
-
Page 12: Installing The Sim Card
3Ge and the base station degrade the RF signal. Place the device above ground level and steer it towards the nearest base station. • The density of materials also affects the Teldat-3Ge . Place it away from any type of wall, metal screens, mirrors, etc. -
Page 13: Meaning Of The Leds
GREEN: Communication has been established. The device is ready for normal operations. During startup, the application loads. BLINKING GREEN: There is traffic over the WWAN interface. In Coverage Test mode (blinking more than 3 times per second) this indicates an optimum position. Teldat-3Ge Installation Manual... - Page 14 OFF: The device cannot startup, please contact the technical service. YELLOW: There is a physical layer in the Ethernet. LEFT LED OFF: There is no physical layer. Check the Ethernet cable. BLINKING GREEN: Data is being received over the LAN. RIGHT LED Teldat-3Ge Installation Manual...
-
Page 15: Chapter 2 Appendices
The firmware upgrade is carried out through a conventional TFTP file transfer. You will need a TFTP server where the Teldat-3Ge can download its firmware image. This server can actually be hosted in the current access router. Both the firmware image and the TFTP server IP address are configured in the Teldat-3Ge on startup during DHCP negotiation. -
Page 16: Ant Connector
RF in/out External 2.3.3 Power Connector Internal POSITIVE External NEGATIVE 2.4 Technical Specifications Hardware Architecture PROCESSORS Coldfire MCF5328 MEMORY 32 Mbytes in RAM. STORAGE UNIT FLASH Memory (8 Mbytes). LAN Interface PROTOCOLS Ethernet (802.3). SPEED 10/100 Mbps (10/100BaseT) Teldat-3Ge Installation Manual... - Page 17 450 g. Environmental Specifications TEMPERATURE NORMAL OPERATING: -20 ºC to 65 ºC RESTRICTED OPERATING: -30 ºC to 75 ºC STORED: -40 ºC to 85 ºC RELATIVE HUMIDITY ON: 5 % to 85 % Others MTBF > 200.000 hours Teldat-3Ge Installation Manual...
-
Page 18: Translated Safety Warnings
2 Appendices Teldat S.A. 2.5 Translated Safety Warnings Teldat-3Ge Installation Manual...
