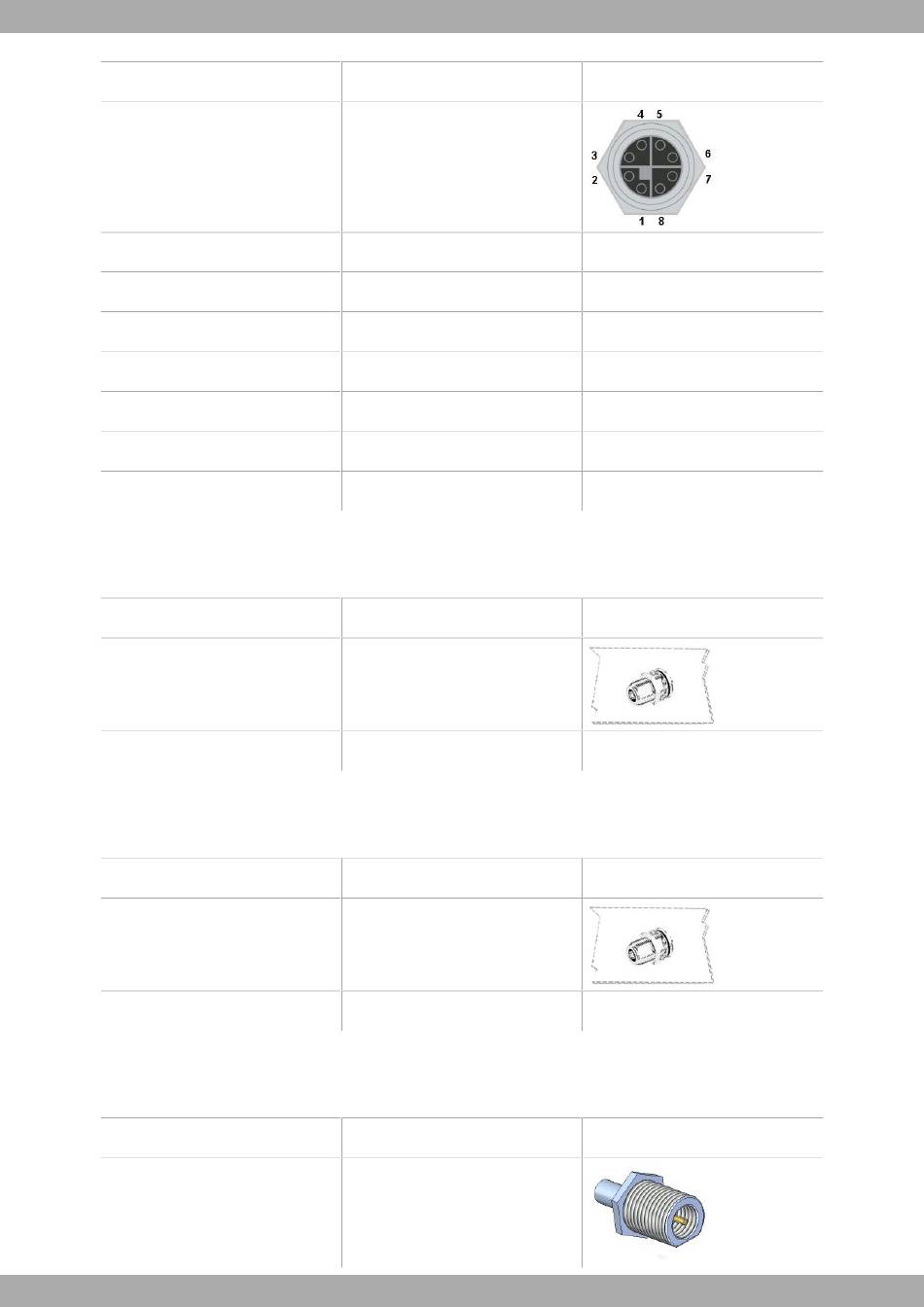

A.3.3 WWAN connectors
The WWAN connector installed is an N female coaxial.
PIN
Internal
External
A.3.4 WLAN connectors
The WLAN connector installed (for devices equipped with this interface) is an N female coaxial.
PIN
Internal
External
A.3.5 GPS connector
The GPS connector installed (for devices equipped with this interface) is an FME male.
PIN
Internal
Teldat H2 RAIL
GE Signal -> Signal
BI-DA+-> Tx+ (1)
BI-DA--> Tx- (2)
BI-DB+-> Rx+ (3)
BI-DB- -> Rx- (6)
BI-DD+(4)
BI-DD-(5)
BI-DC- (7)
BI-DC+(8)
Signal
RF In/Out
Gnd
Signal
RF In/Out
Gnd
Signal
RF In
M12 8P X-Code female connector
N-Type connector (female jack)
N-Type connector (female jack)
RF FME male connector
