Teldat S.A.

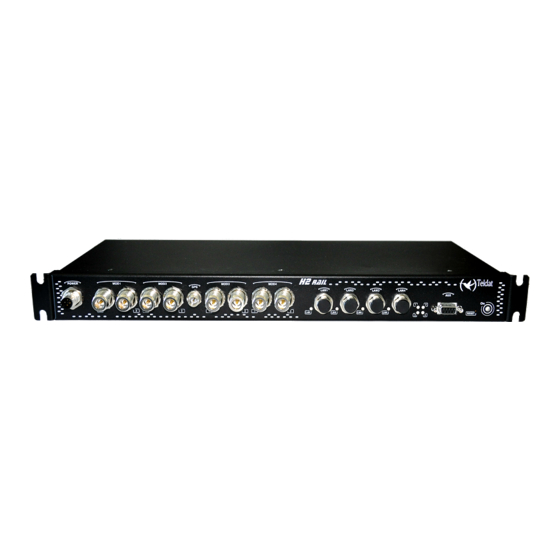

Teldat H2 RAIL
Installation Manual
Copyright© Teldat DM685-I Version 1.4 11/2016 Teldat S.A.
Teldat H2 RAIL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H2 RAIL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teldat H2 RAIL

Summary of Contents for Teldat H2 RAIL

  • Page 1 Manual Teldat S.A. Teldat H2 RAIL Installation Manual Copyright© Teldat DM685-I Version 1.4 11/2016 Teldat S.A. Teldat H2 RAIL...
  • Page 2 This publication is subject to change. Teldat S.A. offers no warranty whatsoever for information contained in this manual. Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv- ery, supply or use of this manual.

  • Page 3: Table Of Contents

    Chapter 2 Teldat H2 Rail........3 Introduction .
  • Page 4 RF specifications ........WI-FI specifications ........Teldat H2 RAIL...

  • Page 5: Chapter 1 About This Manual

    1 About this manual Teldat S.A. Chapter 1 About this manual This is the installation manual for the Teldat H2 RAIL router. It contains instructions on how to install the device in a working environment. 1.1 Supported devices The information in this manual only applies to the Teldat H2 RAIL router.

  • Page 6: Related Documentation

    1 About this manual Teldat S.A. Email: support@teldat.com 1.8 Related documentation Teldat Dm748-I Software Updating. Teldat Dm781-I Cellular Interface. Teldat Dm812-I GPS. Note The manufacturer reserves the right to make changes and/or improvements to any and all parts of the software and hardware of this product, and to modify the specifications of this manual without prior no- tice.

  • Page 7: Chapter 2 Teldat H2 Rail

    2.1.2 Hardware monitoring The LEDs on the front panel are used to monitor the hardware in the Teldat H2 RAIL. These LEDs provide visual in- formation regarding the state of the hardware components, indicating whether there is connectivity, data flow, etc.

  • Page 8: Chapter 3 Components And Power Supply

    3 Components and power supply Teldat S.A. Chapter 3 Components and power supply This chapter provides information on the chassis and components of the Teldat H2 RAIL. Said information covers the following: • Components. • Assembly instructions. • Power supply.

  • Page 9: Rear Panel

    Green -> interface up. Blinking (green/red) -> activity/maintenance. 3.1.2 Rear panel The following image shows the Teldat H2 RAIL rear panel, where you can see the rest of the connectors. Rear panel Fig. 4: The elements on the rear panel are as follows:...

  • Page 10: Assembly: Recommendations

    We recommend securing the unit to the rack using the screws and nuts provided. This will ensure the device is se- curely mounted. Fig. 5: Mounting screws 3.2.2 Outline drawing The following outline drawing provides installation instructions: Teldat H2 RAIL...

  • Page 11: Power Source

    Please read the following instructions carefully before connecting the router! 3.3.1 Connecting the power supply The Teldat H2 RAIL is powered by a 110 V or 24 V nominal DC power source depending on the model. Note Please verify device power input is valid for your power feeding.

  • Page 12: Reset Button

    Connect the power supply cable to the power supply. 3.4 RESET Button The following sections describe the features for the RESET button. 3.4.1 Rebooting the device Once the device is operating normally, press the RESET button to reboot. Teldat H2 RAIL...

  • Page 13: Default Configuration

    The Teldat H2 RAIL is equipped with the following data connectors: 3.5.1.1 LAN SWITCH The Teldat H2 RAIL incorporates a 4-port 10/100/1000BaseT switch with automatic MDI/MDIX support to connect to a local area network (LAN). The router has a LINK LED to indicate connection status.

  • Page 14: Connecting To A Wwan Antenna

    3.5.1.2 AUX The front panel of the Teldat H2 RAIL contains a DB9 female connector marked AUX, which can be used as a router configuration port or as a V.24 asynchronous serial port (via a configuration command). The interface behavior or functionality must be pre-configured.
  • Page 15 MOD4 2 Aux. / diversity The router does not have any internal antennas. Antennas must be installed in the Teldat H2 RAIL to improve the quality of the signal received and transmitted by the Wireless WAN module (GPRS, UMTS, HSDPA, HSUPA, HSPA+, LTE, etc.).

  • Page 16: Connecting The Wlan Antenna

    3.5.3 Connecting the WLAN antenna The Teldat H2 RAIL is equipped with type N connectors to connect up to two WLAN (Wi-Fi) antennas (on models equipped with this interface). Since the router doesn't have any internal antennas, external antennas must be installed on the Teldat H2 RAIL to improve WLAN signal quality.
  • Page 17 3.5.5.1 Configuration using the local console (AUX connector) The Teldat H2 RAIL has a DB9 female connector on the front panel known as AUX. This provides access to the router local console and can operate as an asynchronous serial port. The interface behavior, or function, must be pre-configured.

  • Page 18: Sim Card Installation

    • Configure the Ethernet interface on the IP terminal (usually a PC) using an IP address within the following range [192.168.1.2, 192.168.1.254] and mask 255.255.255.0. For example, 192.168.1.2, 255.255.255.0. • Connect the IP terminal Ethernet interface to any of the Ethernet switch ports on the Teldat H2 RAIL (LAN1..4 connectors) using an appropriate Ethernet cable (M12 to RJ45).
  • Page 19 3 Components and power supply Teldat S.A. Inserting the SIMs Fig. 15: Teldat H2 RAIL...

  • Page 20: Chapter 4 Compliance

    70 ºC (158 ºF) y bajo estas condiciones la superficie metálica puede alcanzar temperaturas que puden causar daños. The equipment is intended to be installed by service personnel and only handled by qualified personnel. If not, the device may be damaged and malfunction. Teldat H2 RAIL...
  • Page 21 Desconecte siempre el equipo de la red antes de instalar las tarjetas SIM. Desconecte siempre el equipo antes de desmontar la carcasa para acceder a las bandejas. Al insertar las tarjetas SIM, protéjase contra descargas electroestáticas (ESD). No toque los conectores de las tarjetas SIM. Teldat H2 RAIL...

  • Page 22: Weee Information

    REACH Candidate List. Information is cur- rently provided to consumers upon request. 4.5 EC declaration of conformity English (EN) Hereby, Teldat S.A. declares the radio equipment type Teldat H2 RAIL is in com- pliance with: Directive 2014/53/EU (RED) Directive 2011/65/EU (RoHS) as given by the European Parliament.

  • Page 23: National Restrictions

    WAS/RLANs yet. There are restrictions in: Albania, Andorra, Azerbaijan, Moldova, Monaco, San Marino and Vatican City Said requirements may vary with time or from country to country. Teldat S.A. recommends you check with local au- thorities for the latests status on national regulations.
  • Page 24 4 Compliance Teldat S.A. Separate collection for electrical and electronic equipment. Refer to the manual. Indoor use only. Teldat H2 RAIL...

  • Page 25: Appendix A Technical Information

    Check the antenna is properly installed (make sure it is screwed in correctly), Check the SIM tray configuration is correct. A.2 Maintenance Teldat H2 RAIL routers are designed to be highly available and durable, and for this reason have no moving parts. This design makes any maintenance unnecessary. A.2.1 Software updates Teldat H2 RAIL router software can be updated to newer versions.

  • Page 26: Lan Connector

    The WWAN connector installed is an N female coaxial. Signal N-Type connector (female jack) Internal RF In/Out External A.3.4 WLAN connectors The WWAN connector installed (for devices equipped with this interface) is an N female coaxial. Signal N-Type connector (female jack) Teldat H2 RAIL...

  • Page 27: Gps Connector

    PORTS 4-port switch managed through MDI/MDX autodetection. SPEED 10/100/100 Mbps (BaseT). CONNECTOR M12 8P X-Code female connector. Wireless WAN interface STANDARDS GPRS, UMTS, HSDPA, HSUPA, HSPA+, LTE … Depending on the WWAN ver- sion in the device. Teldat H2 RAIL...
  • Page 28 Mbps; MSC5 120 Mbps; MCS6 135 Mbps; MCS7 150 Mbps; MCS8 30 Mbps; MCS9 60 Mbps; MCS10 90 Mbps; MCS11 120Mbps; MCS12 180 Mbps; MCS13 240 Mbps; MCS14 270 Mbps; MCS15 300 Mbps. Receive Sensitivity 802.11 a: < -77dBm@54Mbps. (1R) 802.11b: <-85dBm@11Mbps. 802.11g: < -77dBm@54Mbps. Teldat H2 RAIL...
  • Page 29 AT, PPP, GPS-DATA. SPEED Asynchronous Port: 300 at 115,200 bps. Local console: 9,600 bps (configurable up to 115,200). CONNECTOR DB9 female located on the front panel of the device. Power INPUT VOLTAGE Depending on the model: +110 VDC. Teldat H2 RAIL...
  • Page 30 240 x 483 x 45 mm. WEIGHT 3.8 kg. Environmental specifications AMBIENT TEMPERATURE ON: -25 °C to 70 °C. In storage: -30 °C to 85 °C. RELATIVE HUMIDITY Annual average < 75 %. During 30 consecutive days per year < 95 %. Teldat H2 RAIL...

  • Page 31: Appendix B Radio Information

    Tx: 170–1785 MHz +23 dBm ± 1 dB Rx: 1805–1880 MHz Band 8 Tx: 880–915 MHz +23 dBm ± 1 dB Rx: 925–960 MHz Technology: UMTS(WCDMA)/ HSDPA/ HSUPA/ HSPA+/ DC-HSPA+provided by Sierra Wireless MC7430 Bands Frequencies Conducted Transmit Power Teldat H2 RAIL...

  • Page 32: Wi-Fi Specifications

    Note: The maximum RF power setting will vary according to individual country regulations. (tolerance ± 2 dB) 802.11a: +14dBm @54Mbps. 802.11b: +19dBm @11Mbps. 802.11g: +16dBm @54Mbps. 802.11gn HT20: +15dBm @MCS7. 802.11gn HT40: +14dBm @MCS7. 802.11an HT20: +12dBm @MCS7. 802.11an HT40: +11dBm @MCS7. Teldat H2 RAIL...
