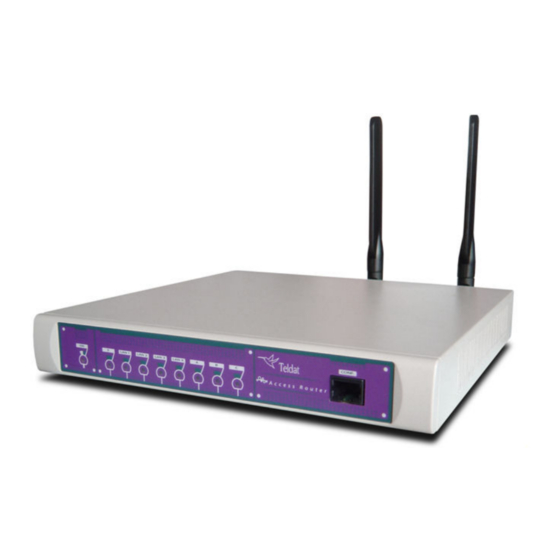

Teldat H1 HSDPA Manual

H series; l series
Hide thumbs Also See for H1 HSDPA:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
Manual
Teldat S.A.
Teldat H/L Router Family
Teldat-Dm 402-I
Copyright© Version 7.3 Teldat S.A.
Teldat H/L Router Family
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H1 HSDPA and is the answer not in the manual?

Questions and answers

Related Manuals for Teldat H1 HSDPA

Summary of Contents for Teldat H1 HSDPA

  • Page 1 Manual Teldat S.A. Teldat H/L Router Family Teldat-Dm 402-I Copyright© Version 7.3 Teldat S.A. Teldat H/L Router Family...
  • Page 2 This publication is subject to change. Teldat S.A. offers no warranty whatsoever for information contained in this manual. Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv- ery, supply or use of this manual.

  • Page 3: Table Of Contents

    Safety warnings ........Teldat H/L Router Family...
  • Page 4 Table of Contents Teldat S.A. Teldat H/L Router Family...

  • Page 5: I Important Information

    Furthermore, it is crucial to avoid any kind of contact between the device components and necklaces, bracelets, rings, ties, etc. Teldat H/L Router Family...

  • Page 6: Chapter 1 Description

    The Teldat H/L covers the access needs for cellular technologies (GPRS, UMTS, HSDPA, HSUPA, etc.). Some models may not include a 3G module (Teldat L) although this can be installed at the client’s request. The Teldat H/L has a 4 port Ethernet LAN Switch and can be equipped with a Wireless LAN MINI-PCI module.

  • Page 7: Recycling And The Environment

    1.1.1 Recycling and the Environment Please do not, under any circumstances, throw away any Teldat H/L with normal domestic waste. Ask your local town hall for information on how to correctly dispose of them in order to protect the environment against e-waste. Al- ways respect the current laws regarding waste material.
  • Page 8 1 Description Teldat S.A. Teldat H/L Router Family...

  • Page 9: Chapter 2 Installation

    Connect the power supply to the mains. Turn the power switch ON. 2.1.1 Power Source Connection The Teldat H/L is powered with an external AC/DC source. To avoid electric shocks, residual current circulation and other unwanted effects that may disrupt communication, the following is recommended:...

  • Page 10: Data Connection

    Fig. 7: SERIAL connector CONF: The Teldat H/L is equipped with a serial interface through a female RJ45 connector, on the front panel, known as Conf. This provides access to the router’s local console or operates as an asynchronous serial port. The interface behavior must be preconfigured.

  • Page 11: Connecting The Wwan Antenna

    Some Teldat H/L modules may not incorporate the Wireless Wan module. These routers do not have RF connectors for WWAN. Installing these antennas on the Teldat H/L is essential to improve the quality of the signal received and transmitted by the Wireless WAN module (GPRS, UMTS, HSDPA, HSUPA, etc.).
  • Page 12 For optimum performance, use the radio frequency accessories (antennas and cables) recommended by Teldat. Teldat has a range of accessories available (90º mount antennas, exterior antennas, ceiling antennas, extension cables, etc.), allowing the Teldat H/L to be installed in different locations.

  • Page 13: Connecting The Wlan Antenna

    2.1.4 Connecting the WLAN antenna The Teldat H/L may have two connectors for external antennas, to improve the quality of the signal received and transmitted by the Wireless LAN module. This module is optional; so your router may not have Wireless LAN or an- tennas.

  • Page 14: Installing The Sim Card

    • Configure the Ethernet interface on the IP terminal (normally a PC) using the IP address from the following range [192.168.1.2, 192.168.1.254] and mask 255.255.255.0. E. g. 192.168.1.2, 255.255.255.0. • Conect the IP terminal’s Ethernet interface to any of the Ethernet Switch ports on the Teldat H/L (the LAN1..4 con- nectors) by means of the Ethernet cable (RJ45) provided.

  • Page 15: Installing The Internal Sim

    • Locate the tray, located in the red colored slot labeled SIM CARD. • Extract the tray by pressing the yellow button, (on the right-hand side of the slot), using a pointed object (e.g, a ballpoint) as shown in the following figure. Teldat H/L Router Family...
  • Page 16 • When placing the SIM, make sure the connectors are visible (these are normally a gold color). Also make sure the tray connectors match the SIM connectors. • Gently push the tray back into the slot, making sure the SIM card remains on the tray. Teldat H/L Router Family...

  • Page 17: Chapter 3 Meaning Of The Leds

    The following figure shows where LEDs are located on the front panel of the device: Fig. 17: Teldat H: Front panel Fig. 18: Teldat H4 & L1+: Front panel Power-on indicator. It lights up when connected to the power. Router operations OFF: System stopped.
  • Page 18 The device has a MINI-PCI slot where a Wireless LAN daughter card can be in- stalled. (Teldat H1) OFF: Interface unavailable or not installed (not supported). RED: Interface has not been established; no data connection. YELLOW: Connecting. GREEN: Communications established. Teldat H/L Router Family...

  • Page 19: Chapter 4 Microswitches

    Teldat S.A. Chapter 4 Microswitches The Teldat H/L has a block of 8 microswitches useful for maintenance tasks and testing. Here, they are only used to load the default configuration. This block can be found on the underside of the Teldat h/L.
  • Page 20 Press any key to get started At this point, return microswitch 5 to the OFF position (you don’t need to turn off the device). The next time you re- start the router, the saved configuration will run. Teldat H/L Router Family...

  • Page 21: Chapter 5 Appendix

    5.2 Software updating The Teldat H/L can be updated to newer versions. Please contact your dealer for further details on new versions. There are several ways to update a Teldat router. The software required to update Teldat routers is supplied in a format known as distribution. This consists of a single file that contains all the files needed to update your device, as well as detailed information on the content.

  • Page 22: Lan Connector

    5 Appendix Teldat S.A. 5.3.1 LAN Connector RJ45 LAN RJ45 PIN Tx+(input) Tx-(input) Rx+(output) Rx-(output) 5.3.2 WWAN Connectors Internal RF in/out External 5.3.3 WLAN Connectors Internal RF in/out External 5.3.4 SERIAL Connector DB25 SERIAL Teldat H/L Router Family...

  • Page 23: Configuration Connector

    CONF 5.4 Technical Specifications Hardware Architecture PROCESSORS Motorola PowerPC MPC8xx. MEMORY 32/128 Mbytes in SDRAM. STORAGE UNIT FLASH Memory (8/32Mbytes). EEPROM 2 Kbytes, NVRAM 128 Kbytes. LAN Interface PROTOCOLS Ethernet (802.3). SPEED SWITCH 10/100 Mbps (BaseT) Teldat H/L Router Family...
  • Page 24 V24 DCE. Without Hardware flow control. Local Console: V.24 DCE 8-N-1 only, without flow control. SPEED Asynchronous Port: 300 to 115.200 bps Local Console: 9.600 bps CONNECTOR RJ45 female, on the front panel of the device. Power Supply Teldat H/L Router Family...
  • Page 25 LENGTH x WIDTH x HEIGHT 220 x 220 x 30 mm. WEIGHT 0.9 Kg. Environmental Specifications AMBIENT TEMPERATURE ON: 5º to 45ºC. OFF: -20º to 60ºC. RELATIVE HUMIDITY ON: 8% to 85%. OFF: 5% to 90%. Teldat H/L Router Family...

  • Page 26: Safety Warnings

    5 Appendix Teldat S.A. 5.5 Safety warnings Teldat H/L Router Family...
  • Page 27 5 Appendix Teldat S.A. Teldat H/L Router Family...
