3.1.1.1 LEDs

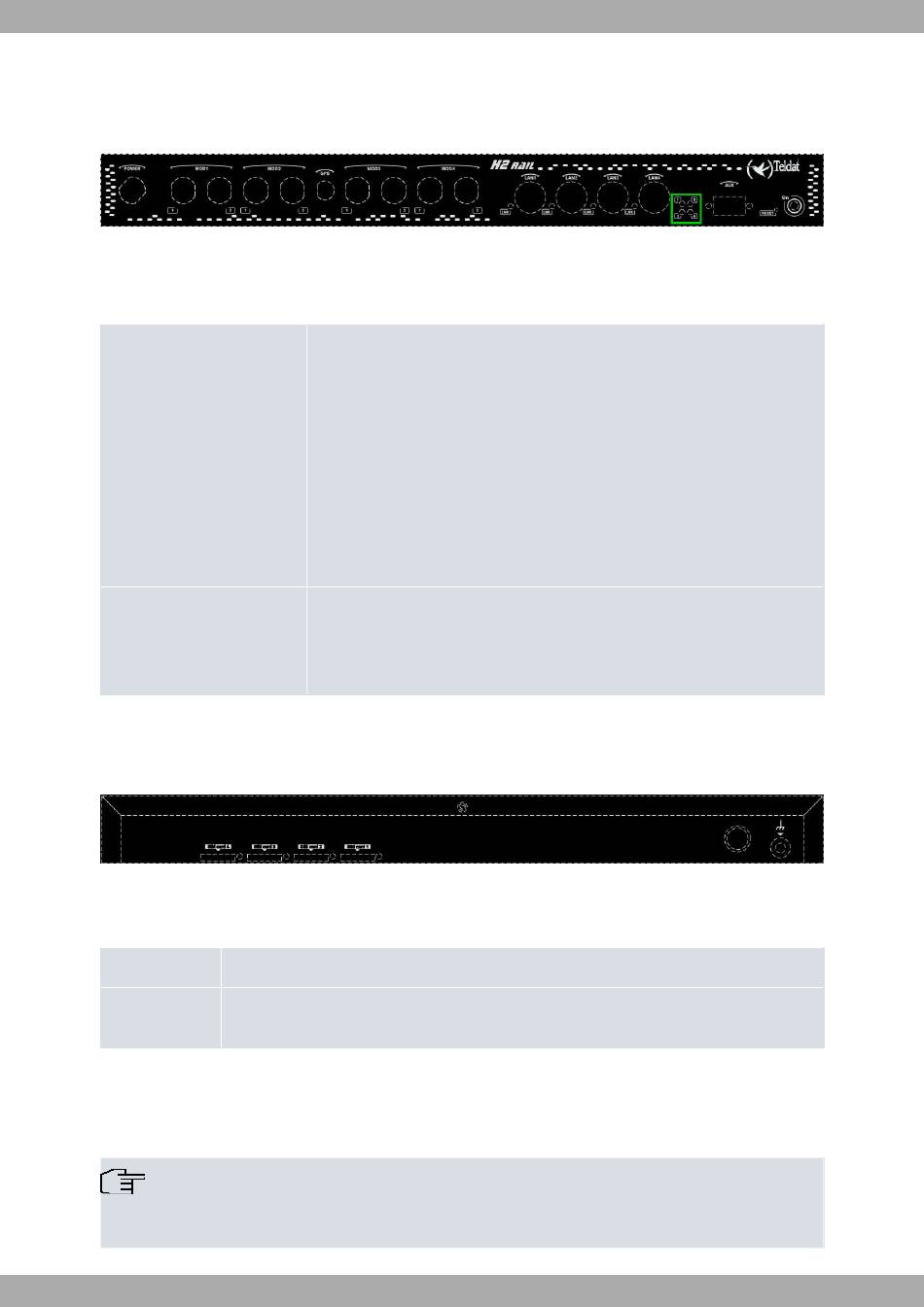

The LEDs are located on the front panel of the router as shown in the following image:
Teldat H2 RAIL
Fig. 3:
The meaning of each LED depends on the modules installed. Each LED belongs to one of four possible modules.
See the table below for the meaning of each LED:
WWAN module
WLAN module

3.1.2 Rear panel

The following image shows the rear panel of the Teldat H2 RAIL where you can see the other connectors.
Rear panel
Fig. 4:
The rear panel elements are as follows:
Table 3: Rear panel elements
Item
SIM card 1..4

3.2 Mounting options

The Teldat H2 RAIL is designed for installation in a 19-inch rack.
Note
The device should be handled and installed by qualified service personnel, otherwise it could be dam-
aged or malfunction.
Teldat H2 RAIL
: Front panel
Off -> system stopped.
Red -> interface is unavailable because it's not installed, not enabled (shutdown)
or there was an auto-test failure.
Amber -> idle.
• Rapid flashing. The device has not registered with the network or there is insuffi-
cient quality for it to do so.
• Slow blinking. GSM connection (GPRS).
• Steady. WCDMA (UMTS / HSDPA) connection.
Green -> connected. Flashing: Data is being transferred.
Red -> interface down.
Green -> interface up.
Blinking (green/red) -> activity/maintenance.
Description
SIM trays (1 to 4). For more information on how to install the SIM cards and assign them to each
module, see SIM card installation on page 14
3 Components and power supply
