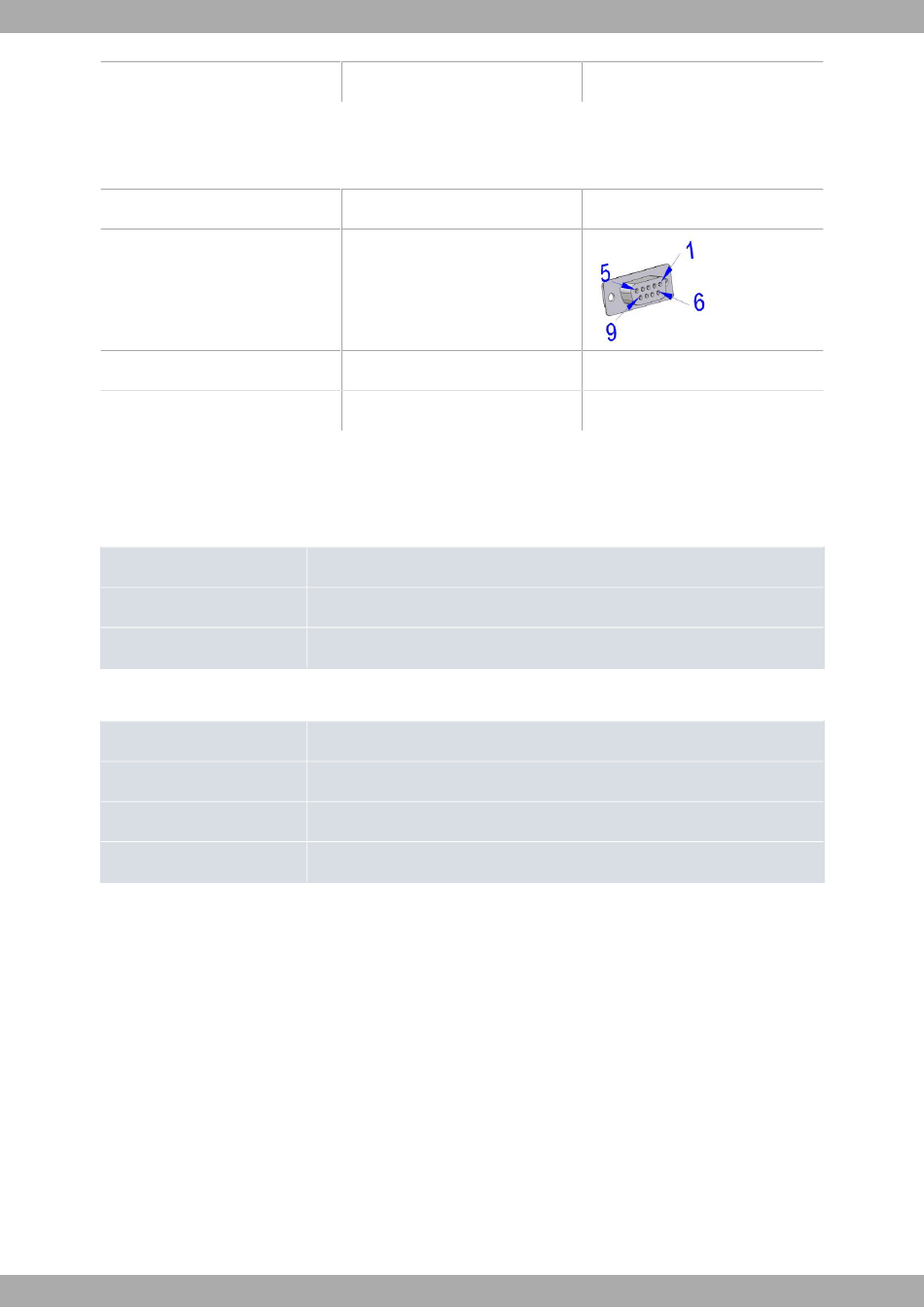

A.3.6 Configuration connector
The configuration connector installed is a DB9 female.
PIN
2
3
5
A.4 Technical specifications
A.4.1 Hardware architecture
PROCESSORS
MEMORY
STORAGE UNIT
A.4.2 LAN interface
PROTOCOLS
PORTS
SPEED
CONNECTOR
24
Gnd
Signal
TxD (Output)
RxD (Input)
GND
Freescale QorIQ processor.
256 MB in DDR3.
FLASH Memory (32 Mbytes).
Ethernet (802.3).
4-port switch managed through MDI/MDX autodetection.
10/100/100 Mbps (BaseT).
M12 8P X-Code female connector.
DB 9 female
Teldat S.A.
Teldat H2 RAIL
