3 Components and power supply

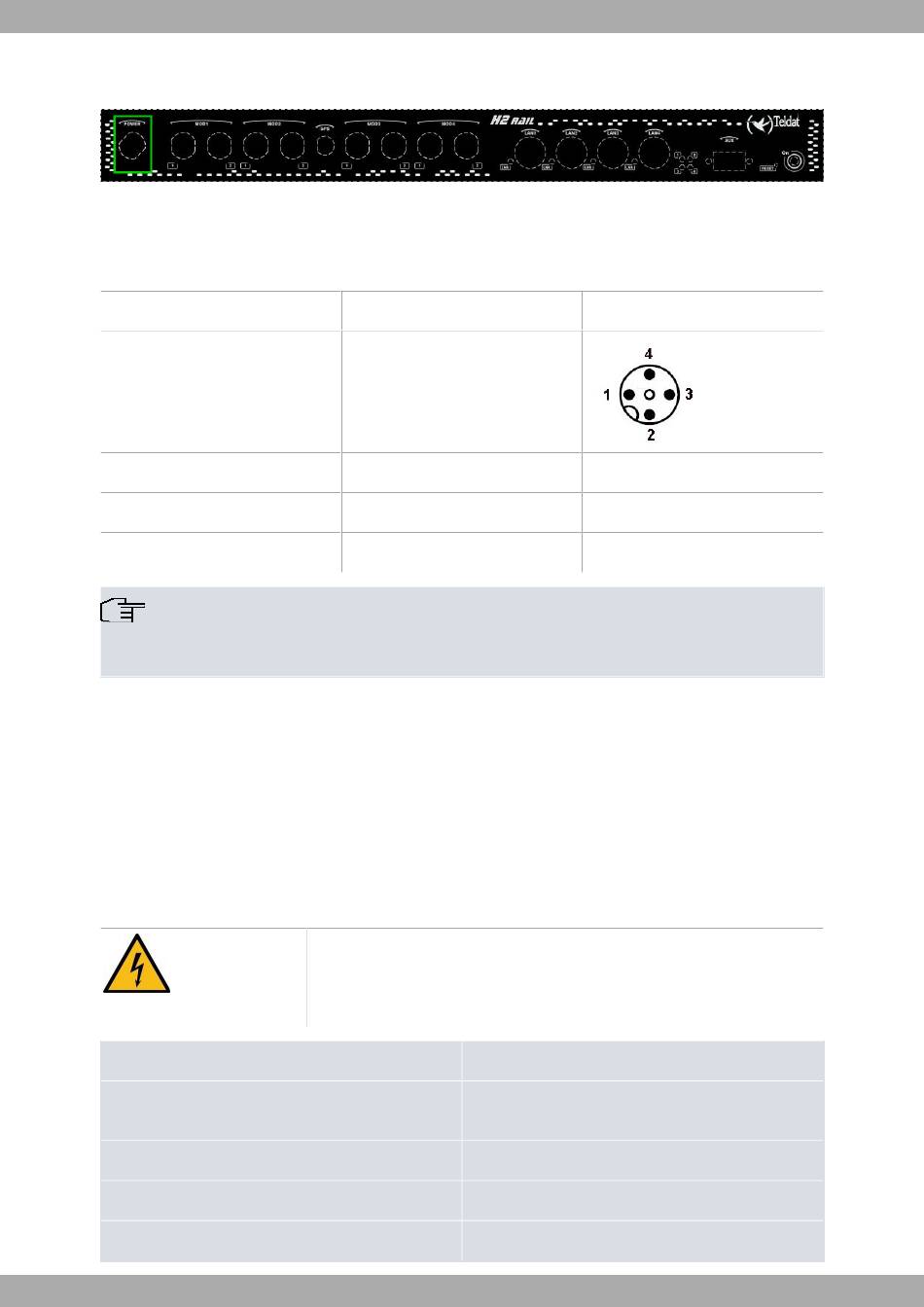

The following image shows the location of the power connector.
Power supply connection
Fig. 7:
3.3.1.1 Power connector pins
The power connector on this router is an M12 4-pole code A male connector or equivalent.
PIN
1
2
3
4
Note
Connections 1-2 and 3-4 are redundant. We recommend keeping this redundancy to guarantee device
availability.
3.3.1.2 Power cable
The power cable is not supplied with the router. The estimated maximum consumption for this equipment is 150 mA
operating at 110 VDC, or 830mA operating at 24 VDC. Any cable with a cable gauge greater than or equal to 0.2
mm (AWG24) is acceptable. The type of cable and its gauge, however, will be determined by the characteristics of
2
the female connector used.
For example, for a female Phoenix Contact SACC-M12FS-4CON-PG7-M or equivalent, we recommend using a
cable with an outside diameter of 4-6 mm with four AWG24-AWG18 conductors.
You don't need a shielded cable. However, if you intend to use one, we recommend attaching the cable to the
grounding point on the other side of the router, to the ground point on the power supply or to both.
To connect
Make sure that the power supply cable is not connected
to the device.
Connect all data cables.
Connect the power supply cable to the device.
Connect the power supply cable to the power supply.
8
Signal
+ V DC
+ V DC
0 V
0 V
Electric current in power cables, telephone lines and communication cables is
dangerous. To prevent electric shocks, connect and disconnect the cables as
shown in the following table before installing, handling or opening the equipment
covers:
To disconnect
Disconnect the power supply cable from the power sup-
ply.
Disconnect the power supply cable from the device.
Disconnect the data cables.
M12 4P Code A male
