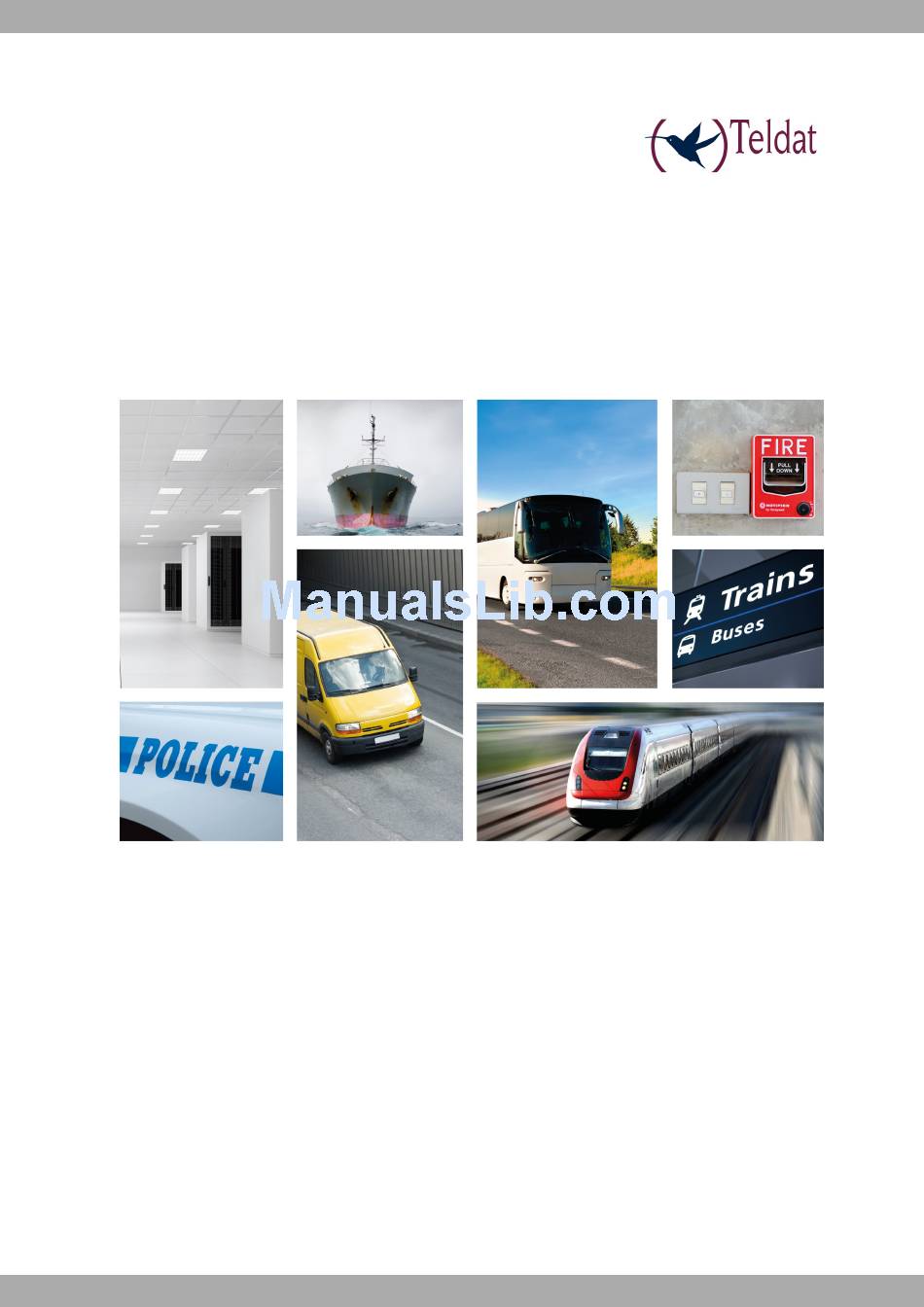

- Page 1 Manual Teldat S.A. Teldat H Automotive Family Installation Manual Copyright© Teldat-DM430-I Version 4.1 7/2015 Teldat S.A. Teldat H Automotive Family...
- Page 2 This publication is subject to change. Teldat S.A. offers no warranty whatsoever for information contained in this manual. Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv- ery, supply or use of this manual.
-
Page 3: Table Of Contents
A.4.7 Dimensions and Weight ....... . Teldat H Automotive Family... - Page 4 Recycling and the Environment ......Translated Safety Warnings ......Teldat H Automotive Family...
-
Page 5: I Important Information
Note Please note that when the device operates for prolonged periods of time under extreme conditions (including temperature and humidity) the service life of the device falls significantly. Teldat H Automotive Family... -
Page 6: Chapter 1 Description
Chapter 1 Description 1.1 Introduction The Teldat H Automotive router family is a range of IP routers especially designed to operate in hostile and extreme environments. Thanks to their ruggedized mechanics and special characteristics, that allow them to bear extreme temperatures, these routers are particularly suited for: automotive applications, industrial environments, industrial telecontrol, distribution installations for electricity, gas, water, etc. -
Page 7: Chapter 2 Installation
Connect the power supply cable to the device 2.1.1 Power Source Connection The Teldat H Automotive router family is powered with an external DC source. To avoid electric shocks, residual current circulation and other unwanted effects, also affecting communications, the... -
Page 8: Protection Fuse
(located on the front panel of the device) and insert the power cable. 2.1.2 Protection Fuse The Teldat H Automotive router family has a protection fuse to stop the device and its surrounding area from being damaged. The following image, shown in red, shows where the protection fuse is located. -
Page 9: Connecting To The Wwan Antenna
2.1.4 Connecting to the WWAN antenna The Teldat H Automotive routers can have one or two connectors in order to connect the WWAN antennas. To as- semble and dismantle the antennas, simply screw them to the connectors labeled WWAN (located at the front of the device). -
Page 10: Connecting The Wlan Antenna
2.1.5 Connecting the WLAN antenna The Teldat H Automotive routers have two connectors for external antennas that improve the quality of the signal received and transmitted through the Wireless LAN module. This module is optional. Your device may not have Wire- less LAN and, consequently, no antennas. -
Page 11: Connecting For Configuration
2.1.6.1 Configuring through the local console (CONF connector) The Teldat H Automotive routers have a DB9 female connector on the front panel referred to as “ Conf.” , which provides access to the device local console. In order to configure this, you must connect the “ Conf.” port to an asyn- chronous terminal (or to a PC with terminal emulation). -
Page 12: Installing The Sim Card
[192.168.1.2, 192.168.1.254] and mask 255.255.255.0. E. g. 192.168.1.2, 255.255.255.0. • Conect the IP terminal’s Ethernet interface to any of the Ethetnet Switch ports on the Teldat H Automotive router (the LAN1..4 connectors) through the Ethernet cable (RJ45) which is provided. -
Page 13: Identifying The Sim Trays
2.2.1 Identifying the SIM trays Once the upper casing has been removed, you can see the different elements inside the device. The following image will help identify the location of the SIM trays. These are indicated by a blue circle. Teldat H Automotive Family... -
Page 14: Installing The Sim
Fig. 11: The Teldat H Automotive has 2 SIM trays which allow you to execute some special configurations. An example of this is installing two SIM cards so one acts as a backup to the other. To carry out this type of configuration, it’s es- sential to identify the trays associated to each SIM as each of them requires a different configuration. - Page 15 (3) Fully insert the SIM card using the guides. (4) Return the tray to its original position. (5) While pressing on the tray, push the fastening towards the inside of the tray (LOCK). (6) The card should be completely held by the tray. Teldat H Automotive Family...
-
Page 16: Chapter 3 Meaning Of The Leds
Teldat S.A. Chapter 3 Meaning of the LEDs The following figure shows the positions of the LEDs on the front panel of the device: Teldat H Automotive: Front panel Fig. 13: Wireless WAN interface channel 0 (cellular0/1). OFF: Interface not available, not installed or not registered. -
Page 17: Chapter 4 Microswitches
The Teldat H Automotive router has a block of 8 available micro-switches that are used for maintenance and test tasks. In this case, they are only used to load the default configuration. This block of micro-switches can be found inside the Teldat H Automotive routers. You need to remove the top cas- ing in order to handle them. - Page 18 Press any key to get started On reaching this point, you can set micro-switch ‘5’ in the OFF position (you don’t have to turn off the device). This way, the saved configuration will run the next time you restart the device. Teldat H Automotive Family...
-
Page 19: Appendix A Technical Information
There are various ways to upgrade a Teldat router. The software required to upgrade Teldat routers is supplied in a format known as distribution. This consists of a single file which contains all the files needed to update your device, as well as in-depth information on the contents of the files. -
Page 20: Lan Connector
Technical Information Teldat S.A. A.3.1 LAN Connector RJ45 LAN (input) (input) Rx+(output) Rx-(output) A.3.2 WWAN Connectors Internal RF in/out External A.3.3 WLAN Connectors Internal RF in/out External Teldat H Automotive Family... -
Page 21: Configuration Connector
Depends on the wireless WAN module that the device has. Please see the manu- al on the appropriate module. CONNECTOR RF SMA Female ANTENNA Depends on the type of wireless WAN. Please see the manual on the antennas for cellular interfaces. Teldat H Automotive Family... -
Page 22: Wireless Lan Interface
180 x 160 x 55 mm WEIGHT 0.9 kg A.4.8 Environmental Specifications AMBIENT TEMPERATURE ON: -15º to 65 ºC. OFF: -30º to 85 ºC RELATIVE HUMIDITY ON: 8 % to 85 %. OFF: 5 % to 90 % Teldat H Automotive Family... -
Page 23: Appendix B Safety Information
B.1 Recycling and the Environment Please do not, under any circumstances, throw away any Teldat H Automotive with normal domestic waste. Ask your local town hall for information on how to correctly dispose of them in order to protect the environment against e- waste. - Page 24 Safety information Teldat S.A. B.2 Translated Safety Warnings Connections Teldat H Automotive Family...
- Page 25 Safety information Teldat S.A. Teldat H Automotive Family...
