3.4 RESET button

The following sections describe the functions of the RESET button.

3.4.1 Restarting the device

Press the RESET button while the device is running to restart the device.

3.4.2 Restoring the factory default configuration

Complete the following steps to reset the device with its factory default configuration:
• With the device switched off, press and hold down the RESET button while you turn the router on using the ON/
OFF switch (1).
• The green PSU LED will light up and the amber Slot LED begins to blink. It continues to blink for 10 seconds.
• To reboot the device with the default settings, let go of the RESET button while the Slot LED is still blinking (i.e.,
before the 10-second blinking period expires).
The router's default configuration sets up the device with the following IP address and access mask:
• IP address: 192.168.1.1
• IP mask: 255.255.255.0
Note
Some devices come with customized settings. This can mean that your device's default configuration is
different to the one shown above.

3.5 Connecting the data

The Teldat H2 RAIL has the following data connections.

3.5.1 Data connection

The Teldat H2 RAIL has the following data connectors:
3.5.1.1 LAN SWITCH
The Teldat H2 RAIL incorporates a 4-port 10/100/1000BaseT switch with automatic MDI/MDIX support to connect to
a local area network (LAN).
The router has a LINK LED that indicates the connection status.

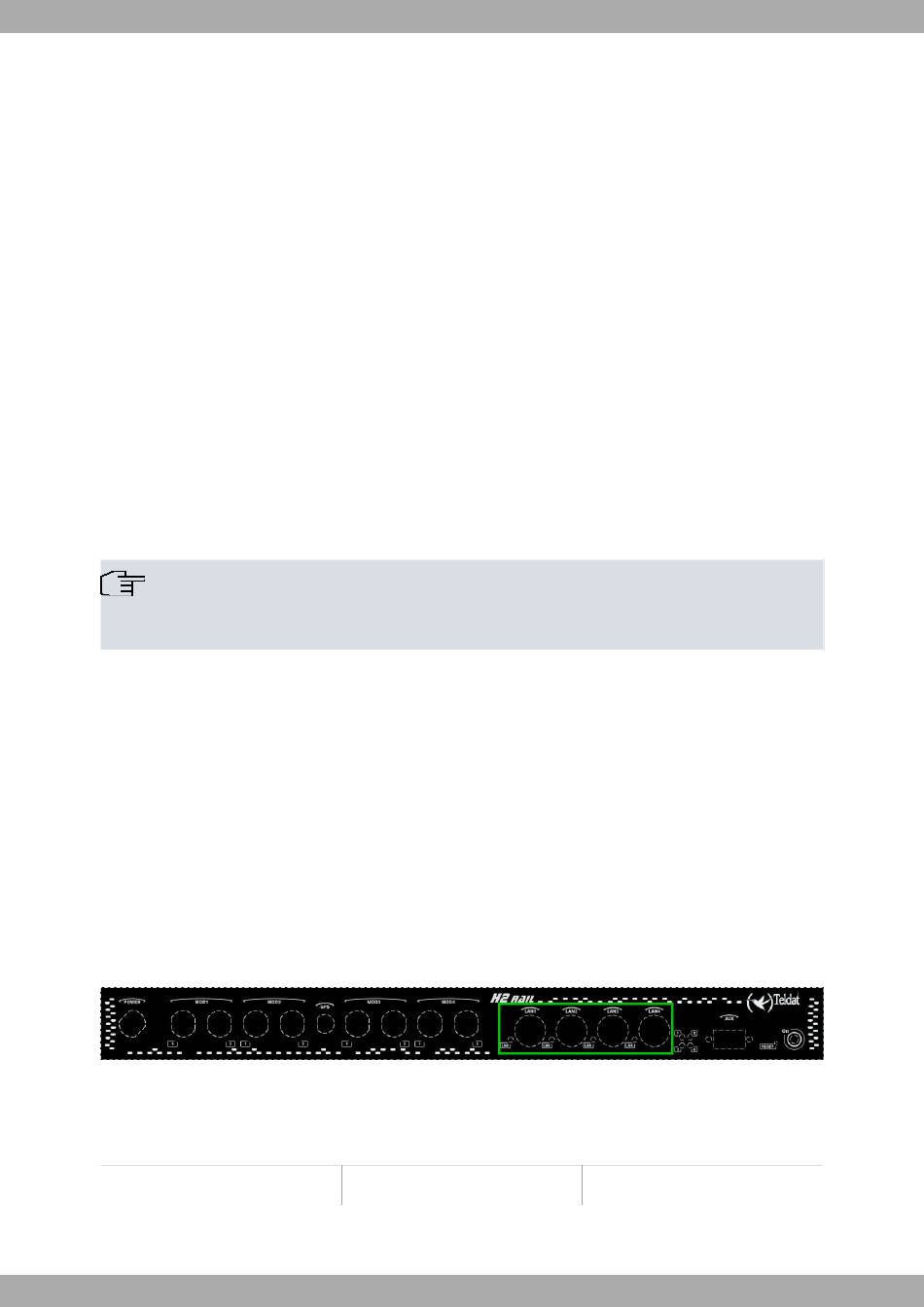

LAN Switch ports (4)
Fig. 8:
3.5.1.1.1 LAN connector pins
The LAN connector installed in the router is an M12 8P X-Code female connector or equivalent.
PIN
Teldat H2 RAIL
GE Signal -> Signal
3 Components and power supply
M12 8P X-Code female connector
