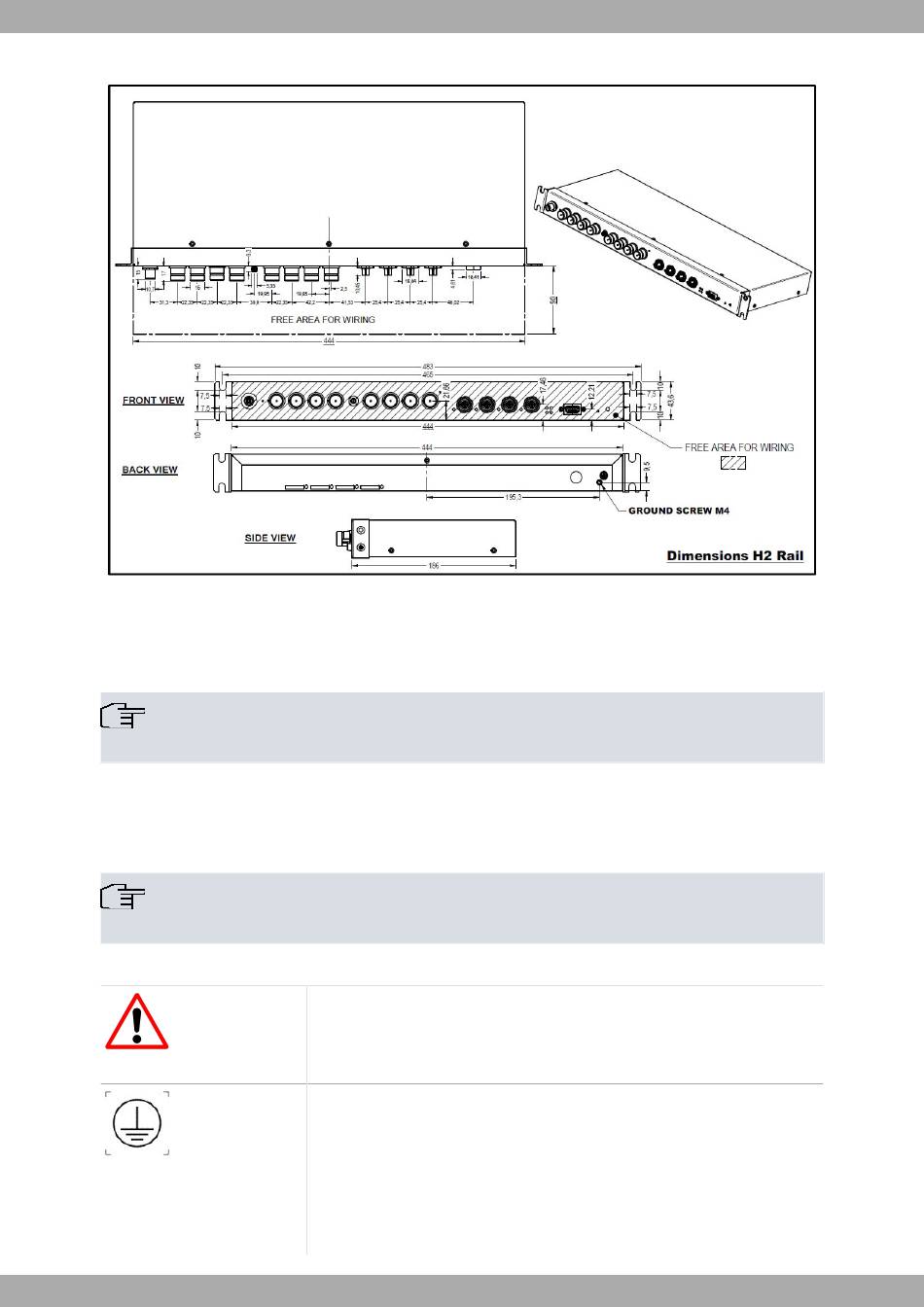

Outline drawing
Fig. 6:

3.3 Power source

Note
Please read the following instructions carefully before connecting the router!

3.3.1 Connecting the power supply

Depending on the model, the Teldat H2 RAIL can be powered by a 110 V or 24 V nominal DC power source.
Note
Please check that the device's power input is compatible with your power supply.
There is no on/off switch or fuse. The power supply information is printed on a label on the rear of the device.
Teldat H2 RAIL
This equipment requires an external overcurrent protection device. To comply with
safety regulations, a 5.0 A time-lag fuse or a previously approved 1-amp thermo-
magnetic circuit breaker (ABB-S281-UC-K-1 or equivalent) must be installed in the
power line.
The H2 Rail has one earth terminal (on the rear panel). It must be grounded
through a cable with a section measuring, at least, 2 mm
This equipment must be grounded. Never deactivate the ground conductor or op-
erate the equipment in the absence of a properly installed ground conductor. Con-
tact the appropriate electrical inspection authority or an electrician if you are un-
certain that suitable grounding is available. When installing or replacing the unit,
the ground connection must always be established first and disconnected last.
3 Components and power supply
2
(AWG14).
