Installation and Assembly
4.6
4.6.1
The power supply and the signal output are located at the front side of the controller.

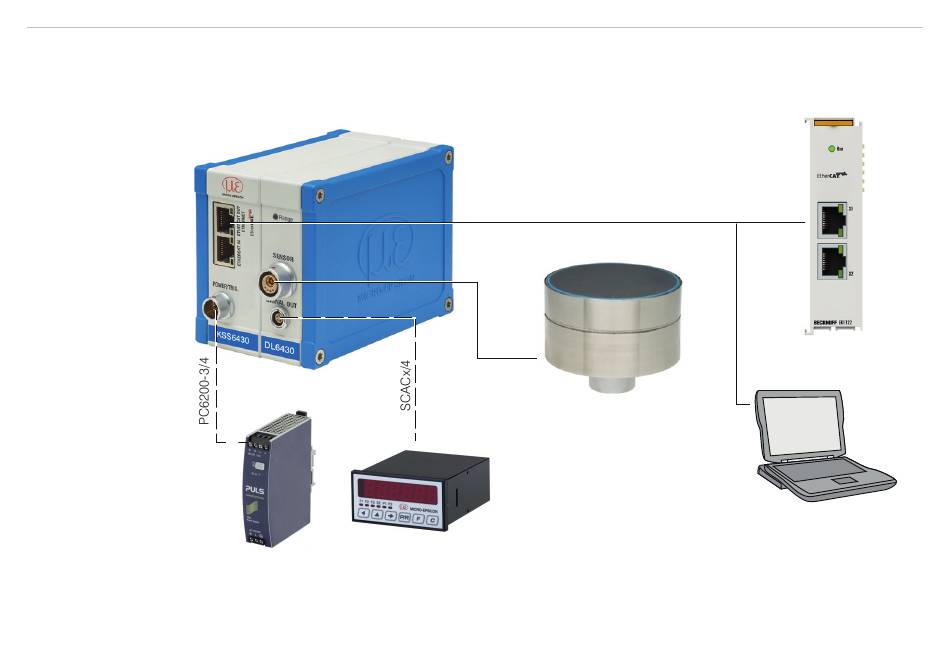

Fig. 11 Measuring system assembly
combiSENSOR 64x0
Electrical Connections
Connectivity Options
Controller
PS 2020
DDxx
LAN cable with RJ-45 connectors
KC1
Sensor
EtherCAT
SPS
Ethernet
PC
Page 23
