Sensor Cable; Kss64X0 Controller - MICRO-EPSILON combiSENSOR 64x0 Instruction Manual

Functional Principle, Technical Data
2.2.2
The sensor and controller are connected by a special, double screened, 1 m (3 ft) long sensor cable KC1.
A damaged cable can not be repaired. The sensor cable is not suitable for cable carriers. Minimum bending
radius: 20 mm (once), 80 mm (permanently).
i
2.2.3
The controller contains an oscillator and
a signal conditioning electronics for the
sensor. The capacitive and eddy current
part of the sensor are synchronized with
each other.
combiSENSOR 64x0

Sensor Cable

Do not shorten or lengthen these special sensor cable. Do not crush the sensor cable. Do not modify
the sensor cable. This leads to a loss of functionality or of the specified technical data.
Install the sensor cable in a protected area.
Switch off the power supply of the controller, when plugging and removing connectors.

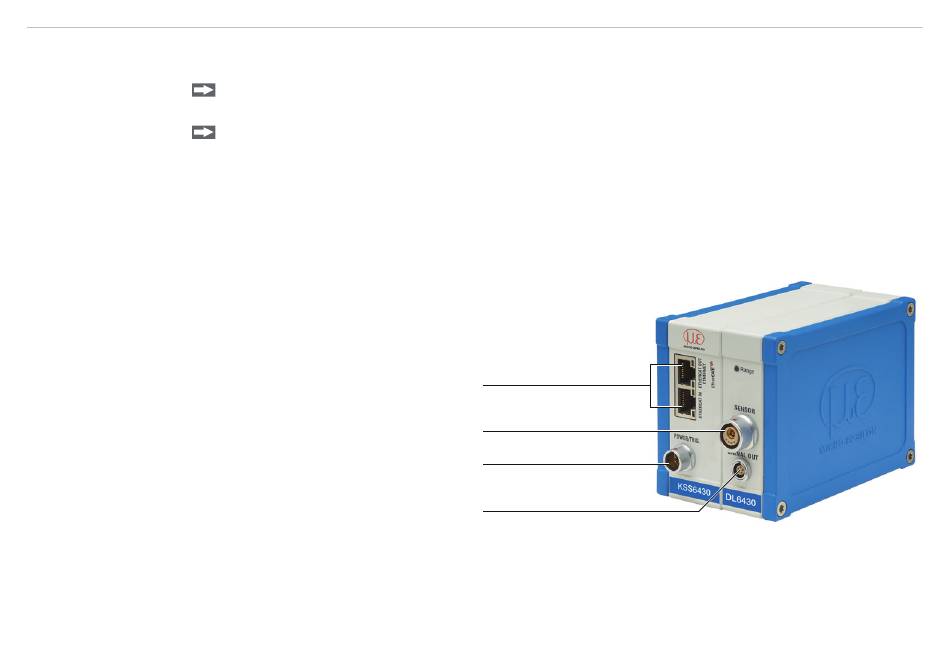

KSS64x0 Controller

Ethernet / EtherCAT
Sensor
Power supply, Trigger In
Eddy and capa signal
differential and temperature signal
Fig. 4 Controller measuring system
Page 14
