Installation and Assembly
4.3
The sensor cable connects the sensor with the controller.
The connection is made by simple plugging. The connector locks automatically. The tight fit can be checked
by pulling the connector housing (cable bushing).
i
Legend
mm (inches)

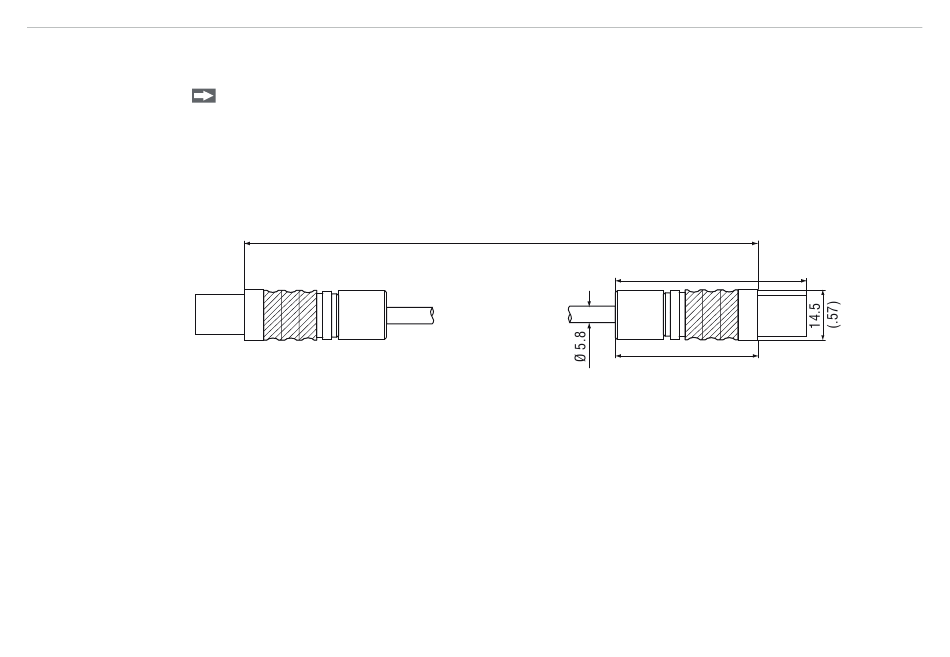

Fig. 8 Dimensions sensor cable
combiSENSOR 64x0
Sensor Cable
Connect the sensor to the controller by the sensor cable.
A damaged cable cannot be repaired.
1000 (39.4) ±1 %
appr. 50 (2.0)
appr. 38 (1.5)
Page 19
