Pin Assignment Supply, Trigger; Analog Output - MICRO-EPSILON combiSENSOR 64x0 Instruction Manual

Installation and Assembly
4.6.2
PIN
1
2
3
4
shield
PC6000-3/4 is a 3 m (13.12 ft) long, pre-assembled power
supply and trigger cable.
4.6.3

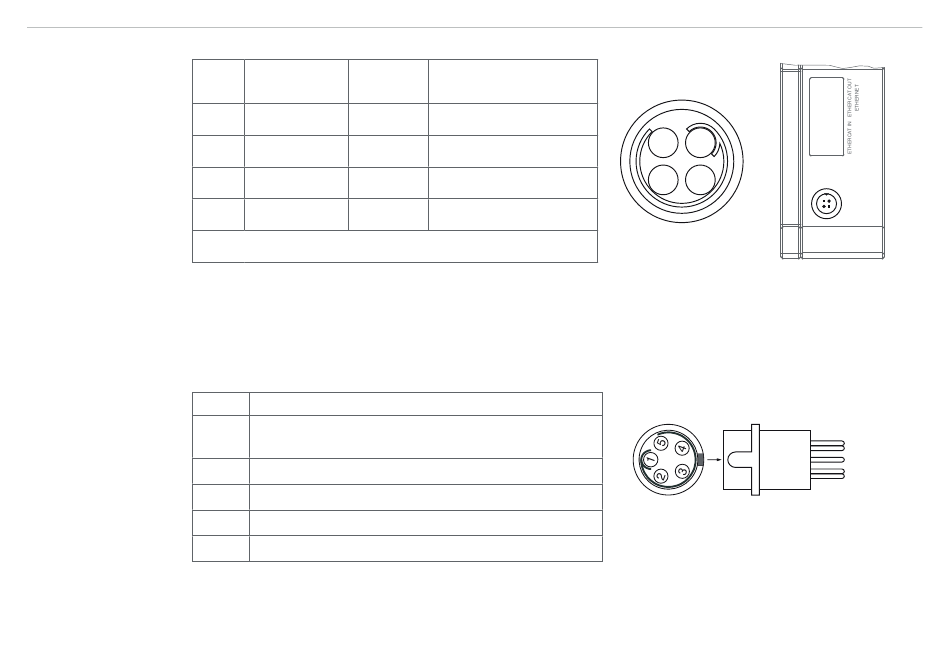

The signals are output via the 5-pin built-in female connector. See the drawing and table for the pin assign-
ment.
PIN
1
2
3
4
5
combiSENSOR 64x0

Pin Assignment Supply, Trigger

Color Signal
PC6200-3/4
brown +24VIN
white Zero VIN
yellow TRI_IN+
green TRI_IN-

Analog Output

Assignment
Differential signal 0 ... 10 V
(eddy current - capacitive signal) or thickness
Capacitive signal 0 ... 10 V
Eddy current signal 0 ... 10 V
Sensor temperature signal, not scaled
GND
Description
+24 VDC Supply
GND Supply
Trigger IN+, TTL level
Trigger IN-
View on solder pin side,
4 1
3 2
Power supply input
4-pole ODU female on controller, 4-pole
cable connector male cable connector
Solder pin side
male cable connector
POWER/TRIG.
KSS6430
Page 24
