Installation and Assembly

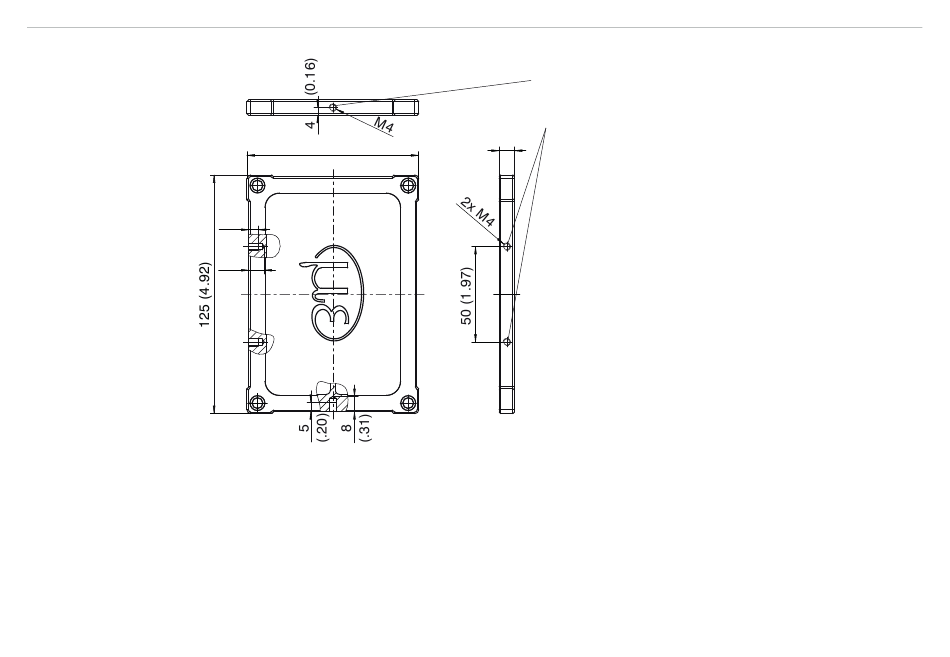

Fig. 10 Dimensional drawing housing cover
Dimensions in mm (inches), not to scale
The controller is mounted using mounting plates or holding clamps for a mounting on DIN-rail which are
included with the conversion kit supplied.
combiSENSOR 64x0
90 (3.54)
5
(.20)
8
(.31)
Mounting hole M4 for
wall fastening respectively
mounting on DIN-rail
8 (.31)
Page 21
