Features - Extron electronics MKP 2000 User Manual

MKP 2000
Figure 2.

Features

•
•
•
•
•
•
•
•
•
•
•
MKP 2000
1 2 3
4 5 6
INPUT OUTPUT
7 8 9
1 2 3
BACK 0 CANCEL TAKE
4 5 6
7 8 9 INPUT OUTPUT
BACK 0 CANCEL TAKE
MKP 2000
MKP 2000
MKP 2000
1 2 3
4 5 6 Ethernet
INPUT OUTPUT
7 8 9
BACK 0 CANCEL TAKE
MKP 2000
1 2 3
4 5 6
INPUT OUTPUT
7 8 9
BACK 0 CANCEL TAKE
MKP 2000
MKP 2000

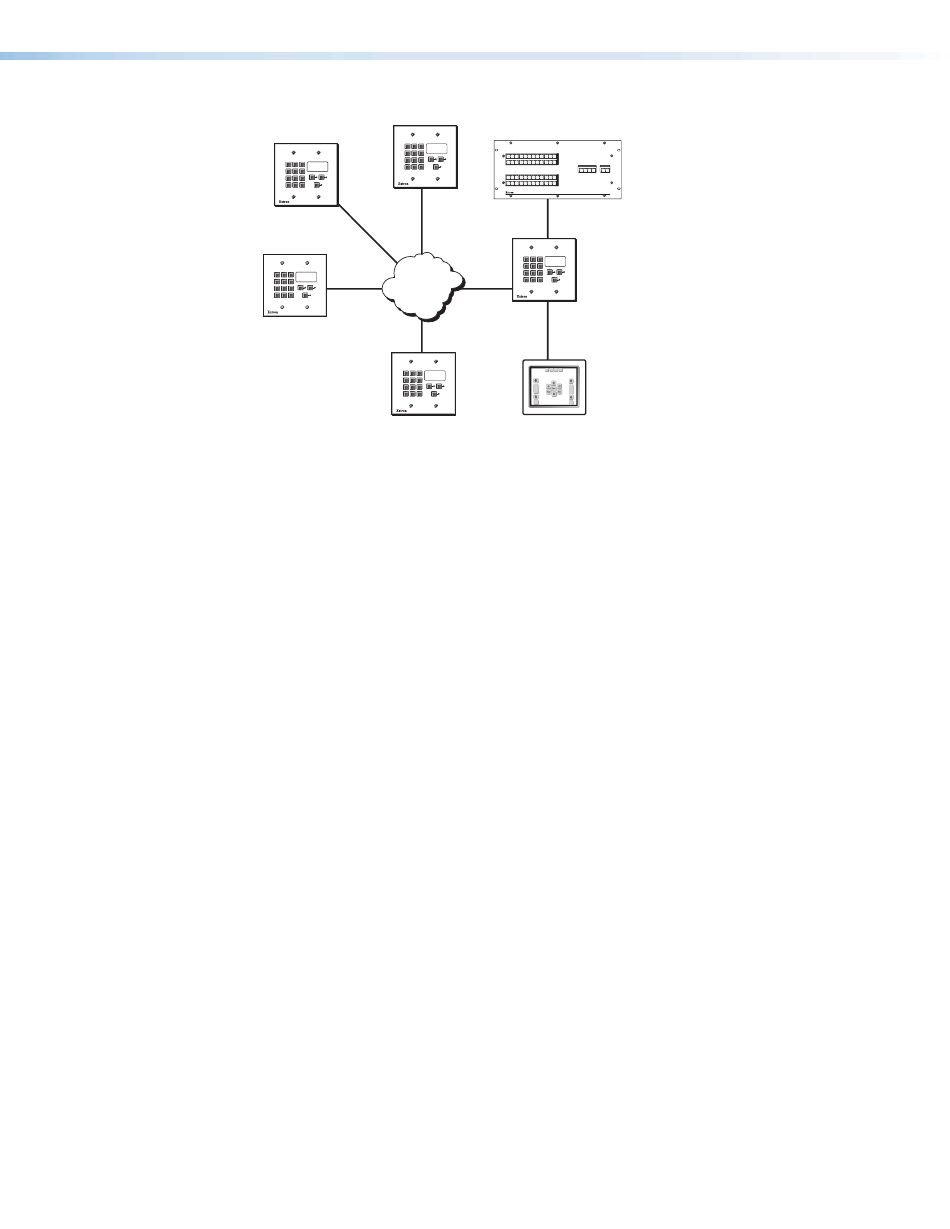

MKP 2000 Application Diagram
Compatible with most Extron RS-232 and Ethernet-enabled Matrix Switchers
— Remote control can be added to both new and existing Extron matrix switcher
installations.
10-key numeric keypad — Enables quick and easy creation of I/O ties.
Virtual I/O grouping — Each MKP 2000 can be configured with its own unique set of
inputs and outputs. By limiting user access to specific I/O ties, custom switching zones
can be easily created.
View last I/O tie — Allows the user to recall the most recent input or output selected
and view it on the MKP 2000 LED display.
RS-232 pass-through port — In addition to the primary RS-232 port for matrix
switcher communication, the MKP 2000 also includes a second RS-232 pass-through
port. This provides a convenient communication path when a control system is used in
conjunction with the MKP 2000.
Unlimited control points — Multiple MKP 2000s can be added to the matrix system,
providing convenient points of control from virtually any location.
Integrated web server — The MKP 2000 can be easily configured through its
Ethernet port, using a web browser such as Microsoft Internet Explorer.
Supports I/O sizes up to 256 x 256 and larger — The MKP 2000 can switch both
physical and virtual I/Os on large switchers such as the Extron Matrix 12800.
Versatile mounting options — The MKP 2000 is mounted to a two-gang wall plate
that can be installed on a conference table or podium, or in a wall, using any standard,
2.5-inch deep, two-gang masonry or surface mount box.
External Extron Everlast power supply included — Provides worldwide power
compatibility with high-demonstrated reliability and low power consumption.
Extron Everlast Power Supply is covered by a 7-year parts and labor warranty.
Matrix Switcher
1 2 3 4 5 6 7 8 9 10 11 12 I
N
P
U
13 14 15 16 17 18 19 20 21 22 23 24 T
S
CONTROL I/O
O
1 2 3 4 5 6 7 8 9 10 11 12
U
T
P
13 14 15 16 17 18 19 20 21 22 23 24 U
T
S
MAV 2400 SERIES SWITCHER
Switcher
RS-232 Port
1 2 3
4 5 6
INPUT OUTPUT
7 8 9
BACK 0 CANCEL TAKE
Ethernet
MKP 2000
MKP 2000
Host
RS-232 Port
Control
System
MKP 2000 • Introduction 3
