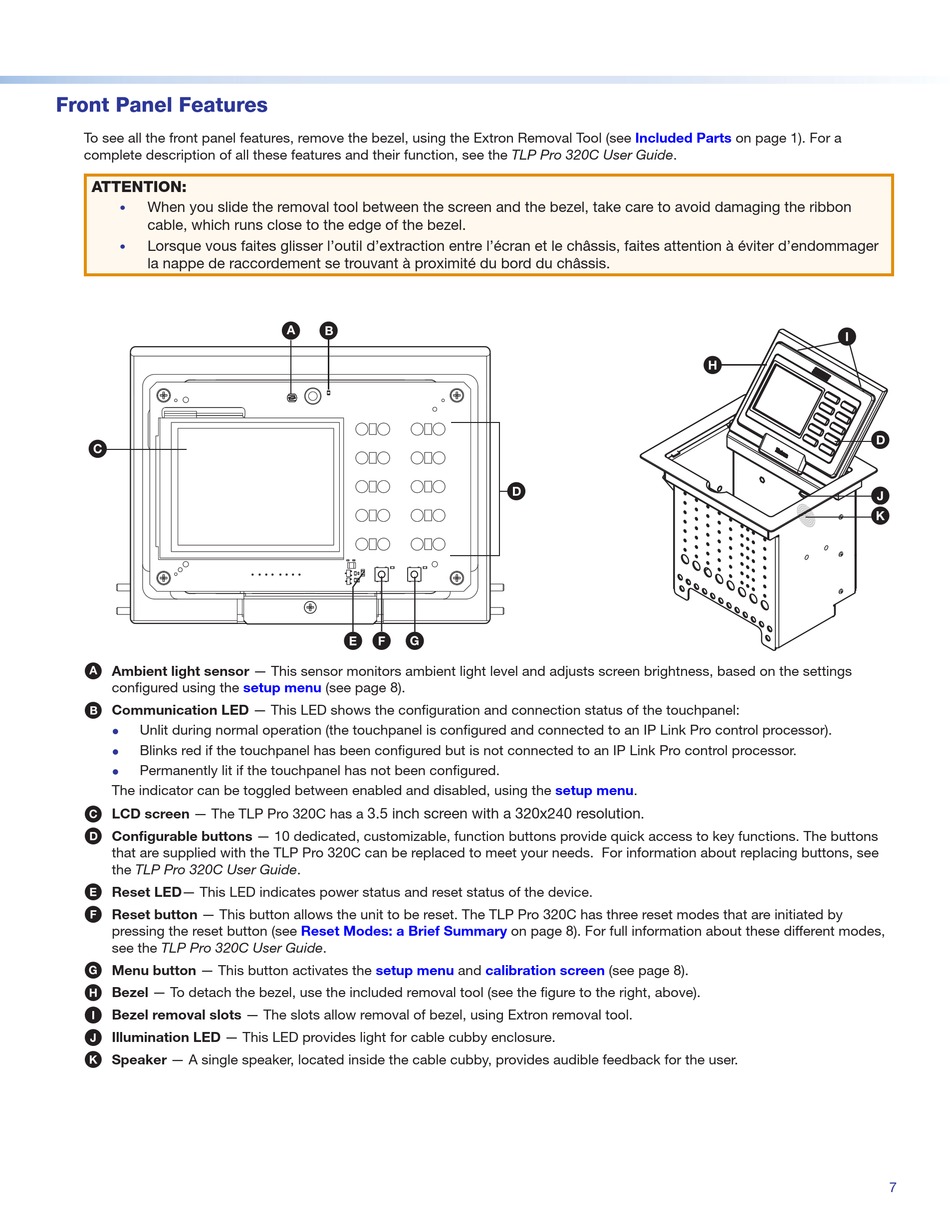

Front Panel Features

To see all the front panel features, remove the bezel, using the Extron Removal Tool (see
complete description of all these features and their function, see the TLP Pro 320C User Guide.
ATTENTION:
When you slide the removal tool between the screen and the bezel, take care to avoid damaging the ribbon
•
cable, which runs close to the edge of the bezel.
Lorsque vous faites glisser l'outil d'extraction entre l'écran et le châssis, faites attention à éviter d'endommager
•
la nappe de raccordement se trouvant à proximité du bord du châssis.
C C
Ambient light sensor — This sensor monitors ambient light level and adjusts screen brightness, based on the settings
A
configured using the
Communication LED — This LED shows the configuration and connection status of the touchpanel:
B
Unlit during normal operation (the touchpanel is configured and connected to an IP Link Pro control processor).
Blinks red if the touchpanel has been configured but is not connected to an IP Link Pro control processor.
Permanently lit if the touchpanel has not been configured.
The indicator can be toggled between enabled and disabled, using the
C LCD screen — The TLP Pro 320C has a
Configurable buttons — 10 dedicated, customizable, function buttons provide quick access to key functions. The buttons
D
that are supplied with the TLP Pro 320C can be replaced to meet your needs. For information about replacing buttons, see
the TLP Pro 320C User Guide.
Reset LED— This LED indicates power status and reset status of the device.
E
Reset button — This button allows the unit to be reset. The TLP Pro 320C has three reset modes that are initiated by
F
pressing the reset button (see
see the TLP Pro 320C User Guide.
Menu button — This button activates the
G
H Bezel — To detach the bezel, use the included removal tool (see the figure to the right, above).
Bezel removal slots — The slots allow removal of bezel, using Extron removal tool.
I
Illumination LED — This LED provides light for cable cubby enclosure.
J
K Speaker — A single speaker, located inside the cable cubby, provides audible feedback for the user.
A A B B
E E F F G G
setup menu (see page 8).
3.5 inch screen with a 320x240 resolution
Reset Modes: a Brief Summary
setup menu
Included Parts
D D
setup menu.
on page 8). For full information about these different modes,
calibration screen
and (see page 8).
Product Category
on page 1). For a
H H
.
I I
D D
J J
K K
