User's Manual
ce-info@camboard.de

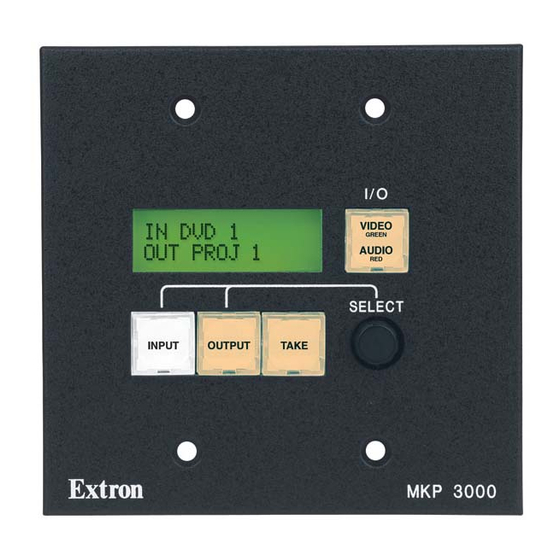

MKP 3000
Remote Control Panel
68-1069-01 Rev. B
01 07
Advertisement
Table of Contents
Related Manuals for Extron electronics MKP 3000
Summary of Contents for Extron electronics MKP 3000
- Page 1 Chiyoda-ku, Tokyo 102-0082 68-1069-01 Rev. B 800.633.9876 714.491.1500 +800.3987.6673 +31.33.453.4040 +800.7339.8766 +65.6383.4400 Japan 01 07 FAX 714.491.1517 FAX +31.33.453.4050 FAX +65.6383.4664 +81.3.3511.7655 FAX +81.3.3511.7656 www.extron.com www.camboard.de Tel. 07131 911201 ce-info@camboard.de © 2007 Extron Electronics. All rights reserved. Fax 07131 911203...
- Page 2 Sie verbrauchte Batterien bitte gemäß den Herstelleranweisungen. Keine Zusatzgeräte • Verwenden Sie keine Werkzeuge oder Zusatzgeräte, particular use. In no event will Extron Electronics be liable for direct, indirect, or die nicht ausdrücklich vom Hersteller empfohlen wurden, da diese eine Gefahrenquelle darstellen können.
- Page 3 im Vertrieb von CAMBOARD Electronics www.camboard.de Tel. 07131 911201 ce-info@camboard.de Fax 07131 911203...
- Page 4 Vertrieb von CAMBOARD Electronics Precautions, cont’d Quick Start Guide — MKP 3000 Install and set up the MKP 3000 as follows: Step 1 Turn all of the equipment off or disconnect it from its power source. Step 2 Install the cables to and from the control panel in a wall, podium, or desk.
-
Page 5: Table Of Contents
Setup procedures diagram ..........3-13 Control panel security lockout (executive mode) ....3-15 www.camboard.de Tel. 07131 911201 ce-info@camboard.de MKP 3000 Remote Control Panel • Quick Start Guide QS-2 MKP 3000 Remote Control Panel • Table of Contents Fax 07131 911203... - Page 6 ............... 5-9 68-1069-01 B Front Panel Configuration Lock settings ....5-9 01 07 www.camboard.de Tel. 07131 911201 ce-info@camboard.de MKP 3000 Remote Control Panel • Table of Contents MKP 3000 Remote Control Panel • Table of Contents Fax 07131 911203...
-
Page 7: Chapter 1 • Introduction
CAMBOARD Electronics Table of Contents, cont’d MKP 3000 Remote Control Panel Chapter One Introduction About this Manual About the MKP 3000 Remote Control Panels www.camboard.de Tel. 07131 911201 ce-info@camboard.de MKP 3000 Remote Control Panel • Table of Contents Fax 07131 911203... -
Page 8: About This Manual
Input About the MKP 3000 Remote Control Panels I / O SELECT You can create ties on the MKP 3000 in two modes: matrix mode (the default) and input-only mode. In matrix mode, you specify MKP 3000 Extron MKP 3000 Keypad an input and one or more outputs to be tied to it. -
Page 9: Application Diagram
Vertrieb von CAMBOARD Electronics Introduction Application diagram Figure 1-2, below, shows an example of how the MKP 3000 can be connected to a matrix switcher and other Extron products. Extron MKP 10 MAAP Accessory 10-Key V SE Keypad SETU... -
Page 10: Mkp Installation Overview
Extron The following Underwriters Laboratories (UL) requirements recommends that only UL Listed electrical pertain to the installation of the MKP 3000 into a wall or boxes be used. See “UL Requirements for Wall furniture (figure 2-1). Box Installation,” on the next page. -
Page 11: Preparing The Site And Installing The Mounting Bracket (Mud Ring) Or Wall Box
To meet UL listing requirements, the MKP must be Cut out the wall or furniture material from the marked installed in a wall box. area. www.camboard.de Tel. 07131 911201 ce-info@camboard.de MKP 3000 Remote Control Panel • Installation MKP 3000 Remote Control Panel • Installation Fax 07131 911203... -
Page 12: Mounting The Mkp To The Mounting Bracket (Mud Ring) Or Wall Box
If the installation involves an MKP 3000 MAAP and an If attaching the wall box to metal studs or furniture, use optional MKP 10 MAAP remote keypad, mount the... -
Page 13: Rear Panel And Side Panel Connections
Transmit data RS-232 Receive data SWITCH Signal ground RS-232 Figure 2-6 — MKP 3000 rear and side panels Figure 2-8 — RS-232 connector www.camboard.de Tel. 07131 911201 ce-info@camboard.de MKP 3000 Remote Control Panel • Installation MKP 3000 Remote Control Panel • Installation... -
Page 14: Control Connections
The additional (secondary) MKPs are connected to the primary MKP via the primary MKP’s Ethernet port. Figure 2-9 shows an MAAP Opening (MKP 3000 MAAP) — The MKP 3000 MAAP example of this type of configuration. has a space that allows the installation of up to four optional An MKP control panel can be directly connected to any mini architectural adapter plates (MAAPs). -
Page 15: Rs-232 Cable Termination
100Base-T Fast Ethernet requires CAT 5e UTP or STP Figure 2-12 — RJ-45 connector and pinout tables cable as a minimum www.camboard.de Tel. 07131 911201 ce-info@camboard.de 2-12 MKP 3000 Remote Control Panel • Installation MKP 3000 Remote Control Panel • Installation 2-13 Fax 07131 911203... -
Page 16: Power Supply Wiring
– – Mounting the MKP 10 MAAP – – The MKP 3000 MAAP has a space that allows the installation of – – up to four optional mini architectural adapter plates. This space Figure 2-13 — RS-232 cross-connection table is typically filled by an optional four space MKP 10 MAAP keypad (figure 2-15). - Page 17 Vertrieb von CAMBOARD Electronics Installation, cont’d Extron Figure 2-17 — MKP 3000 MAAP rear panel with MKP 10 MKP 10 MAAP mounted Front Panel MKP 10 MAAP J1 control connector I / O MKP 3000 MAAP Remote Keypad port Mount the MKP 3000 MAAP (with the mounted MKP 10 MAAP) to the wall box or mounting bracket.
-
Page 18: Chapter 3 • Local Operation
MKP 3000 Remote Control Panel Chapter Three Local Operation Front Panel Controls and Indications Front Panel Operations Rear Panel Resets MKP 10 MAAP Operation www.camboard.de Tel. 07131 911201 ce-info@camboard.de 2-18 MKP 3000 Remote Control Panel • Installation Fax 07131 911203... -
Page 19: Front Panel Controls And Indications
The labels in these buttons can be removed and replaced to then taking (commanding) the tie. The MKP 3000 can also reflect the function of the button. A sheet of labels is provided operate in input-only mode, in which you can view the current with the MKP. -
Page 20: Changing The Tie Mode
Changing the tie mode entered input is tied unless a different output is You can create ties on the MKP 3000 in the following modes: assigned [see steps 4 and 5]). •... -
Page 21: Creating A Tie In Input-Only Mode
On the MKP 10 MAAP keypad, press the desired output number. • If it was lit, the Output button turns off. Press Take. www.camboard.de Tel. 07131 911201 ce-info@camboard.de MKP 3000 Remote Control Panel • Local Operation MKP 3000 Remote Control Panel • Local Operation Fax 07131 911203... -
Page 22: Viewing Ties
Press and hold the Output button until the button lights connected matrix switcher to create presets. green to indicate view mode (approximately 2 seconds), then release the button. • Presets must be named in the MKP 3000 to be ™ recallable. See chapter 4, “SIS Operation,” and •... -
Page 23: Viewing And Configuring The Ip And Mkp Setup Parameters
LCD backlit through) (default = no pass-through) duration, as shown in figure 3-6. www.camboard.de Tel. 07131 911201 ce-info@camboard.de 3-10 MKP 3000 Remote Control Panel • Local Operation MKP 3000 Remote Control Panel • Local Operation 3-11 Fax 07131 911203... -
Page 24: Host Control Port Setting And Pass-Through Communications
MKP redirects valid matrix switcher SIS commands that it receives on its Host RS-232 port to its Switcher RS-232 port. www.camboard.de Tel. 07131 911201 ce-info@camboard.de 3-12 MKP 3000 Remote Control Panel • Local Operation MKP 3000 Remote Control Panel • Local Operation 3-13 Fax 07131 911203... -
Page 25: Control Panel Security Lockout (Executive Mode)
INPUT OUTPUT TAKE 254.253 The MKP 3000 provides the following three levels of front panel Press button 3 to cycle through the security lockout (executive modes): selected ( > ) and editable octets. Panel Locked mode — All front panel controls are locked. -
Page 26: Rear Panel Resets
Events seconds press and For an an MKP 3000 connected to an MKP 10 MAAP: (Mode 3) release again. Reset On the MKP 10 MAAP, press and hold the 1, 3, Back, and Cancel buttons until the MKP 3000 LCD window displays... -
Page 27: Mkp 10 Maap Operation
MKP 10 MAAP. Host-to-MKP Instructions Cancel key — Press and release the Cancel key to reset the selected input or output value shown in the MKP 3000’s LCD MKP-Initiated (Unsolicited) Messages display to 000 before using the numeric keys ( ) to enter a specific value. -
Page 28: Rs-232 Links
Pass-through mode. MKP responds by sending a message to the host. The MKP- initiated messages are listed below (underlined). (c) Copyright 2006, Extron Electronics, MKP 3000 LCD Keypad, Vx.xx, 60-710-00 (for RS-232 connection) (c) Copyright 2006, Extron Electronics, MKP 3000 LCD Keypad,... -
Page 29: Mkp Error Responses
E24 — Privilege violation (Ethernet, Extron software only) E99 — Invalid or no response from target switcher www.camboard.de Tel. 07131 911201 ce-info@camboard.de ™ ™ MKP 3000 Remote Control Panel • SIS Operation MKP 3000 Remote Control Panel • SIS Operation Fax 07131 911203... -
Page 30: Symbol Definitions
11 = user password assigned minutes removed from GMT 12 = administrator password assigned www.camboard.de Tel. 07131 911201 ce-info@camboard.de ™ ™ MKP 3000 Remote Control Panel • SIS Operation MKP 3000 Remote Control Panel • SIS Operation Fax 07131 911203... - Page 31 2 = Panel locked = Tie mode 0 = Matrix mode 1 = Input-only mode www.camboard.de Tel. 07131 911201 ce-info@camboard.de ™ ™ MKP 3000 Remote Control Panel • SIS Operation MKP 3000 Remote Control Panel • SIS Operation Fax 07131 911203...
- Page 32 Vertrieb von CAMBOARD Electronics ™ Operation, cont’d www.camboard.de Tel. 07131 911201 ce-info@camboard.de ™ ™ 4-10 MKP 3000 Remote Control Panel • SIS Operation MKP 3000 Remote Control Panel • SIS Operation 4-11 Fax 07131 911203...
- Page 33 Vertrieb von CAMBOARD Electronics ™ Operation, cont’d www.camboard.de Tel. 07131 911201 ce-info@camboard.de ™ ™ 4-12 MKP 3000 Remote Control Panel • SIS Operation MKP 3000 Remote Control Panel • SIS Operation 4-13 Fax 07131 911203...
- Page 34 Vertrieb von CAMBOARD Electronics ™ Operation, cont’d www.camboard.de Tel. 07131 911201 ce-info@camboard.de ™ ™ 4-14 MKP 3000 Remote Control Panel • SIS Operation MKP 3000 Remote Control Panel • SIS Operation 4-15 Fax 07131 911203...
-
Page 35: Chapter 5 • Html Operation
Downloading the Startup Page Viewing System Status Using the Configuration Pages Using the File Management Page Saving and Restoring a Configuration Special Characters www.camboard.de Tel. 07131 911201 ce-info@camboard.de ™ 4-16 MKP 3000 Remote Control Panel • SIS Operation Fax 07131 911203... - Page 36 “index.html,” the MKP downloads “index.html” as If you want the browser to display a page other than the the default startup page. MKP 3000 Web page (such as a custom page that you have • If neither of the above conditions is true, the MKP...
-
Page 37: Viewing System Status
To access the System Status page from other MKP HTML web pages, click the Status tab. This page shows only the current status of the MKP 3000. To change any of this information, select the Configuration tab to display the System Settings page. -
Page 38: Ip Settings Section
In this section, you enter all IP-related information for your A subnet is a subset of a network – a set of IP devices that have MKP 3000. After making all desired changes to the fields in this portions of their IP addresses in common. The Subnet Mask... -
Page 39: Host Control Port Settings
In this section, select the desired radio button to specify the input/output matrix, the LED display shows if you mode in which the MKP 3000 will create input/output ties. attempt to tie to an input or output outside the available range for this MKP or the connected matrix switcher, •... -
Page 40: Date/Time Settings Fields
Click Submit to confirm your settings. (To reject the changes and restore the previous settings, click Cancel.) www.camboard.de Tel. 07131 911201 ce-info@camboard.de 5-10 MKP 3000 Remote Control Panel • HTML Operation MKP 3000 Remote Control Panel • HTML Operation 5-11 Fax 07131 911203... -
Page 41: Passwords Page
When clicked, the Video button turns green; the Audio button turns red. www.camboard.de Tel. 07131 911201 ce-info@camboard.de 5-12 MKP 3000 Remote Control Panel • HTML Operation MKP 3000 Remote Control Panel • HTML Operation 5-13 Fax 07131 911203... -
Page 42: Preset Names Page
Refer to the manual for the connected you entered, click Cancel. matrix switcher to create presets. • Presets must be named on the MKP 3000 to be Repeat steps 1 through 3 for each additional preset that recallable. -
Page 43: Firmware Upgrade Page
MKP 3000 On the Firmware Upgrade page, click the Upload button • MKP 3000 product page > Downloads > MKP 3000 (in to start the update process. the FIRMWARE section) The firmware upload to the MKP may take several Select the latest firmware file for the MKP and download minutes. -
Page 44: Updating The Firmware Using A Direct Computer-To-Mkp Connection
The Network Connections window opens. Right click on Local Area Connection, and select Properties from the pop-up menu. www.camboard.de Tel. 07131 911201 ce-info@camboard.de 5-18 MKP 3000 Remote Control Panel • HTML Operation MKP 3000 Remote Control Panel • HTML Operation 5-19 Fax 07131 911203... -
Page 45: Using The File Management Page
The File Management page (figure 5-11) lets you upload files to these steps: the MKP 3000 from your computer or network, and to delete files from the unit. You can also upload personalized Web pages Enter the directory name in the Dir: field, following the or event files to the MKP via this screen. -
Page 46: Restoring A Configuration
File Management folder, skip to step 2. As... from the pop-up menu (figure 5-14). www.camboard.de Tel. 07131 911201 ce-info@camboard.de 5-22 MKP 3000 Remote Control Panel • HTML Operation MKP 3000 Remote Control Panel • HTML Operation 5-23 Fax 07131 911203... -
Page 47: Special Characters
Cannot end with a dash Mounting and Cabling Specifications These guidelines do not apply to input, output, and preset names. Changing Button Labels www.camboard.de Tel. 07131 911201 ce-info@camboard.de 5-24 MKP 3000 Remote Control Panel • HTML Operation Fax 07131 911203... -
Page 48: Specifications
(6.7 cm H x 8.6 cm W x 5.1 cm D) Allow at least 1" (2.5 cm) D for connectors and cable. (Depth excludes connectors.) www.camboard.de Tel. 07131 911201 ce-info@camboard.de MKP 3000 Remote Control Panel • Reference Information MKP 3000 Remote Control Panel • Reference Information Fax 07131 911203... -
Page 49: Part Numbers
MKP 3000 MAAP, RAL 9010 white 60-709-05 Bulk spools: Included parts 500 feet (152 m) 22-119-02 These items are included in each order for an MKP 3000: 1,000 feet (305 m) 22-119-03 Included parts Part number Optional accessories 12 VDC, 1A external power supply... -
Page 50: Mounting And Cabling Specifications
Figure A-1 shows the dimensions for cutting a hole to accommodate the keypad circuit board for mounting an MKP 3000 on a flat surface. This type of installation can include a desk or podium, or a control panel or dashboard, where the back is protected and does not require an electrical box. -
Page 51: Extron Comm-Link Control System Cable
Separate two Press the button into place in the piece button here. MKP. www.camboard.de Tel. 07131 911201 ce-info@camboard.de MKP 3000 Remote Control Panel • Reference Information Fax 07131 911203...
