Simultaneously press and hold
the Input, Output, and Take
buttons for 2 seconds.
INPUT OUTPUT
the buttons.
TAKE

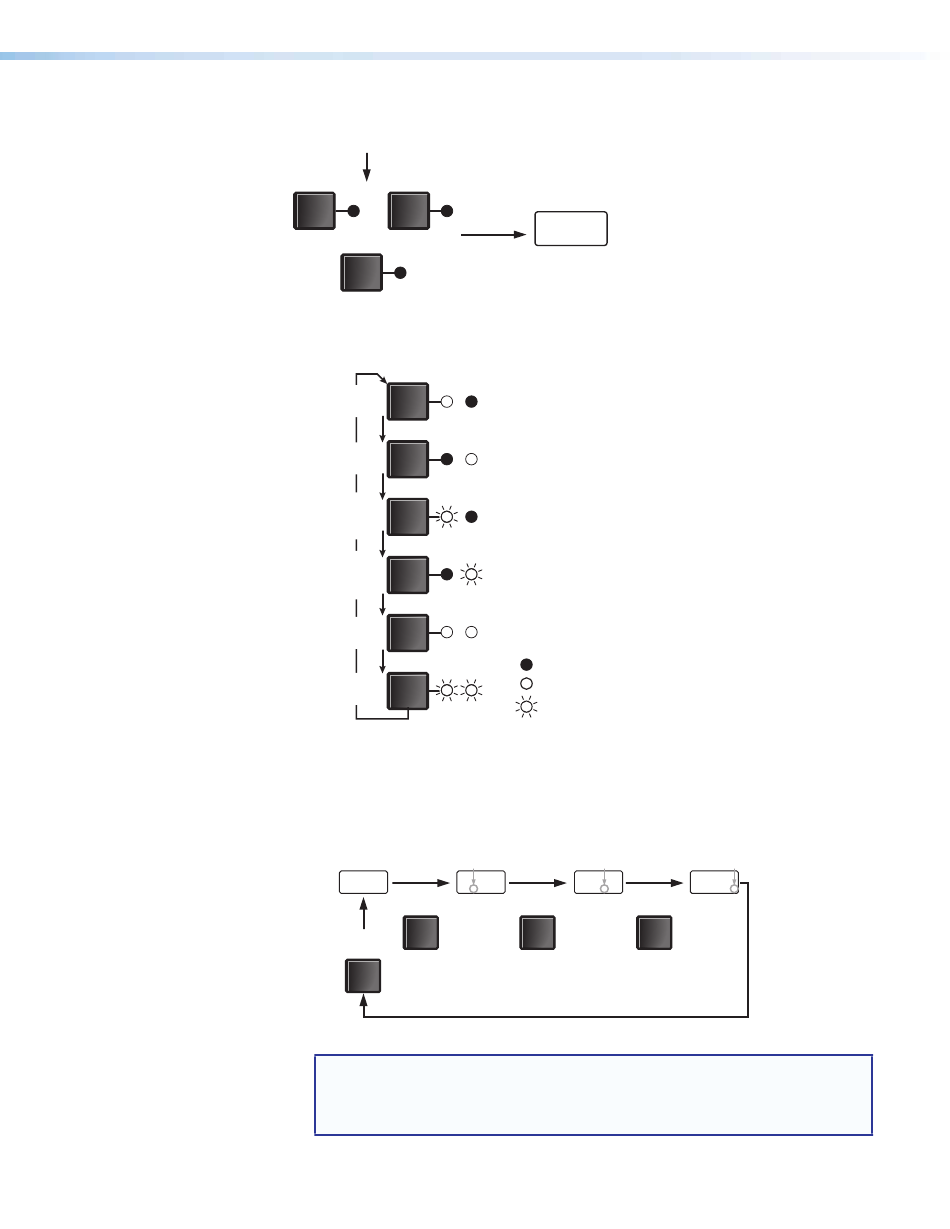

Figure 18. Selecting Setup Mode
Press the button to change the value shown in the LED display, cycling
• Input
through the various IP addresses and the host control settings (see figure 19).
INPUT
OUTPUT
MKP 2000
IP Address
INPUT
OUTPUT
MKP 2000
Subnet Mask
INPUT
OUTPUT
MKP 2000
Gateway
Address
INPUT
OUTPUT
Matrix
Switcher
IP Address
INPUT
OUTPUT
Host Control
Setting
INPUT
OUTPUT
Connection
Priority
Figure 19. Selecting Different Addresses
Press the button to change the octet of the selected IP address that
• Output
is shown in the LED display, or to switch between host control and primary or
secondary settings (see figure 20).
The LED display The LED display
shows the IP shows the
address's first octet. second octet.
No dot Dot
1 9 2 1 6 8
Press
OUTPUT
Press
OUTPUT
Figure 20. Selecting Octet Fields
NOTE: The position or absence of a dot (period) in the display indicates the
octet that is displayed. In the example in figure 20, the IP address is the MKP
default address,
192.168.254.253
edited when it is displayed.
Release
1 9 2
The LED display shows the
most-significant octet of the
MKP 2000 IP address.
The Input and Output
LEDs blink or light
steadily to indicate
the value shown in
the LED display.
= Unlit LED
= Lit LED
= Blinking LED
The LED display
shows the third
octet.
Dot
. 2 5 4 .
Press Press
OUTPUT OUTPUT
. Each octet of an IP address can be
The LED display
shows the fourth
octet.
Dot
2 5 3 .
