Extron electronics MMX 32 AAP Installation Manual

Connecting the control panel to an MMX 32 VGA MTP
See the drawing below. The wire connected to the 5 VDC pole
( on pages 2 and 3) should not be daisy chained. The power for
4
each AAP or MAAP must come directly from the +5V connector
for the appropriate output on the MMX switcher.
See the drawing below. The wire connected to the Ground pole
( on pages 2 and 3) should not be shared or jumpered between
5
two AAPs and/or MAAPs. Run a separate ground wire for each
AAP and/or MAAP. Use the drain wire of the cable for ground.
The drawing below shows a control panel wired to select the input
tied to MMX 32 VGA MTP output 1, using the Remote 1 captive
screw connector. To select the input tied to output 2, use the
Remote 2 captive screw connector.
INPUT 1
AUDIO
POWER
12V
0.5A MAX
AUDIO
INPUT 2
MMX 32 VGA MTP
Wiring diagram for a typical MMX 32 VGA MTP application
Recommended Cables
STP22P 1000' (305 m) Dual Plenum in self-dispensing box
STP22 1000' (305 m) Dual in self-dispensing box
Extron Electronics, USA Extron Electronics, Europe
1230 South Lewis Street Beeldschermweg 6C
Anaheim, CA 92805 3821 AH Amersfoort
USA The Netherlands
714.491.1500 +31.33.453.4040
www.extron.com Fax 714.491.1517 Fax +31.33.453.4050
© 2005 Extron Electronics. All rights reserved.
MMX 32 AAP
Extron
STP 22 Dual Plenum
Cable 22-162-03
INPUT 3 OUTPUT 2
AUDIO
1
RGB/AUDIO
AUDIO 1 2 3 +5V
L R
2
AUDIO
OUTPUT 1
22-162-03
22-160-03
Extron Electronics, Asia Extron Electronics, Japan
135 Joo Seng Road, #04-01 Kyodo Building
PM Industrial Building 16 Ichibancho
Singapore 368363 Chiyoda-ku, Tokyo 102-0082 Japan
+65.6383.4400 +81.3.3511.7655
Fax +65.6383.4664 Fax +81.3.3511.7656
Installation Guide
REMOTE
RS-232
Tx Rx

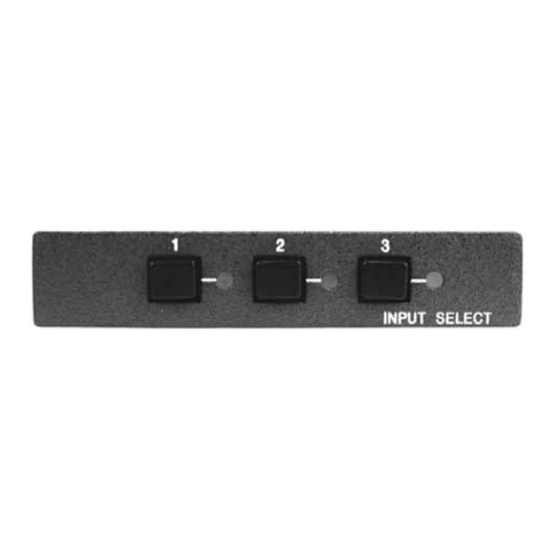

MMX 32 AAP and
Contact Closure Control Panels for the MMX 32 VGA A
MMX 32 MAAP
Mini Matrix Switcher
68-881-01 Rev. C
11 05
