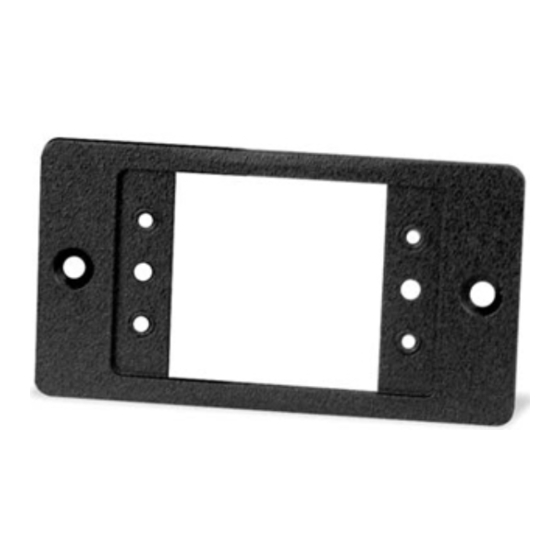

Extron AAP 100 and MAAP 100 Installation Guide

Installing the AAP 100 and MAAP 100

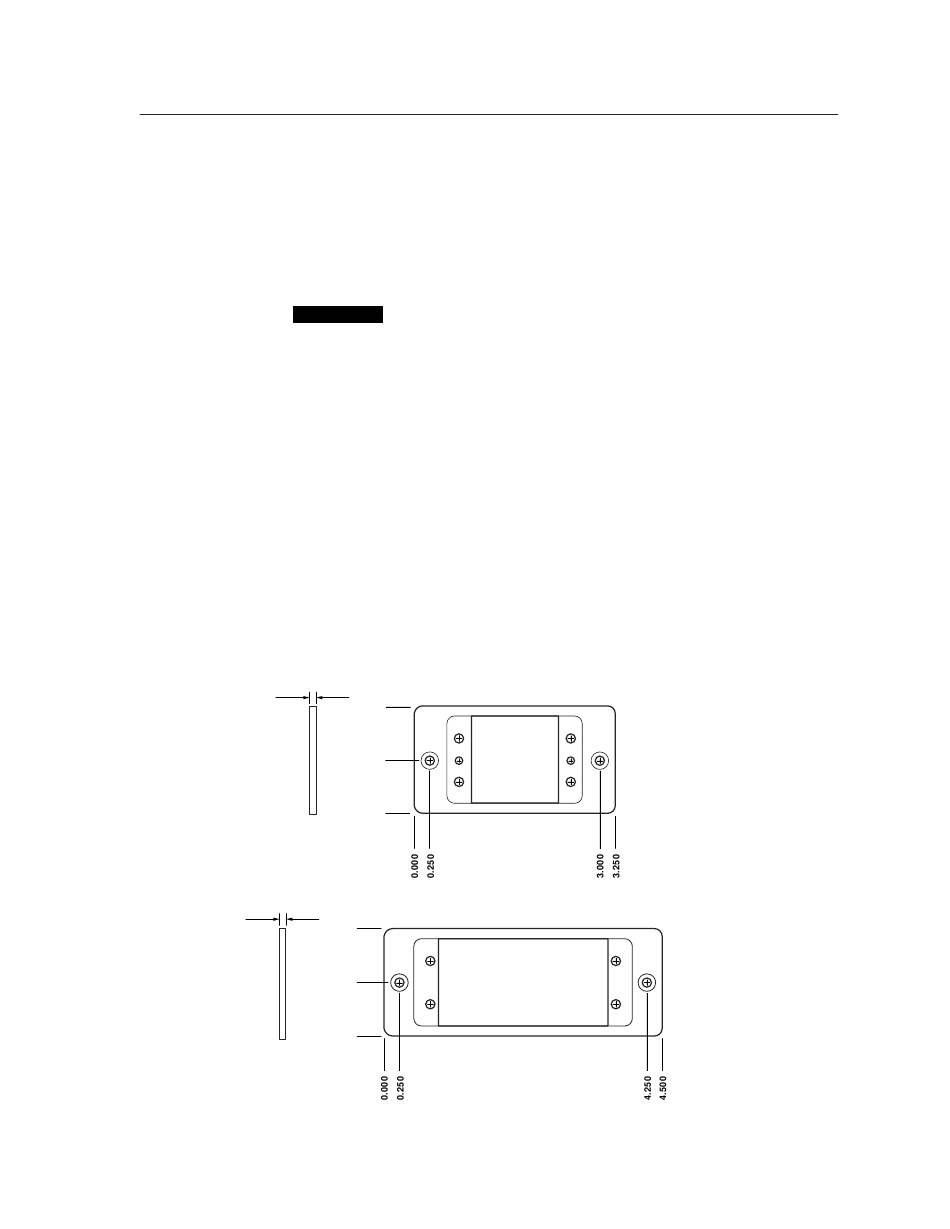

Product Dimensions

0.100
0.100
www.camboard.de
CAMBOARD Electronics
The following procedure is for mounting the AAP 100 and MAAP 100 panels on
hard surfaces (plywood, hardwood, etc.). For soft surfaces (particle board, drywall,
etc.), additional hardware such as anchors may be required (not provided).
1. Photocopy the appropriate full size rough-in template from the other side of
this page. Cut out the center portion of the template up to the dashed
guidelines.
Be sure to photocopy the template at exactly 100%. Using a template that
CAUTION
has been altered will cause you to cut an opening of the wrong size and
may result in permanent damage to the surface.
Place the template copy in the desired location on the installation surface.
2.
Use a soft pencil to mark the guidelines for the opening on the surface.
3. Use a jigsaw or small hand saw to carefully cut away the material within the
guidelines. Check the opening size by placing the panel against the opening.
If needed, use a saw, file, or sandpaper to enlarge the opening.
4. Cable the AAP(s)/MAAP(s) and install them on the panel.
5. Place the panel against the surface so that the AAP(s)/MAAP(s) fit into the
opening. Mark the locations of the two wall mounting holes on the surface.
6. If desired, remove the panel and drill ¼" deep pilot holes (half the width of
the shaft of the screw) at the marked locations. Replace the panel.
7. Use two ½" (1.3 cm) long, #6 flat headed wood screws (provided) to fasten
the panel directly onto the surface. Hand tighten the screws.
1.750
2 x 0.875
0.000
1.750
2 x 0.875
0.000
