Front Panel Lockout (Executive Mode)
When front panel lockout is on, all the buttons on the RCP 101 are disabled. To toggle between enabling or disabling front panel
lockout, press and hold the
As front panel lockout is enabled, all buttons and the red activity LED (
all the buttons and the green activity LED (
buttons blink three times.

RCP 101 Rear Panel Features

The back panel features of the RCP 101 EU and RCP 101 MK are identical (see
figure 2).
A Power input — The RCP 101 can be powered with the provided 12 VDC, 1.5 A
power supply or by connecting it to the SMP unit.
To power the unit with a power supply, connect the power supply to this input.
•
Ensure that the polarity of the wires is correct (figure 3,
stripped correctly (
To power the unit by connecting it to the SMP, use the provided cable to
•
connect this input to the 2-pin power connector on the rear panel of the SMP.
Smooth Ridges
1 1
A A
Power Supply
Output Cord

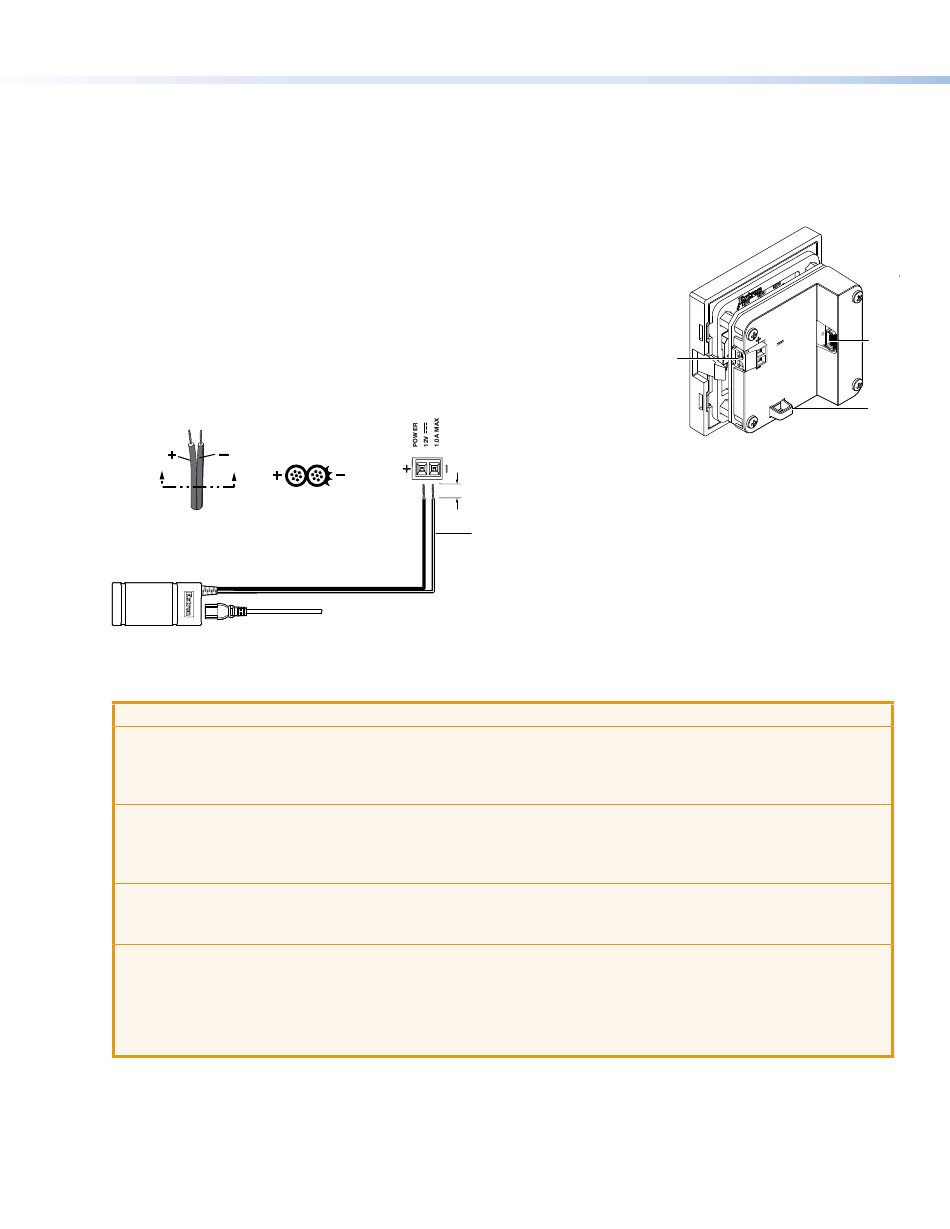

Connecting Power to the RCP 101
Figure 3.
ATTENTION:
• Always use a power supply supplied or specified by Extron. Use of an unauthorized power supply voids all
regulatory compliance certification and may cause damage to the supply and the unit.
• Utilisez toujours une source d'alimentation fournie par Extron. L'utilisation d'une source d'alimentation non
autorisée annule toute conformité réglementaire et peut endommager la source d'alimentation ainsi que l'unité.
• If not provided with a power supply, this product is intended to be supplied by a UL Listed power source marked
"Class 2" or "LPS" and rated output 12 VDC, minimum 1.0 A.
• Si ce produit ne dispose pas de sa propre source d'alimentation électrique, il doit être alimenté par une source
d'alimentation certifiée UL de classe 2 ou LPS et paramétré à 12 VDC et 1,0 A minimum.
• Unless otherwise stated, the AC/DC adapters are not suitable for use in air handling spaces or in wall cavities.
• Sauf mention contraire, les adaptateurs AC/DC ne sont pas appropriés pour une utilisation dans les espaces
d'aération ou dans les cavités murales.
• The installation must always be in accordance with the applicable provisions of National Electrical Code ANSI/
NFPA 70, article 725 and the Canadian Electrical Code part 1, section 16. The power supply shall not be
permanently fixed to building structure or similar structure.
• Cette installation doit toujours être en accord avec les mesures qui s'applique au National Electrical Code ANSI/
NFPA 70, article 725, et au Canadian Electrical Code, partie 1, section 16. La source d'alimentation ne devra pas
être fixée de façon permanente à une structure de bâtiment ou à une structure similaire.
B USB connector — Connect the RCP 101 to the SMP using the provided 15 foot (4.5 meter) USB mini B to USB type A
cable. Insert the USB mini B connector into the USB port on the RCP 101 rear panel. Connect the other end of the cable
to the control USB A port on the rear panel of the SMP. To increase the distance up to 300 feet (100 m), use an Extron
Extender Plus Series twisted pair extender (see www.extron.com).
C Cable anchor — Use a zip tie to secure the USB cable to this anchor.
2
Pause Mark
and buttons simultaneously for three seconds.
B ) blink three times. If a button is pressed while front panel lockout is enabled, all
2
).
SECTION A–A
Smooth
+12 VDC input
– Return
Ground
all Devices
B ) blink three times. As front panel lockout is disabled,
1
) and the wires are
Power Receptacle
3/16" 2 2
(5 mm) Max.
DC Power Cord
Ridged
R
W E
P O
A X
V
1 2
A M
A A 1 . 0
RCP 101 Rear Panel
Figure 2.
(Shown without Wallplate)
B B
C C
