Cabling and Features

Attach cables using the following wiring diagrams as a guide. Full details are available in the IPCP Pro Series User Guide.
ATTENTION:
• Installation and service must be performed by experienced personnel.
• L'installation et l'entretien doivent être effectués par du personnel expérimenté.

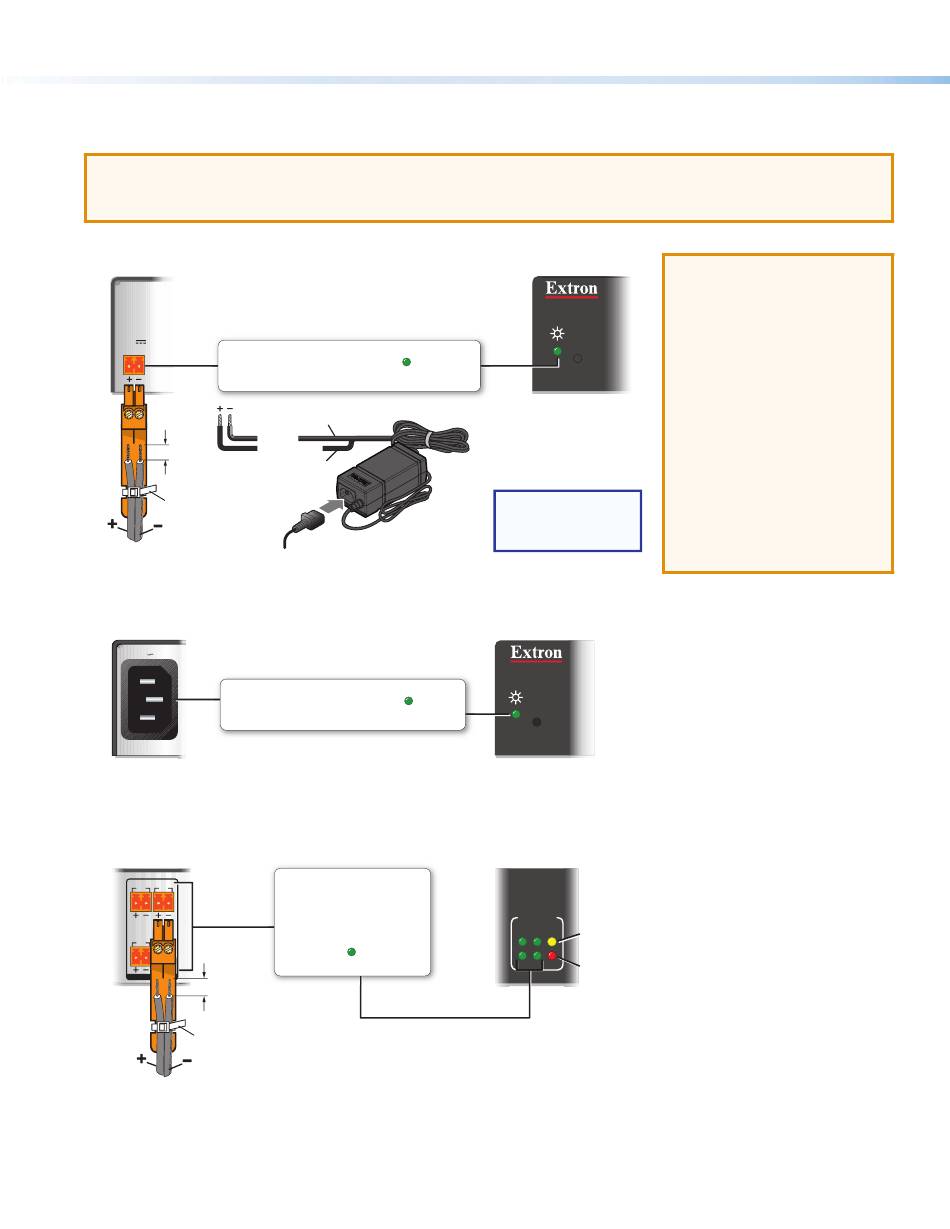

Power Input — External
POWER
12V
x.xA MAX
• Connect to
included 12 VDC
power supply.
3/16"
(5 mm)
Max.
Tie Wrap
Smooth Ridged
Power Input — Internal
100-240V 50-60Hz
• Connect to 100 to
240 VAC.
1.2A MAX
Rear Panel
Power Output — Switched 12 VDC Power Output
1 2
SWITCHED 12 VDC
40W MAX TOTAL
3 4
12 VDC 3/16"
(5 mm)
Rear
Max.
Panel
Tie Wrap
8
Power Input, External Power Supply
• Front panel LED ( ) blinks during
boot-up and remains lit when the
IPCP is powered and operational.
Ridged
– Return
+12 VDC input
Smooth
External
12 VDC
Power Supply
Power Input, Internal Power Supply
• Front panel LED ( ) blinks
during boot-up and remains lit
when the IPCP receives power.
Switched 12 VDC
Power Output
• Total output for all four ports
combined:
12 VDC, 40 watts (max.)
• Corresponding front panel
green LEDs ( ) light when
power is available at each port.
R
Front Panel
Ground
all devices.
NOTE: Check the polarity
of the power supply
before connecting it to
the IPCP.
R
Front Panel
SWITCHED
Lights if total power drawn
12 VDC
is 41-46 watts.
1 2 LIMIT
3 4 OVER
Lights if total power drawn
exceeds 47 watts.
Power output shuts off
Front
until the user corrects the
Panel
overload.
ATTENTION:
• Always use a power
supply supplied or
specified by Extron. Use
of an unauthorized power
supply voids all regulatory
compliance certification and
may cause damage to the
supply and the unit.
• Utilisez toujours une source
d'alimentation fournie par
Extron. L'utilisation d'une
source d'alimentation non
autorisée annule toute
conformité réglementaire et
peut endommager la source
d'alimentation ainsi que
l'unité.
