Installation and Operation, cont'd

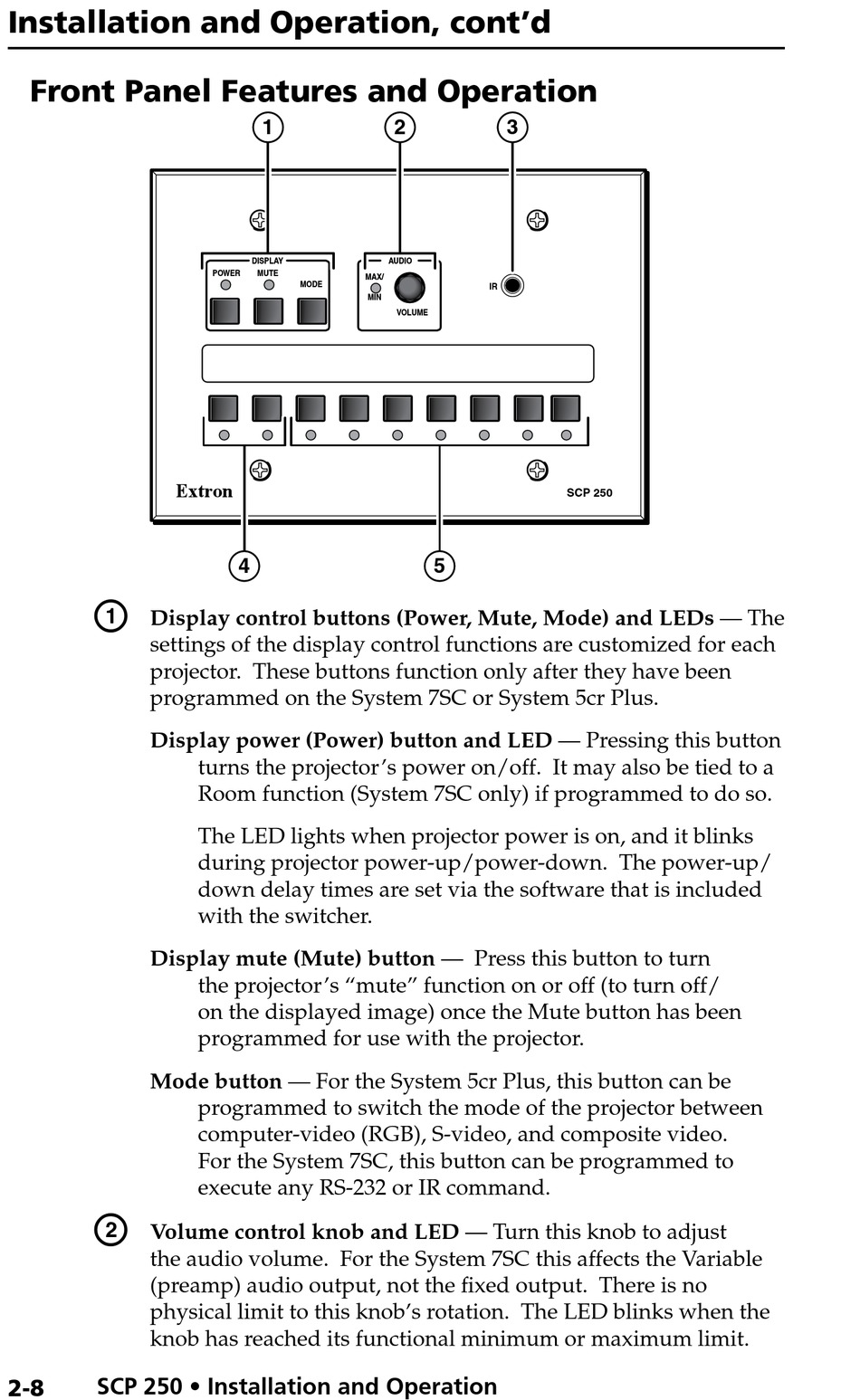

Front Panel Features and Operation

a
Display control buttons (Power, Mute, Mode) and LEDs
Display power (Power) button and LED
Display mute (Mute) button
Mode button
b
Volume control knob and LED
2-8
1
DISPLAY
POWER
MUTE
MAX/
MODE
MIN
4
2
3
AUDIO
IR
VOLUME
5
SCP 250
