Input
10

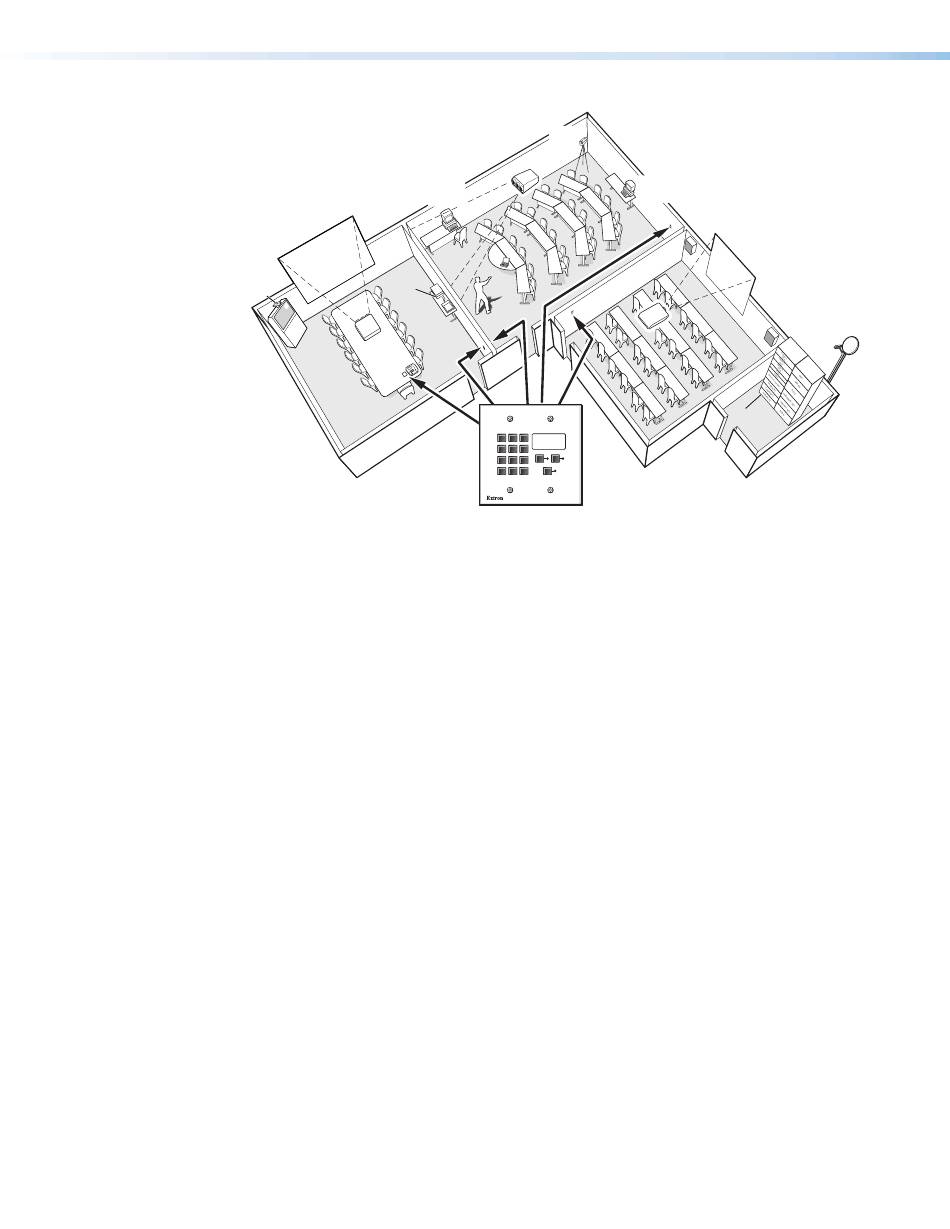

Figure 1.
An overflow crowd in the video conference room and/or the training room may need to see
a lecture going on in the presentation room. In this case, the video camera (input 13) must
be available to those other rooms. Therefore, the MKPs in the video conference and training
rooms will be programmed to allow selection of input 13 for displays in those rooms, in
addition to any video sources and/or displays there.

Control Communications

RS-232 connection to the switcher
Any number of MKP 2000s can be connected to a matrix switcher through its RS-232 port,
but one MKP must be designated as the primary control panel. Other MKPs can be daisy-
chained through the primary MKP remote control panel.
Ethernet connection to the switcher
Any number of MKP 2000s can be connected to a matrix switcher as part of an Ethernet
local area network (LAN).
Application diagram
On the next page,
a matrix switcher and other Extron products.
2 MKP 2000 • Introduction
Input
11
Video Conference
Room
Input
7-9
A
B
Typical MKP 2000 Applications
figure 2
shows an example of how the MKP 2000 may be connected to
Presentation
Input
Room
13
C
Input
14
12
D
1 2 3
4 5 6
INPUT OUTPUT
7 8 9
BACK 0 CANCEL TAKE
MKP-2000
Keypad
MKP 2000
Training
Room
Media
Room
Input
1-6
