The cable that you use depends on your network speed. The MKP supports both 10 Mbps
(10Base-T — Ethernet) and 100 Mbps (100Base-T — Fast Ethernet), half-duplex and full-
duplex, Ethernet connections.
10Base-T Ethernet requires CAT 3 UTP or STP cable as a minimum.
100Base-T Fast Ethernet requires CAT 5e UTP or STP cable as a minimum.
The Ethernet cable can be terminated as a straight-through cable or a crossover cable, and
must be properly terminated for your application.
Patch (straight-through) cable — Network connection between the MKP and an
Ethernet LAN (see
Crossover cable — Direct connection between the MKP and a host computer or an
Ethernet-enabled matrix switcher (see
Side
Clip Down
1
2 3 4 5 6 7 8
Pins
RJ-45
connector
1
2 3 4 5 6 7 8
1&2
3&6 4&5 7&8
Figure 15.

Power Supply Wiring

A 12 VDC, 0.5 A power supply is provided with the MKP 2000 transmitter. Follow these
instructions to wire the 2-pole captive screw connector to your power supply:
CAUTION: Risk of minor personal injury:
ATTENTION : Risque de blessure mineure :
The DC output cables must be kept separate from each other while the power
supply is plugged in. Remove power before wiring.
Les câbles de sortie CC doivent être séparés les uns des autres tant que la
source d'alimentation est branchée. Coupez l'alimentation avant d'effectuer les
raccordements.
The length of exposed wires is critical (see the
next page for details).
La longueur des câbles exposés est primordiale lorsque l'on entreprend de
les dénuder. (voir les deux premières
d'informations).
figure 12
on page 11)
Patch (straight) cable
Side 1
Pin Wire color
Pin Wire color
1 White-orange
1 White-orange
2 Orange
2 Orange
3 White-green
3 White-green
4 Blue
4 Blue
5 White-blue
5 White-blue
6 Green
6 Green
7 White-brown
7 White-brown
8 Brown
8 Brown
Twisted
Pairs

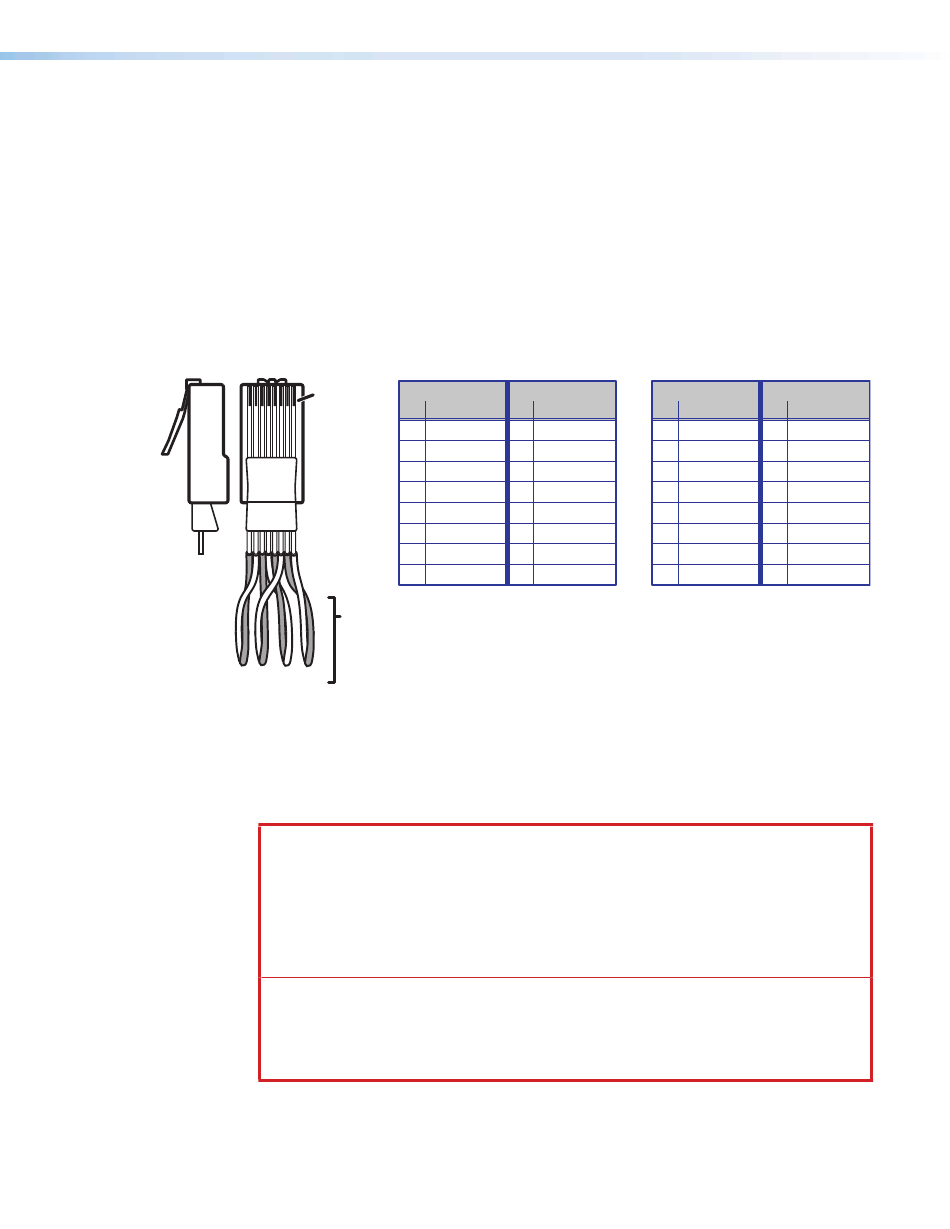

RJ-45 Connector and Pinout Tables
figure 11
on page 11).
Crossover cable
Side 2
Side 1
Pin Wire color
1 White-orange
2 Orange
3 White-green
4 Blue
5 White-blue
6 Green
7 White-brown
8 Brown
ATTENTION notifications
ATTENTION
en page suivante pour plus
MKP 2000 • Installation
Side 2
Pin Wire color
1 White-green
2 Green
3 White-orange
4 Blue
5 White-blue
6 Orange
7 White-brown
8 Brown
on the
13
