Extron Control System Comm-Link cable

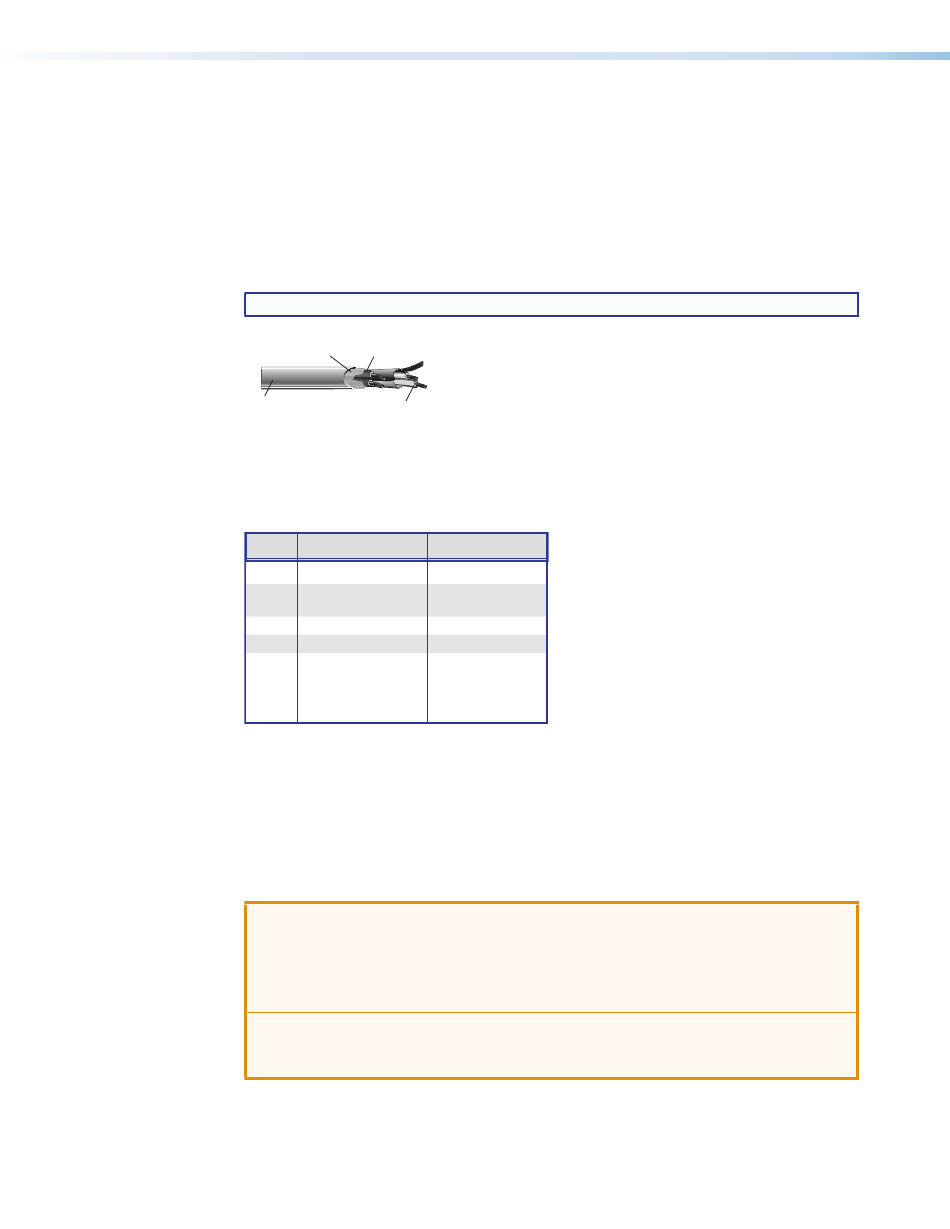

Wire specifications for Extron Comm-Link cable (see figure 13) are as follows:
•
•
•
•
•
NOTE: Comm-Link cable was designed for use with MKP control panels.
SuperFlex Plenum
Jacket
Figure 13.
For RS- 232 pin assignments, see figure 14.
Figure 14.

TP Cable Termination and Recommendations

It is vital that you use the correct Ethernet cables, and that they be properly terminated with
the correct pinout. Ethernet links use Category (CAT) 5e or CAT 6, unshielded twisted pair
(UTP) or shielded twisted pair (STP) cables, terminated with RJ-45 connectors. Ethernet
cables are limited to a length of 328 feet (100 m).
ATTENTION:
12 MKP 2000 • Installation
A (red) = 18 American Wire Gauge (AWG)
B (violet or blue) = 22 AWG (grouped and shielded)
C (white) = 22 AWG
D (drain) = 24 AWG
E (black) = 18 AWG
A, E
Two 18 AWG
Fiber Wrap
(Red and Black)
B, C Two 22 AWG
(White and Violet or Blue)
D One 24 AWG
Tinned Copper Drain Wire
(foil-shielded group)
Extron Comm-Link Cable
Pin Switcher RS-232
1 –
2 Tx
3 Rx
4 –
5 Gnd
6 –
7 –
8 –
9 –
RS-232 Cross-connection Table
• Do not use standard telephone cables. Telephone cables do not support Ethernet
or Fast Ethernet.
• Ne pas utiliser de câbles téléphone standard. Les câbles de téléphone ne sont pas
compatibles avec les liaisons Ethernet ou Fast Ethernet.
• Do not stretch or bend cables. This can cause transmission errors.
• Ne pas étirer ou plier les câbles. Cela pourrait provoquer des erreurs de
transmission.
MKP RS-232
–
Rx
Tx
–
Gnd
–
–
–
–
