Access Control - Eaton Network Card-MS User Manual

To view and modify Central Shutdown Configuration parameters:
1. Select Notified Applications from the menu bar. The Notified Applications page opens.
2. Select the Configuration column head in the Notified Applications table to open the Central Shutdown
Configuration page (see Figure 34).

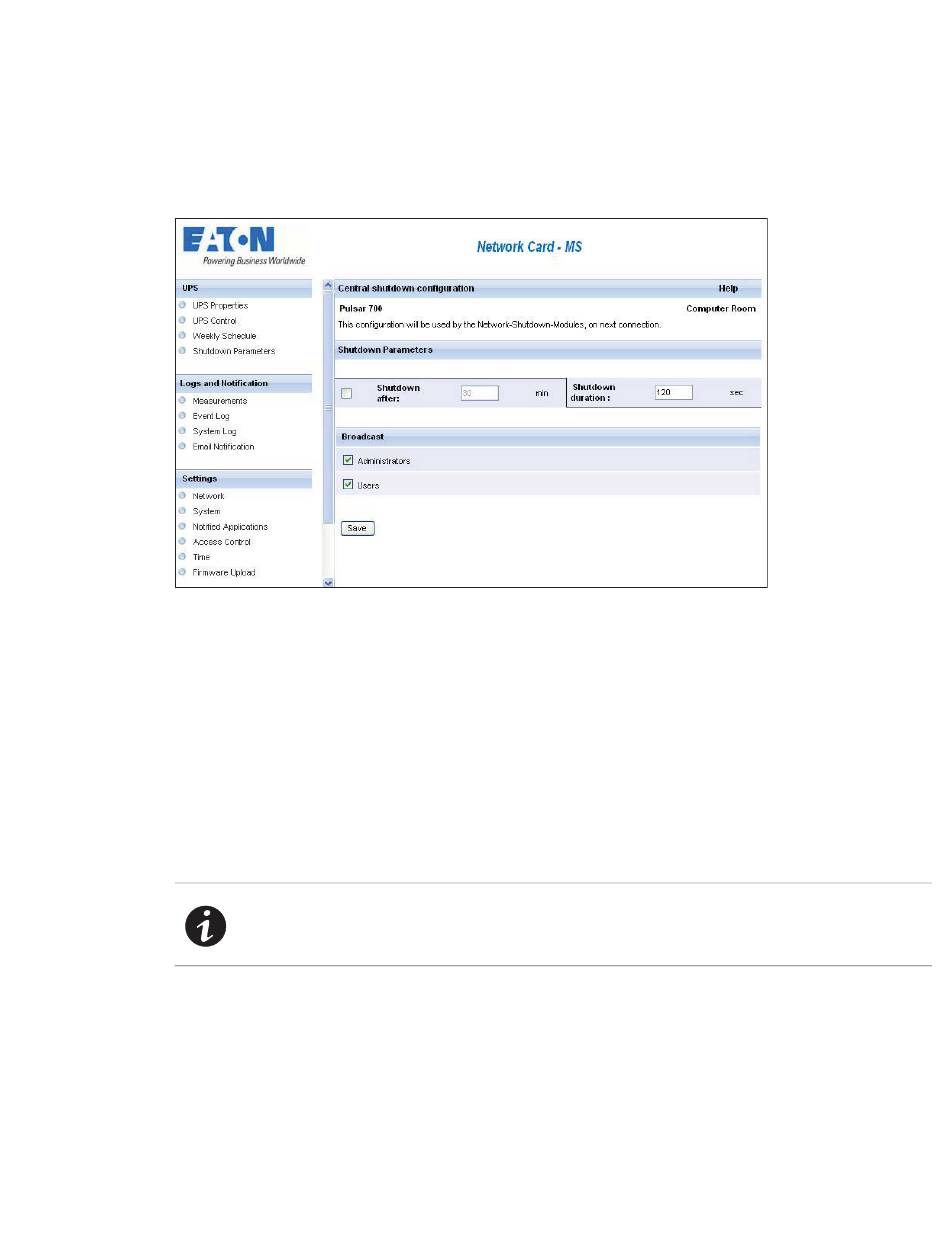

Figure 34. Central Shutdown Configuration Page
3. Change parameters as needed:
- Shutdown after: Optional. The time period from the time of the power failure until the launch of the UPS
shutdown sequence.
- Shutdown duration: The shutdown duration necessary to properly shut down the computer.
- Broadcast: Network notifications to the Administrators and Users groups on events.
4. Click Save and then OK to confirm changes.

Access Control

Select Access Control from the menu bar to configure the parameters to allow secure access to the card using
a browser (see Figure 35).
NOTE 1 If you are not already logged on, you will be prompted to enter your user name and
password before accessing this page.
NOTE 2 Restart the card to activate any Access Control configuration changes.
Eaton Network Card-MS User's Guide P-164000100—Rev 1 www.eaton.com/powerquality
Configuring the Card
43
