Configuring the Card

To configure the card:
1. Verify that the serial cable (supplied) is connected to the card's Settings/Sensor port and the computer's
COM port.
2. Open your terminal emulation program (such as HyperTerminal).
3. Select the serial connection (such as COM1).
4. Set the serial line to 9600 baud, 8 data bits, no parity, 1 stop bit, no flow control (see Figure 6).

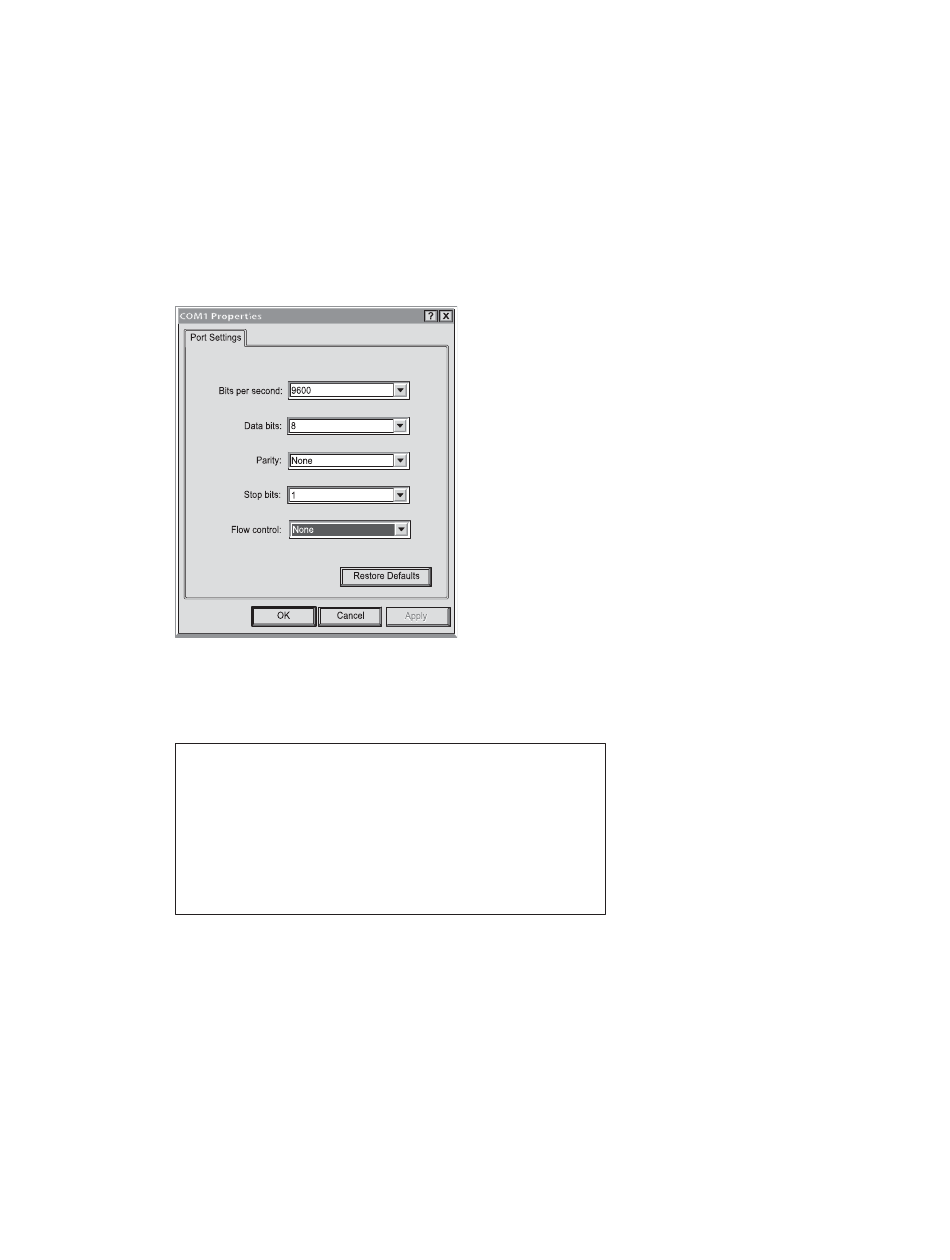

Figure 6. Configuring Port Settings
5. Verify that the UPS is turned on.
The initialization process completes, and you are prompted enter the password (see Figure 7).
-------------------------------------------------------------
End of Init, card is ready ...
Enter password to activate Maintenance Menu :
Warning: for SMTP server resolution don't forget to set DNS
File RAM0/ConfigurationData.xml created with 17096 bytes
File FLASH0/ConfigurationData.xml written in Flash with 17096 bytes
-------------------------------------------------------------
Figure 7. Card Initialization
