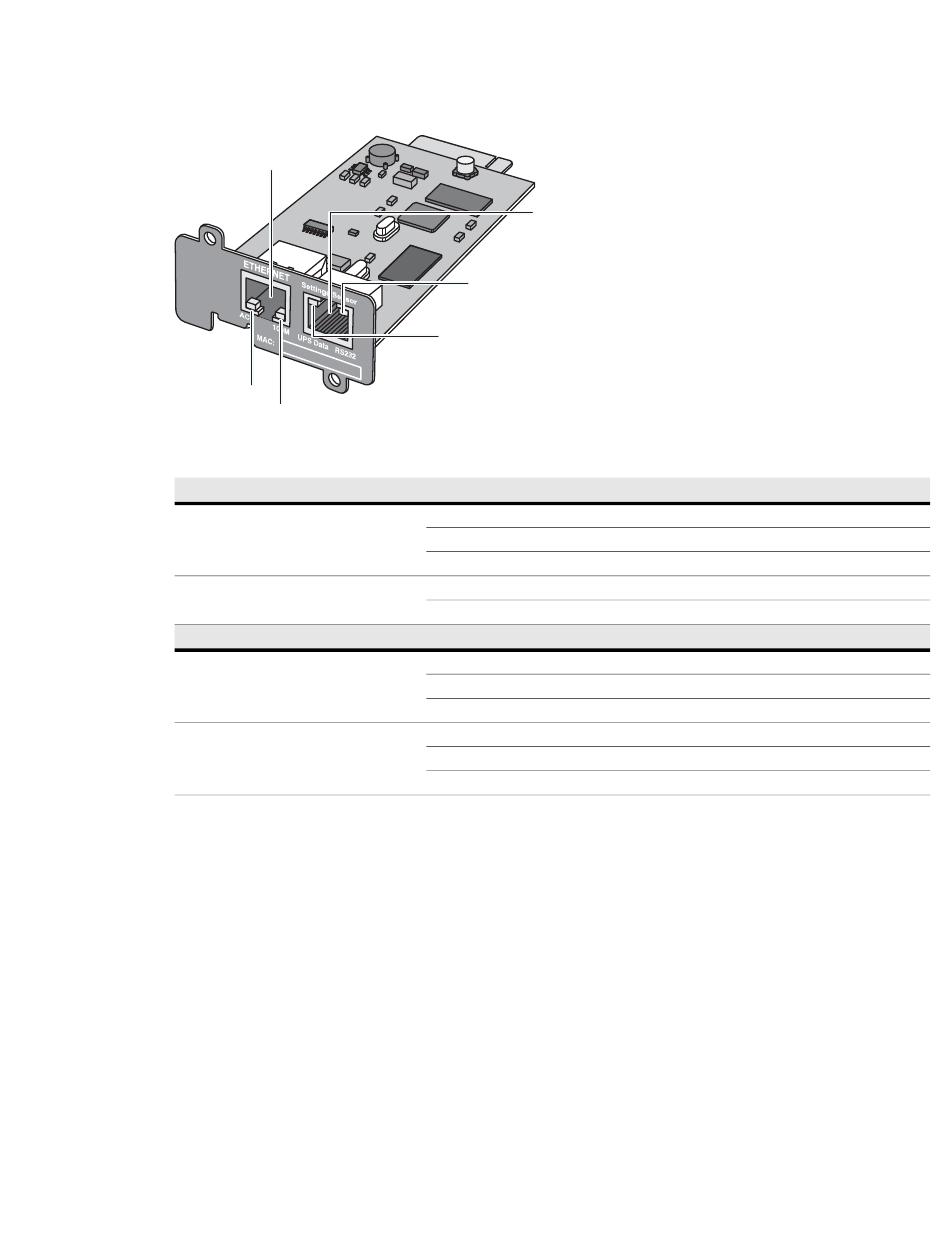

Figure 2. Network Card-MS Details
Table 1. Indicator Descriptions
Ethernet Port (10/100BaseT)
ACT LED (green)
100M LED (orange
Settings/Sensor Port
UPS Data LED (green)
RS-232 LED (orange)
1
5
3
Off
On
Flashing
Off
On
Off
On
Flashing
Off
On
Flashing
Eaton Network Card-MS User's Guide P-164000100—Rev 1 www.eaton.com/powerquality
4
6
1. Ethernet Port (10/100BaseT)
2. ACT LED (green)
3. 100M LED (orange)
4. Settings/Sensor Port
5. UPS Data LED (green)
6. RS232 LED (orange)
Card is not connected to the network
Card is connected to the network, but no activity
Card is sending/receiving
Port is operating at 10 Mbits/s
Port is operating at 100 Mbits/s
Card is starting
Card is communicating with the UPS
Normal operation; communication with the UPS is operational
Configuration menu is activated
Normal operation; Configuration menu is not activated
Card is communicating with the EMP
