Network Settings

Select Network from the menu bar to configure the network parameters of the card and authorize the remote
upgrade of the embedded system (see Figure 30).

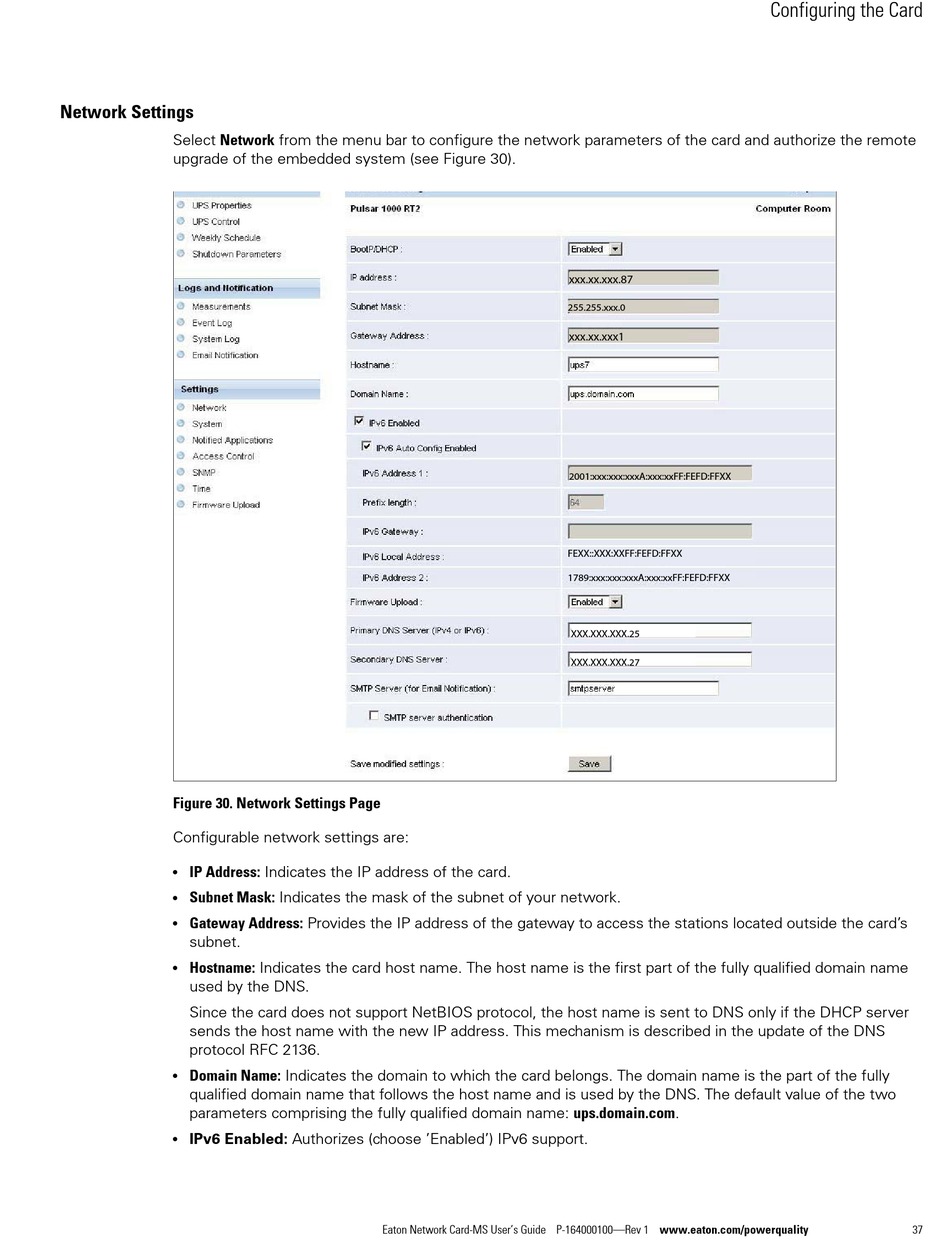

Figure 30. Network Settings Page
Configurable network settings are:
IP Address: Indicates the IP address of the card.
l
Subnet Mask: Indicates the mask of the subnet of your network.
l
Gateway Address: Provides the IP address of the gateway to access the stations located outside the card's
l
subnet.
Hostname: Indicates the card host name. The host name is the first part of the fully qualified domain name
l
used by the DNS.
Since the card does not support NetBIOS protocol, the host name is sent to DNS only if the DHCP server
sends the host name with the new IP address. This mechanism is described in the update of the DNS
protocol RFC 2136.
Domain Name: Indicates the domain to which the card belongs. The domain name is the part of the fully
l
qualified domain name that follows the host name and is used by the DNS. The default value of the two
parameters comprising the fully qualified domain name: ups.domain.com.
IPv6 Enabled: Authorizes (choose 'Enabled') IPv6 support.
l
Eaton Network Card-MS User's Guide P-164000100—Rev 1 www.eaton.com/powerquality
xxx.xx.xxx.87
255.255.xxx.0
xxx.xx.xxx1
2001:xxx:xxx:xxxA:xxx:xxFF:FEFD:FFXX
FEXX::XXX:XXFF:FEFD:FFXX
1789:xxx:xxx:xxxA:xxx:xxFF:FEFD:FFXX
XXX.XXX.XXX.25
XXX.XXX.XXX.27
