Measurements

Select Measurements from the menu bar to view the measurements for a single-phase UPS (see Figure 24).

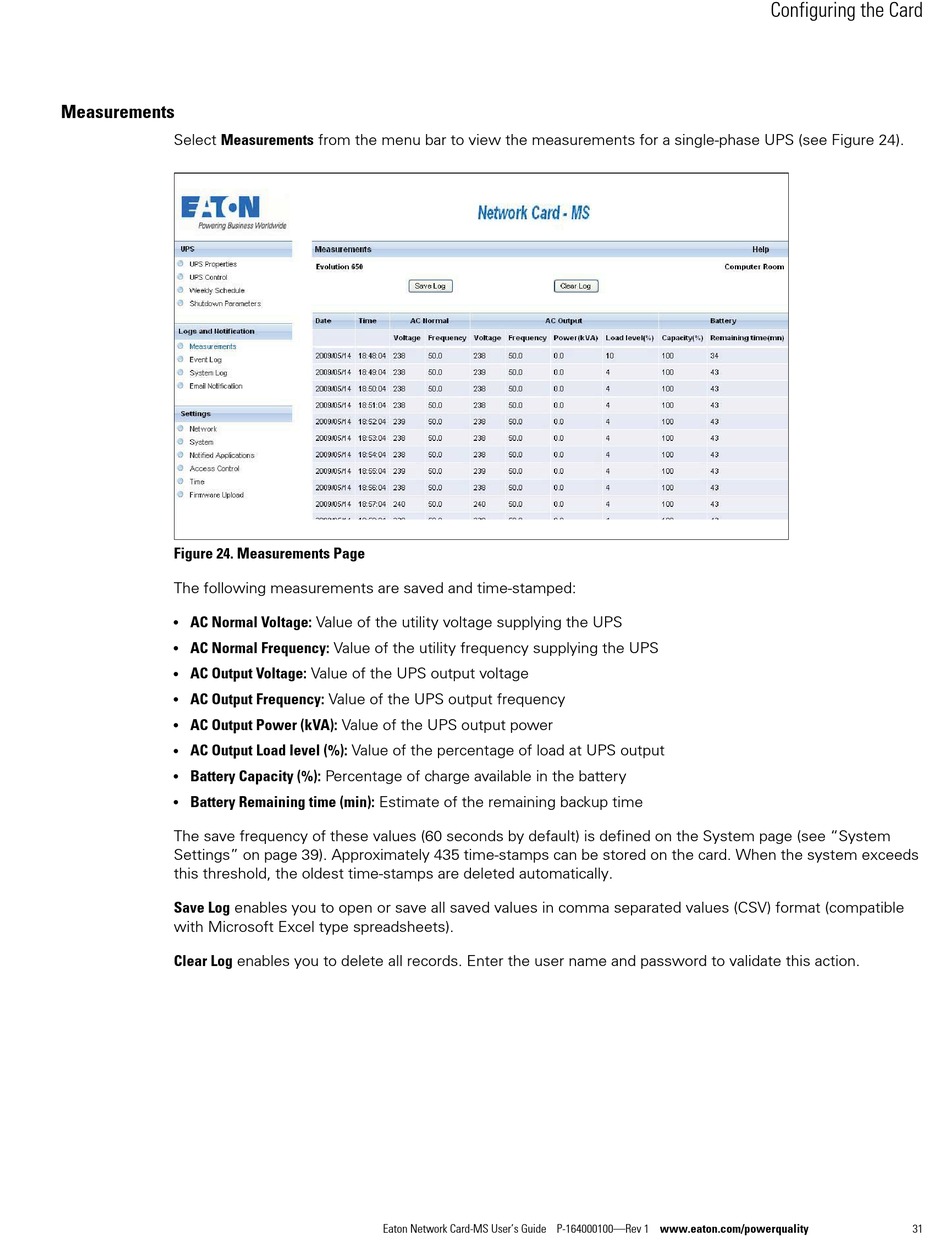

Figure 24. Measurements Page
The following measurements are saved and time-stamped:
AC Normal Voltage: Value of the utility voltage supplying the UPS
l
AC Normal Frequency: Value of the utility frequency supplying the UPS
l
AC Output Voltage: Value of the UPS output voltage
l
AC Output Frequency: Value of the UPS output frequency
l
AC Output Power (kVA): Value of the UPS output power
l
AC Output Load level (%): Value of the percentage of load at UPS output
l
Battery Capacity (%): Percentage of charge available in the battery
l
Battery Remaining time (min): Estimate of the remaining backup time
l
The save frequency of these values (60 seconds by default) is defined on the System page (see "System
Settings" on page 39). Approximately 435 time-stamps can be stored on the card. When the system exceeds
this threshold, the oldest time-stamps are deleted automatically.
Save Log enables you to open or save all saved values in comma separated values (CSV) format (compatible
with Microsoft Excel type spreadsheets).
Clear Log enables you to delete all records. Enter the user name and password to validate this action.
Eaton Network Card-MS User's Guide P-164000100—Rev 1 www.eaton.com/powerquality
Configuring the Card
31
