UPS Status List

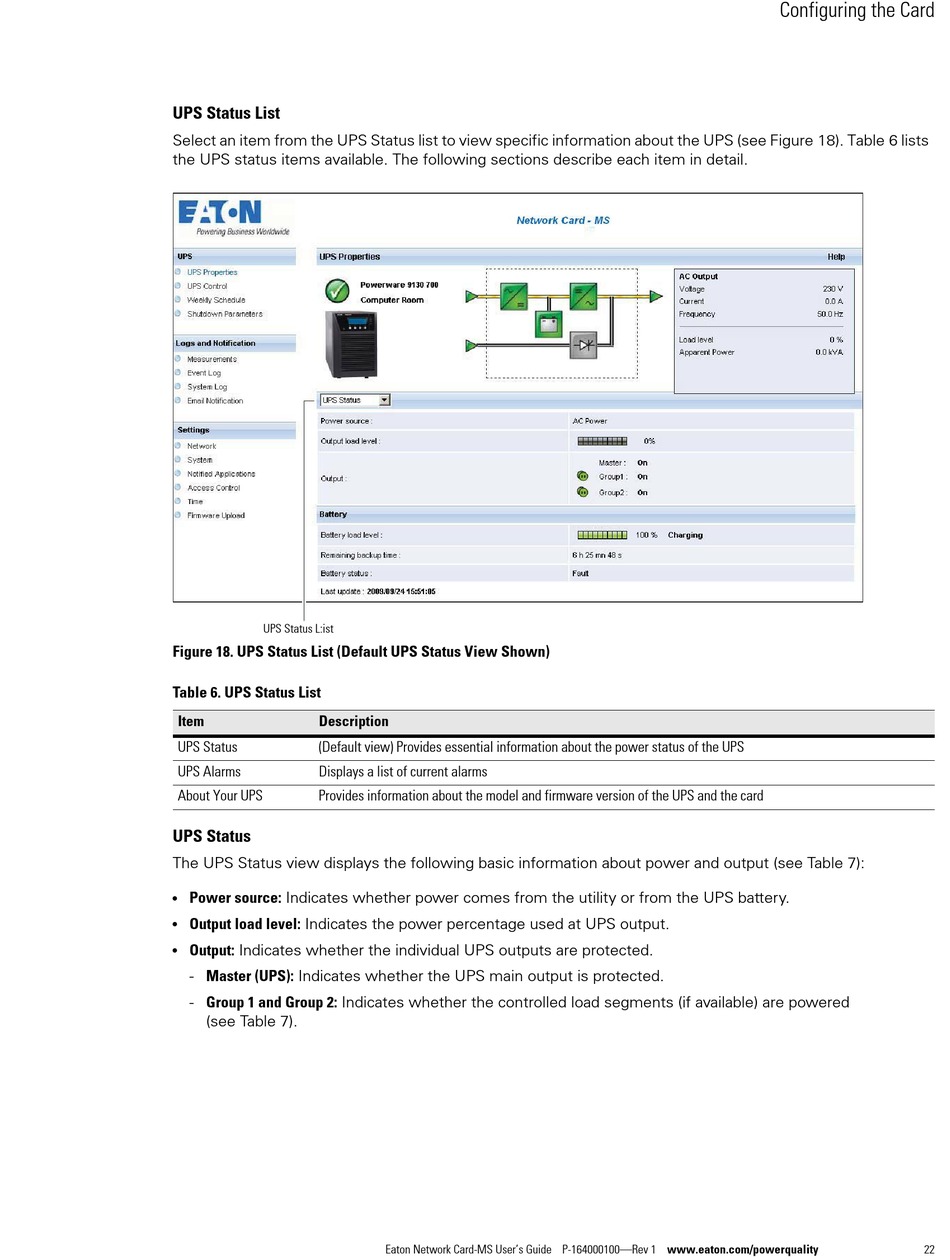

Select an item from the UPS Status list to view specific information about the UPS (see Figure 18). Table 6 lists
the UPS status items available. The following sections describe each item in detail.
UPS Status L:ist
Figure 18. UPS Status List (Default UPS Status View Shown)
Table 6. UPS Status List
Item Description

UPS Status

(Default view) Provides essential information about the power status of the UPS
UPS Alarms Displays a list of current alarms
About Your UPS Provides information about the model and firmware version of the UPS and the card
UPS Status
The UPS Status view displays the following basic information about power and output (see Table 7):
Power source: Indicates whether power comes from the utility or from the UPS battery.
l
Output load level: Indicates the power percentage used at UPS output.
l
Output: Indicates whether the individual UPS outputs are protected.
l
- Master (UPS): Indicates whether the UPS main output is protected.
- Group 1 and Group 2: Indicates whether the controlled load segments (if available) are powered
(see Table 7).
