Chapter 6

Operation and Maintenance

This chapter explains:

Serial cable pinout

l
Detailed serial configuration menus
l
Firmware upgrade instructions
l
Serial Cable Pinout

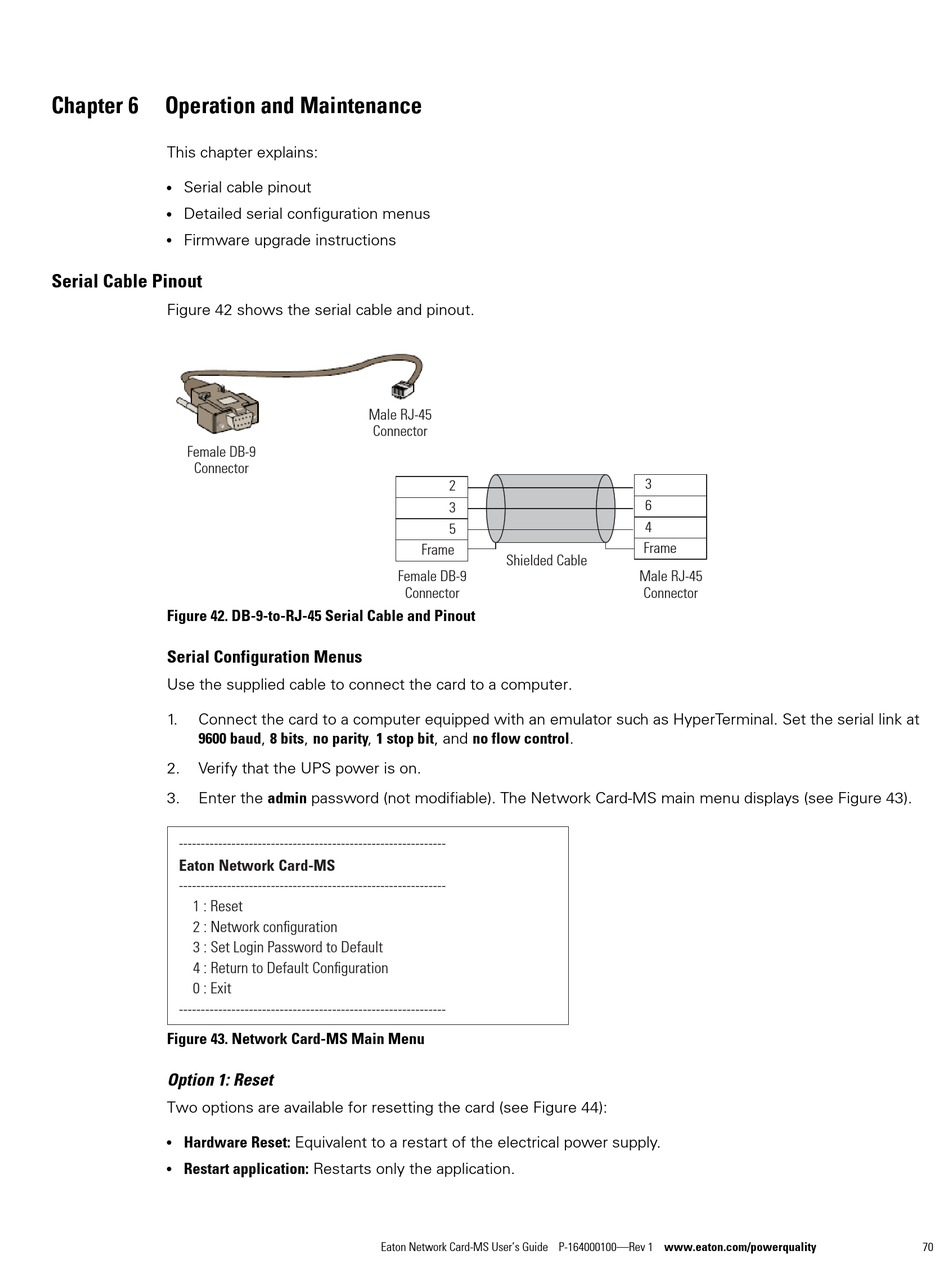

Figure 42 shows the serial cable and pinout.
Female DB-9
Connector
Figure 42. DB-9-to-RJ-45 Serial Cable and Pinout

Serial Configuration Menus

Use the supplied cable to connect the card to a computer.
1. Connect the card to a computer equipped with an emulator such as HyperTerminal. Set the serial link at
9600 baud, 8 bits, no parity, 1 stop bit, and no flow control.
2. Verify that the UPS power is on.
3. Enter the admin password (not modifiable). The Network Card-MS main menu displays (see Figure 43).
-------------------------------------------------------------
Eaton Network Card-MS
-------------------------------------------------------------
1 : Reset
2 : Network configuration
3 : Set Login Password to Default
4 : Return to Default Configuration
0 : Exit
-------------------------------------------------------------
Figure 43. Network Card-MS Main Menu
Option 1: Reset
Two options are available for resetting the card (see Figure 44):
Hardware Reset: Equivalent to a restart of the electrical power supply.
l
Restart application: Restarts only the application.
l
Male RJ-45
Connector
2
3
5
Frame
Shielded Cable
Female DB-9
Connector
Eaton Network Card-MS User's Guide P-164000100—Rev 1 www.eaton.com/powerquality
3
6
4
Frame
Male RJ-45
Connector
