Installing the Card

The Network Card-MS can be installed in any Eaton UPS equipped with a communication bay without turning
off the UPS or disconnecting the load.
To install the Network Card-MS:
1. Remove the communication bay cover from the UPS. Retain the screws.
2. If not already done, record the card's MAC address for future reference (see "Installation Checklist" on
page 3).
3. To prevent electrostatic discharge (ESD), place one hand on a metal surface.
4. Slide the card into the open slot and secure with the screws removed in Step 1(see Figure 3).

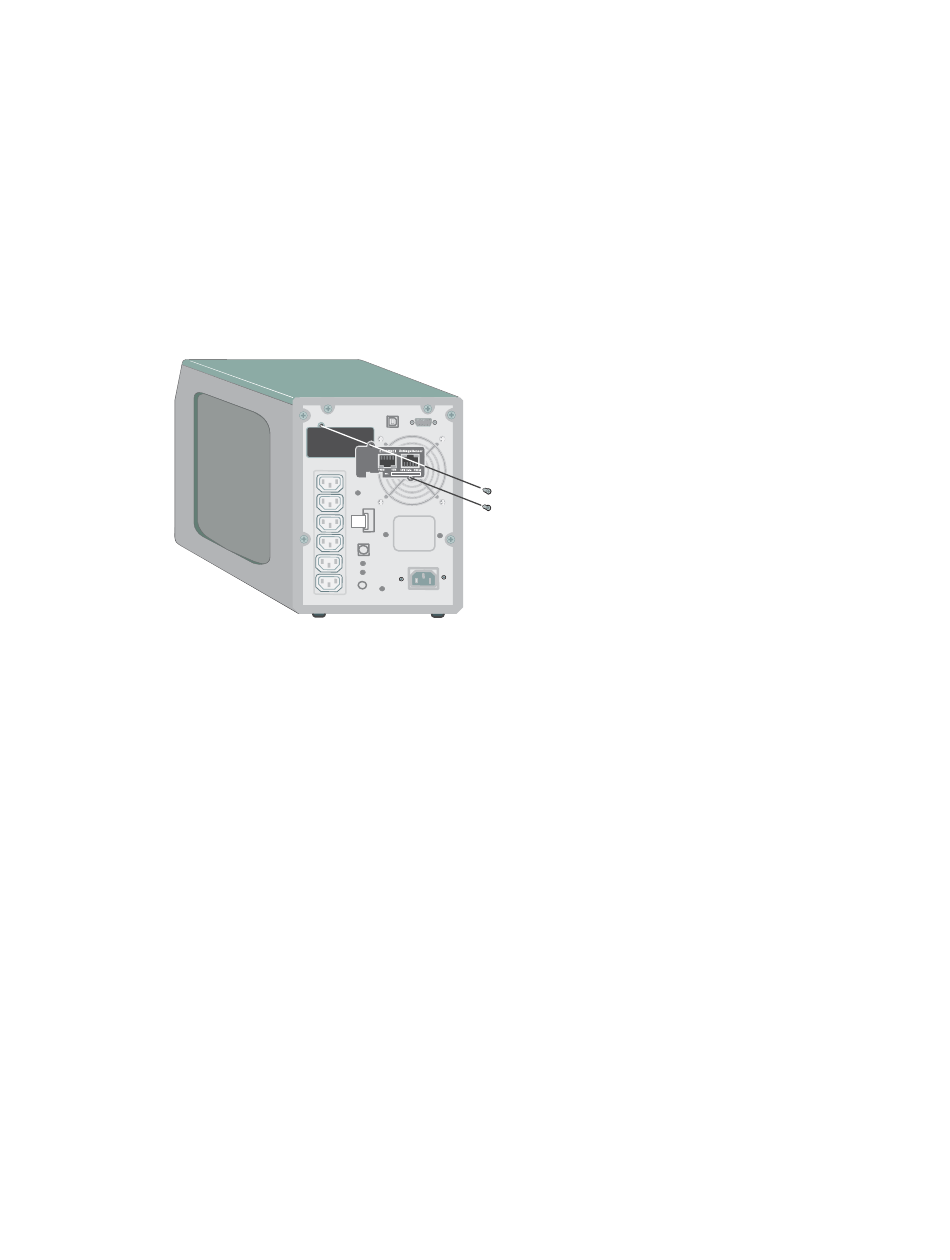

Figure 3. Installing the Card
