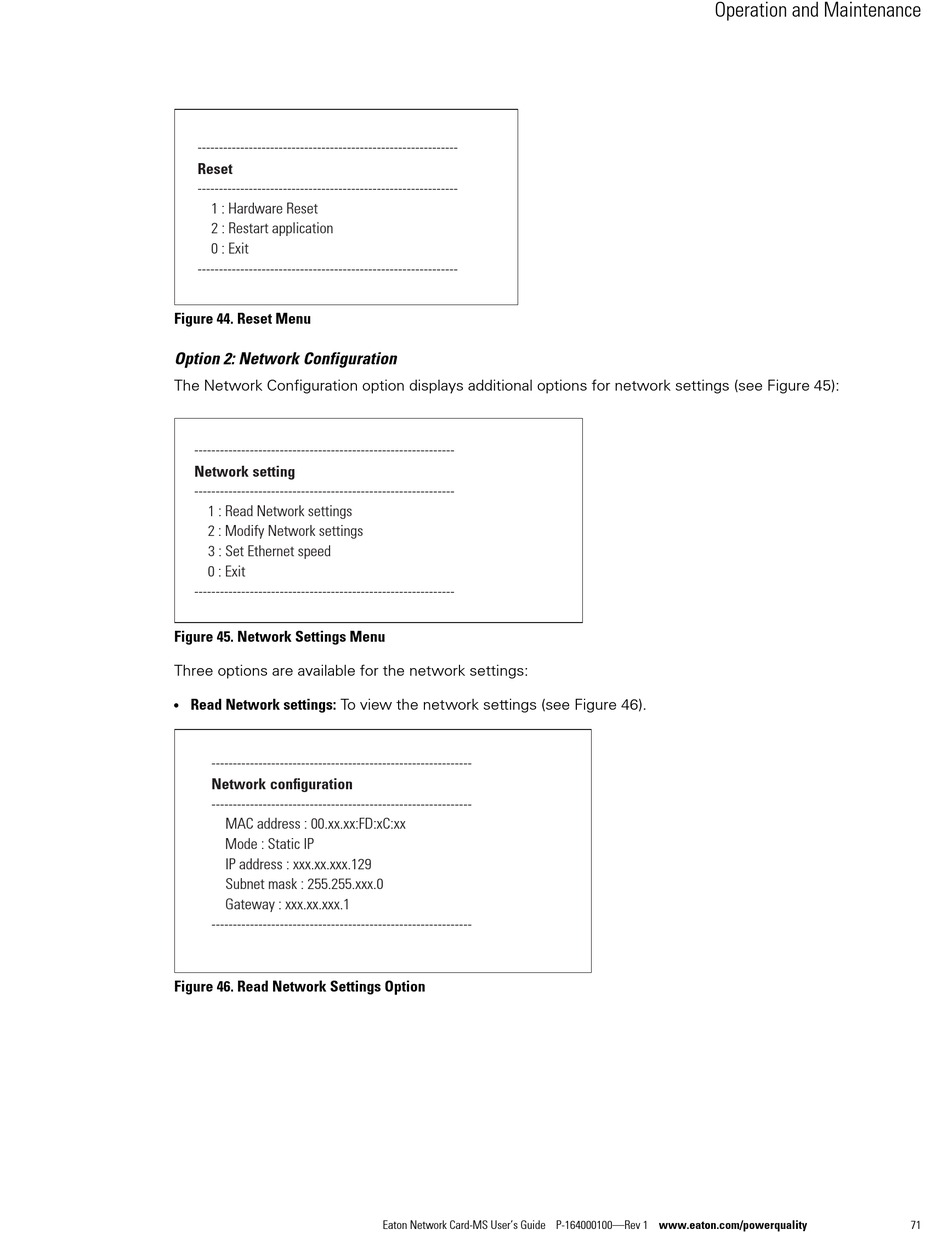

Reset
-------------------------------------------------------------
1 : Hardware Reset
2 : Restart application
0 : Exit
-------------------------------------------------------------
Figure 44. Reset Menu
Option 2: Network Configuration
The Network Configuration option displays additional options for network settings (see Figure 45):
-------------------------------------------------------------
Network setting
-------------------------------------------------------------
1 : Read Network settings
2 : Modify Network settings
3 : Set Ethernet speed
0 : Exit
-------------------------------------------------------------
Figure 45. Network Settings Menu
Three options are available for the network settings:
Read Network settings: To view the network settings (see Figure 46).
l
-------------------------------------------------------------
Network configuration
-------------------------------------------------------------
MAC address : 00.xx.xx:FD:xC:xx
Mode : Static IP
IP address : xxx.xx.xxx.129
Subnet mask : 255.255.xxx.0
Gateway : xxx.xx.xxx.1
-------------------------------------------------------------
Figure 46. Read Network Settings Option
