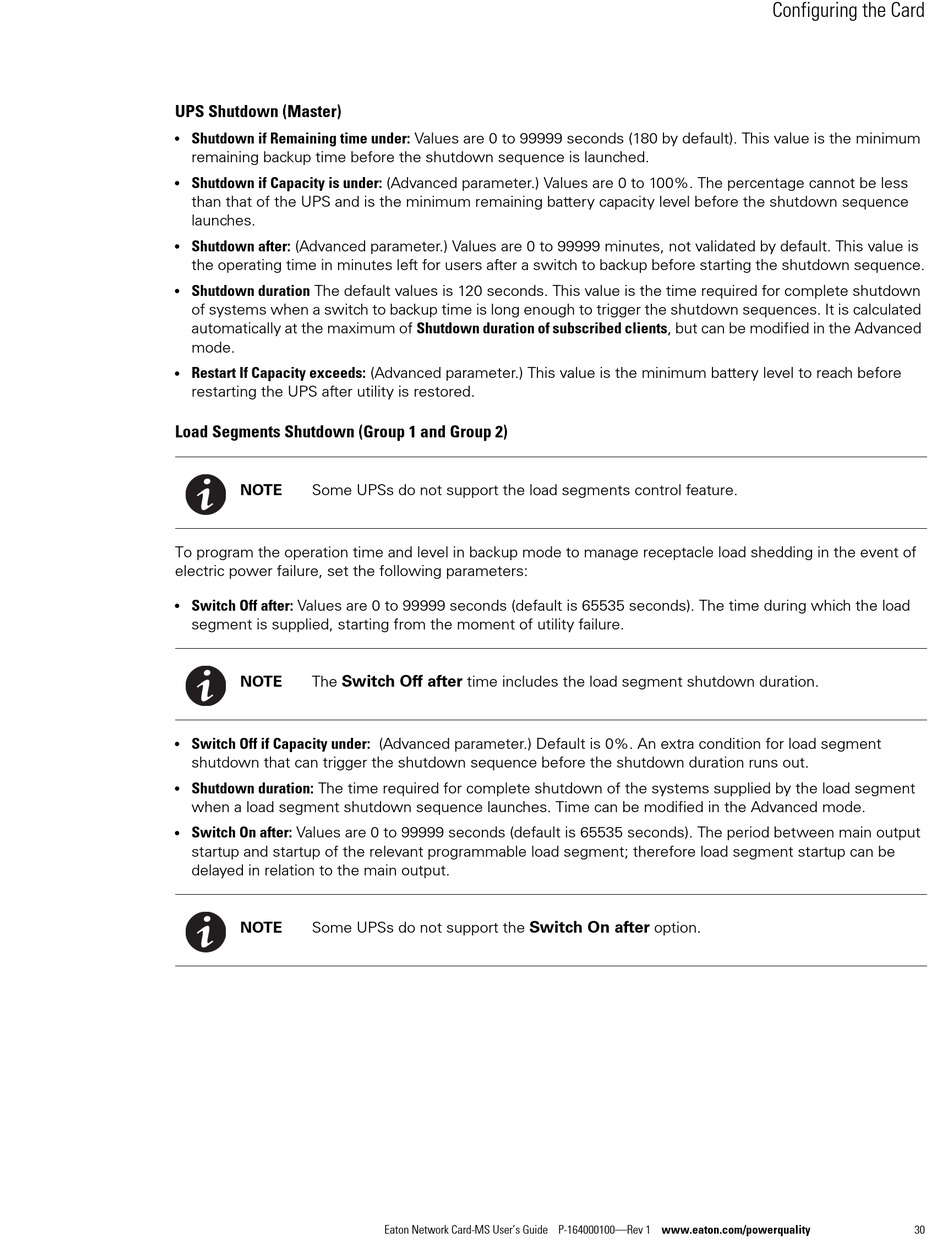

UPS Shutdown (Master)

Shutdown if Remaining time under: Values are 0 to 99999 seconds (180 by default). This value is the minimum
l
remaining backup time before the shutdown sequence is launched.
Shutdown if Capacity is under: (Advanced parameter.) Values are 0 to 100%. The percentage cannot be less
l
than that of the UPS and is the minimum remaining battery capacity level before the shutdown sequence
launches.
Shutdown after: (Advanced parameter.) Values are 0 to 99999 minutes, not validated by default. This value is
l
the operating time in minutes left for users after a switch to backup before starting the shutdown sequence.
Shutdown duration The default values is 120 seconds. This value is the time required for complete shutdown
l
of systems when a switch to backup time is long enough to trigger the shutdown sequences. It is calculated
automatically at the maximum of Shutdown duration of subscribed clients, but can be modified in the Advanced
mode.
Restart If Capacity exceeds: (Advanced parameter.) This value is the minimum battery level to reach before
l
restarting the UPS after utility is restored.

Load Segments Shutdown (Group 1 and Group 2)

NOTE Some UPSs do not support the load segments control feature.
To program the operation time and level in backup mode to manage receptacle load shedding in the event of
electric power failure, set the following parameters:
Switch Off after: Values are 0 to 99999 seconds (default is 65535 seconds). The time during which the load
l
segment is supplied, starting from the moment of utility failure.
Switch Off after
NOTE The
Switch Off if Capacity under: (Advanced parameter.) Default is 0%. An extra condition for load segment
l
shutdown that can trigger the shutdown sequence before the shutdown duration runs out.
Shutdown duration: The time required for complete shutdown of the systems supplied by the load segment
l
when a load segment shutdown sequence launches. Time can be modified in the Advanced mode.
Switch On after: Values are 0 to 99999 seconds (default is 65535 seconds). The period between main output
l
startup and startup of the relevant programmable load segment; therefore load segment startup can be
delayed in relation to the main output.
NOTE Some UPSs do not support the
time includes the load segment shutdown duration.
Switch On after
