UPS Measurements Detail

Place the cursor over an element in the diagram to display the UPS measurements detail (see Figure 17). These
measurements are available for Normal mode, Battery mode, and Bypass mode. The available measurements
depend on the UPS model.

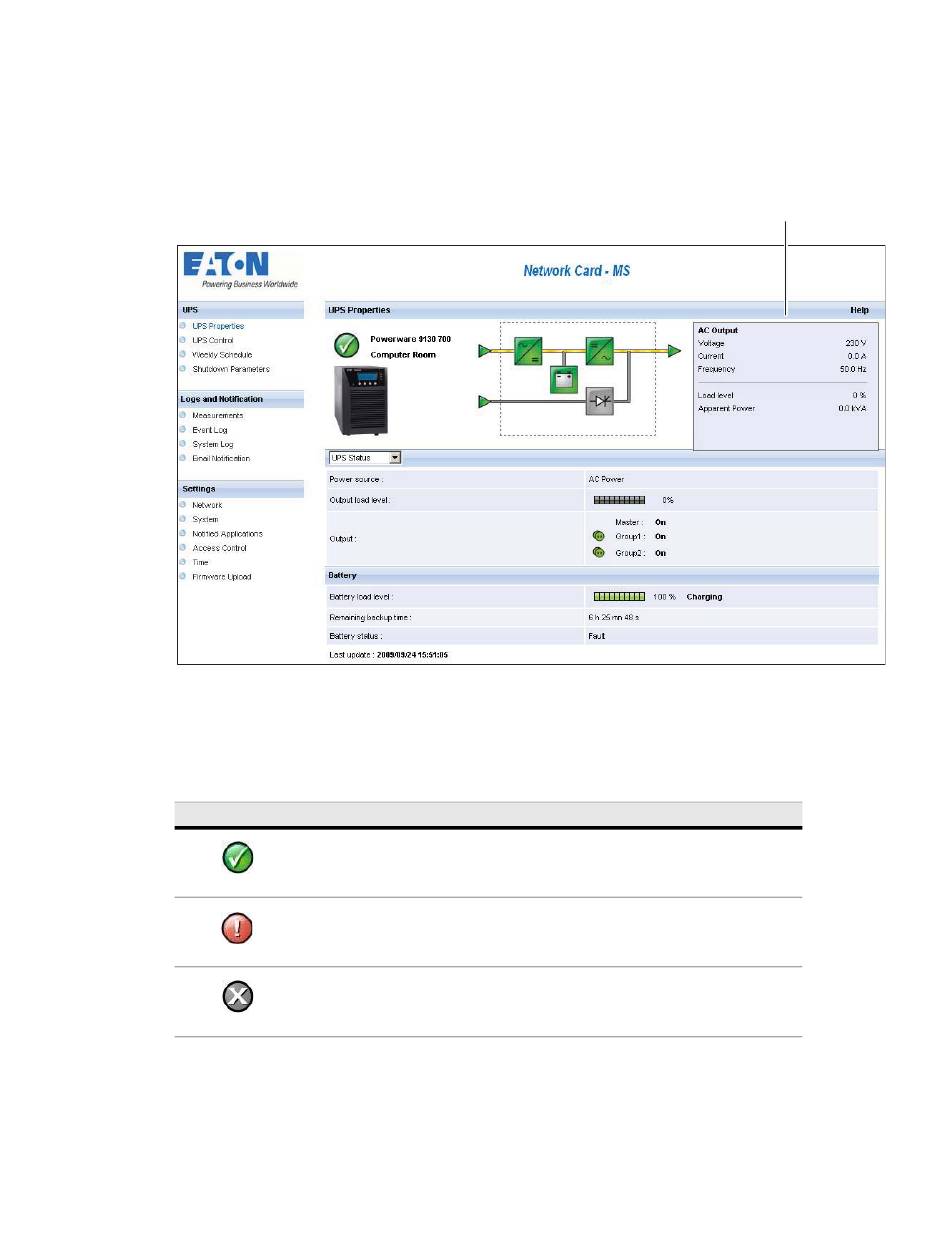

Figure 17. UPS Measurements Detail (AC Output Detail Shown)

UPS Status Icons

Table 3 lists the UPS status icons. Table 4 shows examples of the online UPS current operating modes.
Table 3. UPS Status Icons
Icon Description
Normal operation
Green
Alarm present
This element links directly to the alarm page
Red
Loss of communication with the UPS
Gray
