Summarization of Contents

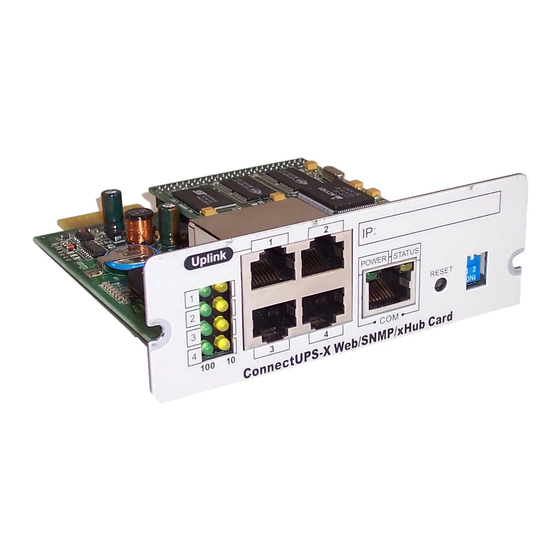

Install the ConnectUPS Card
Verify DIP Switch Settings
Confirm that both DIP switches on the ConnectUPS Web/SNMP Card are set to the 0 (off) position.
Install the Card
Physically install the ConnectUPS Web/SNMP Card into the UPS slot and secure it.
Connect Ethernet Cable
Connect an active Ethernet cable to the network connector on the ConnectUPS card.
Connect and Configure the Card
Connect Serial Cable
Connect the configuration cable from the card's COM port to the computer's serial port.
Configure Terminal Settings
Set serial line parameters: 9600 baud, No parity, 8 data bits, 1 stop bit, no flow control.
Enter Configuration Password
Access the configuration utility by entering the default password 'admin'.
Configure Card Network Settings
Set IP and Network Parameters
Configure the IP Address, Gateway Address, and Network Mask for the ConnectUPS card.
Verify Network Communication
Access the ConnectUPS Card summary page via a web browser using its IP address.
Install Shutdown Software
Launch Software Installation
Insert the Software Suite CD and launch the NetWatch installer.
Specify Shutdown Server IP
Manually enter the IP address of the ConnectUPS Card for the shutdown server.
Select UPS Load Segment
Choose the correct UPS load segment connected to your computer.
Configure Shutdown Options
Select shutdown methods and event logging options for NetWatch.
