Setting The Number Of Fixtures And Assigning Dmx Addresses; Using The Patch Wizard - Compulite Dlite User Manual

Compulite
Chapter 2
The patch is accessed by pressing

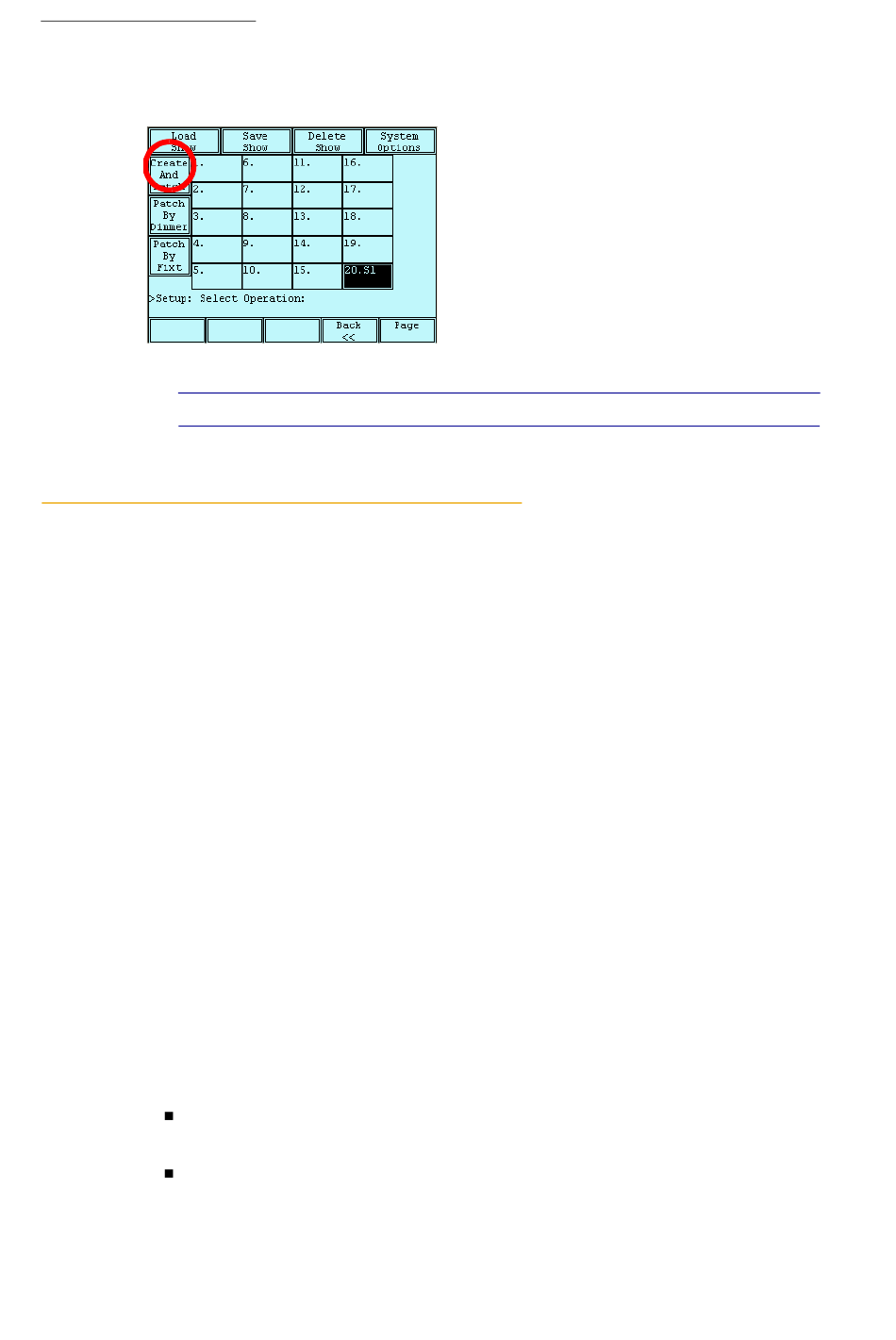

Figure 12: Setup screen
Tip!
Setting the number of fixtures and assigning DMX
addresses
The patch work flow is:
1. Access the patch menu and choose the patch wizard or
2. Select the fixture type by pressing
3. Select the number of fixtures to add to the show.
4. Select the start number for the first fixture.
5. Set the starting DMX address.
6. Select the device type from the device list.
7. Assign DMX addresses.
Dlite boots up with 48 or 72 channels (depending on the Dlite model) already patched to DMX
connector 1 and consecutively numbered from DMX address 1. See
page 30.
Note:

Using the patch wizard

The patch wizard simplifies configuring the system for fixture types and assigning DMX addresses
one DMX address to one fixture number:
For channels - The first channel fixture is patched to the first DMX start address, the second
fixture to the next DMX address., etc.
For spots - The first spot is patched to the DMX start address. Dlite automatically patches the
next spot to the next available DMX address. The interval depends how many DMX channels
are used by the type of spot.
18
Use + for quick access to the patch screen.
SHIFT SETUP
In Dlite Compact, there are no patched channels on start up.
to display the setup screen.
SETUP
,
CHANNEL SPOT
.
MORE...
, or .
EXTRA
"Storing a default patch"
