The effect runs from the base (60) to 30 and to 0
To set the direction and scope
1 Select the fixtures and set parameter levels.
2
Press
3 Tap
4 Tap
the touch screen grid.

Size

Size determines how much movement takes place from the effect's starting point (the base). Size is
a percentage. The size range is from 0% to 100%. The size default is zr or 50 or FL depending on
the type of parameter.

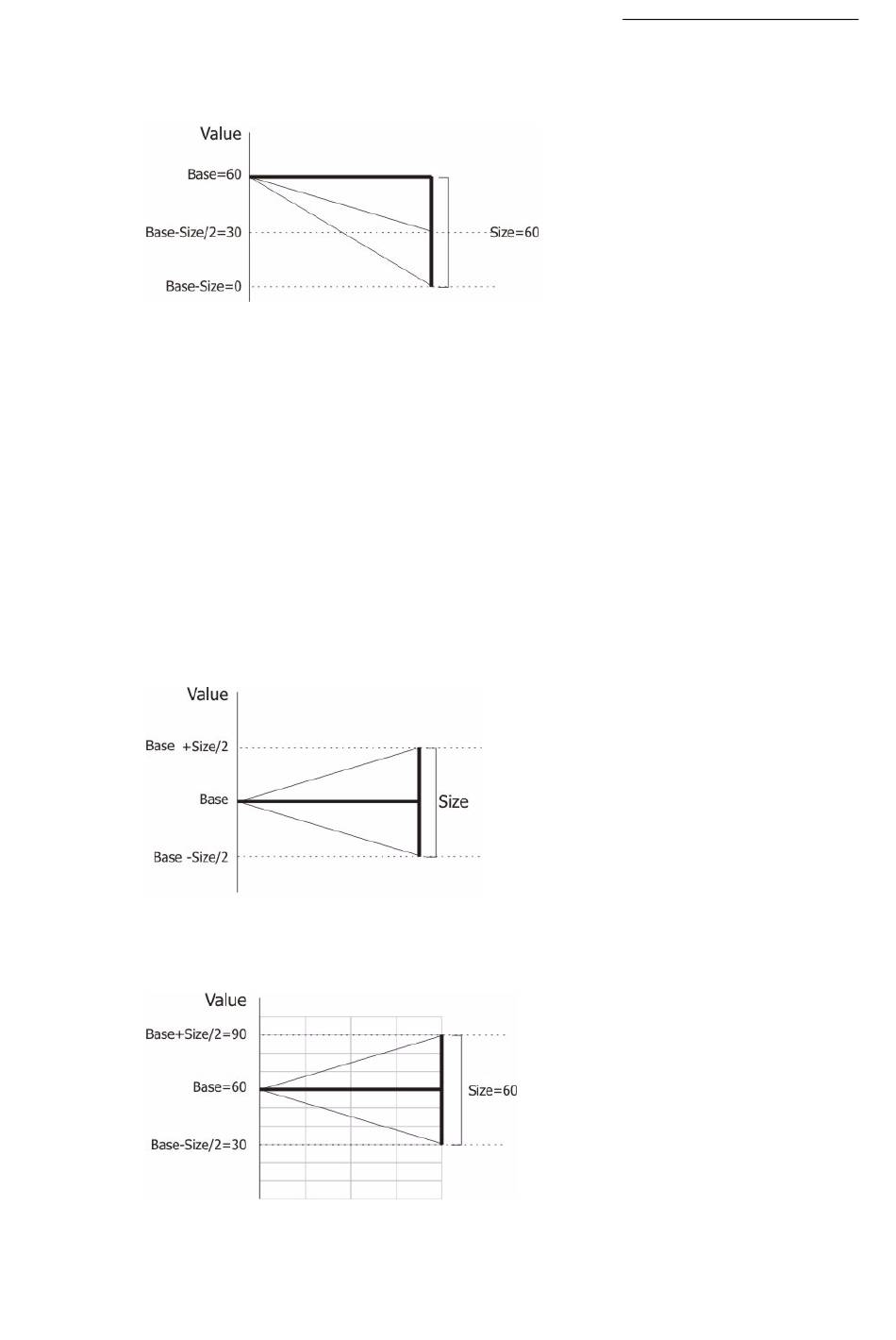

Figure 32: Size schematic
Example 1: The base is 60, size is 60, swing is center. The range of movement is base +30 and base
- 30.
to open the
EFFECT Effect
.
MORE...
until the desired setting is displayed next to the fixture number on
UP CENTER DOWN
screen.
