Adjusting the touch screen

You can adjust the touch screen's contrast and turn its backlight on or off.
To adjust the contrast
Press and hold
To turn the backlight on/off
Press and hold

External monitor

The display on the optional external monitor can be set to show:
Live fixtures (spot or channel or extra) display - shows fixtures and their parameter levels.
Loads for all twenty playbacks or 12 faders/UKeys. The contents of the UKs depends on the
fader mode.
QList display - analogous to a cue sheet.

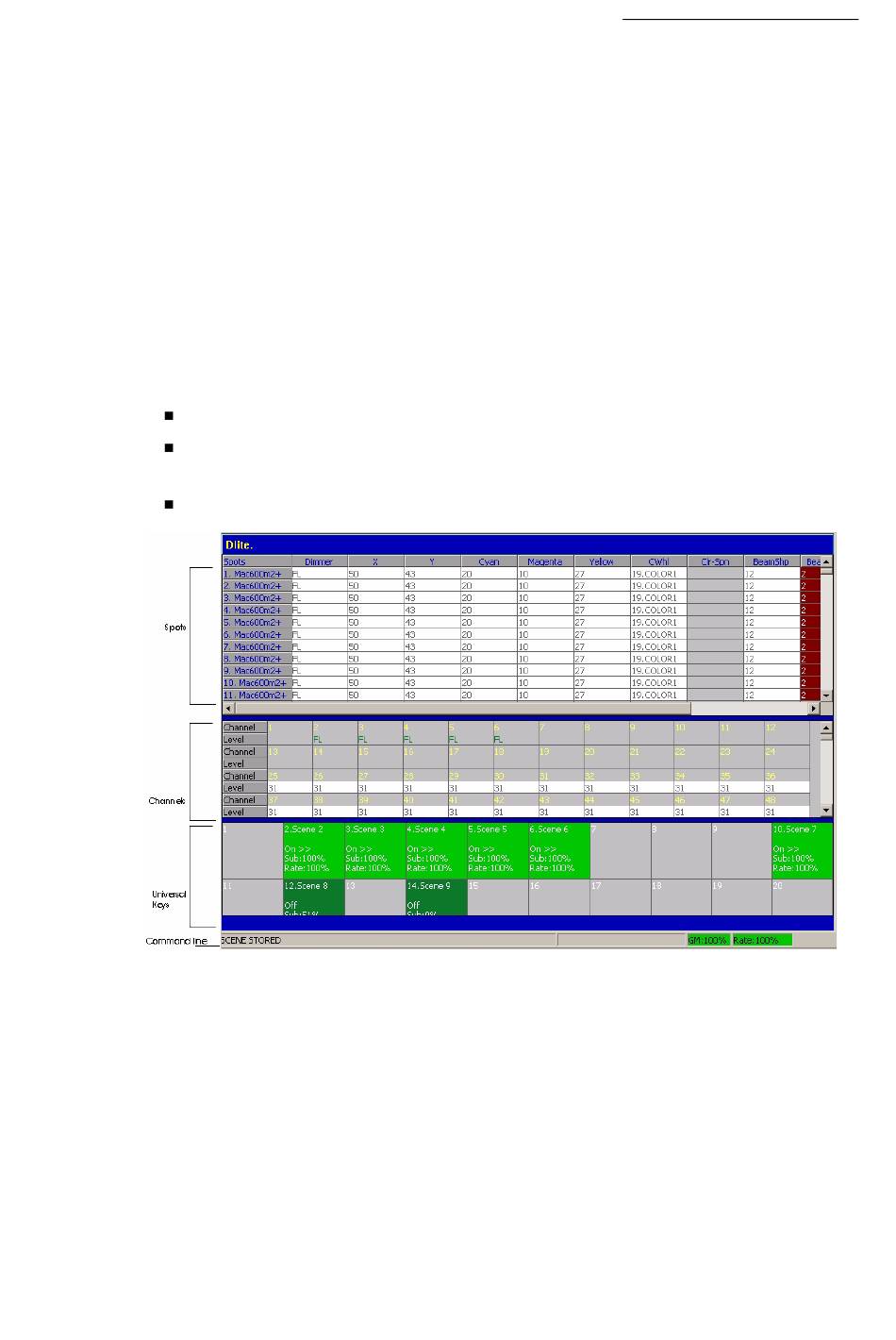

Figure 5: External monitor display option 7
and turn wheel 1 to adjust the touch screen's contrast.
SETUP
and turn wheel 2 to turn the touch screen's backlight on or off.
SETUP
DLITE
System Overview
5
