2. Installation

2.3. Connecting Steps

ATTENTION! Please make sure that the VINX devices within a
systemrunthesamefirmware(packageversion).Ifthefirmwares
are different the seamless working is not guaranteed.

2.3.1. Preparing the Network

For the correct installation build a Local Area Network with a
Layer 3 (L3) type switch (highly recommended). However, Unicast
moderequiresonlyLayer2(L2)switch.Inbothcasestheswitchmust
support the Multicast routing.
ATTENTION!
VINX Encoder and Decoder send certain system
commands over multicast packages. If the multicast routing is
disabled on the network, the signal transmission may fail.
Layer 2 vs. Layer 3 Switch
The VINX Encoders and Decoders use multicast routing. The managed
switch in the network shall offer the following capabilities:
IGMPv2
▪
IGMP snooping
▪
▪ IGMP fast leave
▪ IGMPQuerier
Multicastfiltering
▪
▪ 9kMTU-Jumbo/Giantframes
These features are supported by the Layer 3 type switches. Please
see more technical information about the network requirements in the
Firmware Release Notes section.
VINX-1x0-HDMI Extenders – User's Manual

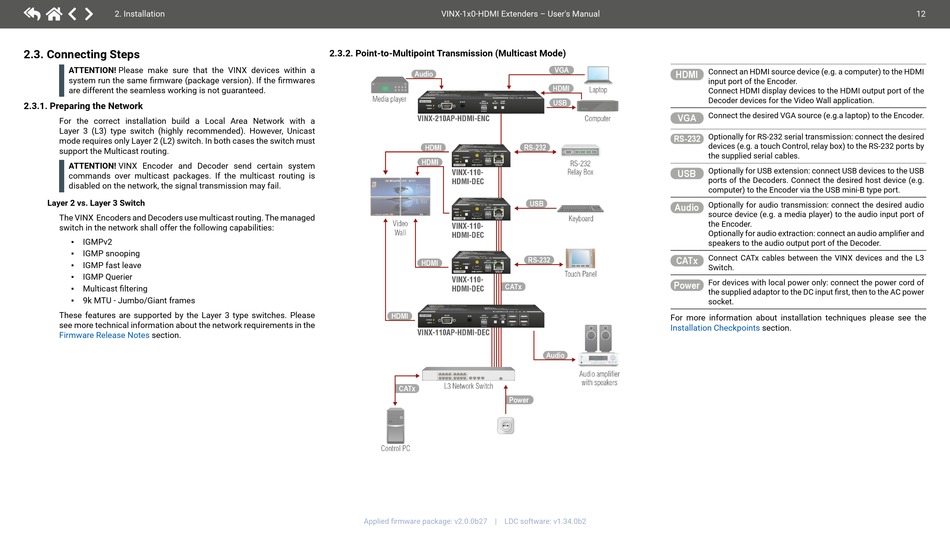

2.3.2. Point-to-Multipoint Transmission (Multicast Mode)

Appliedfirmwarepackage:v2.0.0b27 | LDCsoftware:v1.34.0b2
HDMI Connect an HDMI source device (e.g. a computer) to the HDMI
input port of the Encoder.
Connect HDMI display devices to the HDMI output port of the
DecoderdevicesfortheVideoWallapplication.
Connect the desired VGA source (e.g.a laptop) to the Encoder.
VGA
Optionally for RS-232 serial transmission: connect the desired
RS-232
devices (e.g. a touch Control, relay box) to the RS-232 ports by
the supplied serial cables.
USB Optionally for USB extension: connect USB devices to the USB
ports of the Decoders. Connect the desired host device (e.g.
computer) to the Encoder via the USB mini-B type port.
Optionally for audio transmission: connect the desired audio
Audio
source device (e.g. a media player) to the audio input port of
the Encoder.
Optionallyforaudioextraction:connectanaudioamplifierand
speakers to the audio output port of the Decoder.
Connect CATx cables between the VINX devices and the L3
CATx
Switch.
For devices with local power only: connect the power cord of
Power
thesuppliedadaptortotheDCinputfirst,thentotheACpower
socket.
For more information about installation techniques please see the
Installation Checkpoints section.
