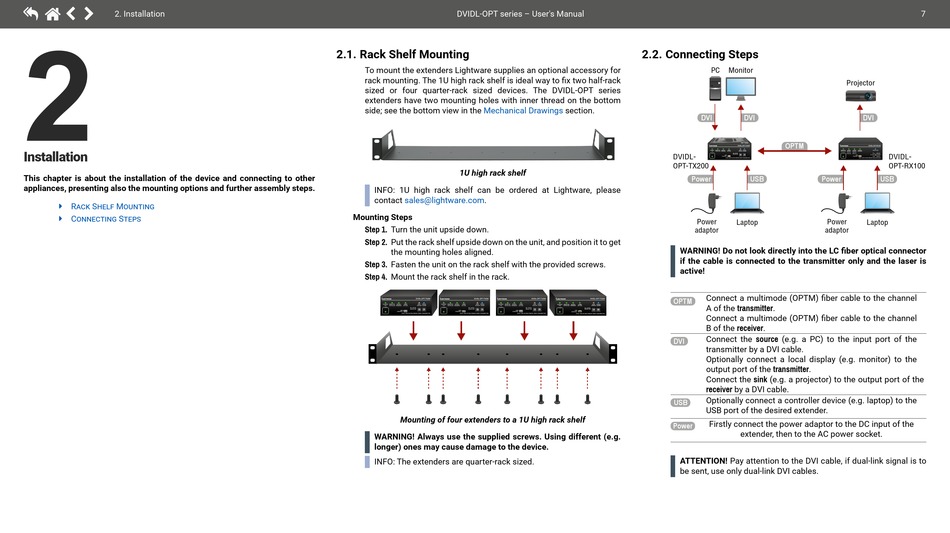

2. Installation

2
I nstallation
This chapter is about the installation of the device and connecting to other
appliances, presenting also the mounting options and further assembly steps.
ç Rack Shelf Mounting
ç Connecting Steps
DVIDL-OPT series – User's Manual
2.1. Rack Shelf Mounting
To mount the extenders Lightware supplies an optional accessory for
rack mounting. The 1U high rack shelf is ideal way to fix two half-rack
sized or four quarter-rack sized devices. The DVIDL-OPT series
extenders have two mounting holes with inner thread on the bottom
side; see the bottom view in the Mechanical Drawings
1U high rack shelf
INFO: 1U high rack shelf can be ordered at Lightware, please
contact sales@lightware.com.
Mounting Steps
Step 1. Turn the unit upside down.
Step 2. Put the rack shelf upside down on the unit, and position it to get
the mounting holes aligned.
Step 3. Fasten the unit on the rack shelf with the provided screws.
Step 4. Mount the rack shelf in the rack.
D D V V I I D D L L - - O O P P T T - - T T X X 2 2 0 0 0 0 D D V V I I D D L L - - O O P P T T - - T T X X 2 2 0 0 0 0
SOURCE MONITOR SIGNAL LASER EDID PRESS SOURCE MONITOR SIGNAL LASER EDID PRESS SOURCE MONITOR SIGNAL
+5V HOTPLUG PRESENT ACTIVE STATUS LEARN +5V HOTPLUG PRESENT ACTIVE STATUS LEARN +5V HOTPLUG PRESENT
POWER POWER POWER
00: LOCAL 00: LOCAL
MONITOR MONITOR
USB USB USB
CONTROL CONTROL CONTROL
DUAL LINK DVI MULTIMODE FIBER TRANSMITTER DUAL LINK DVI MULTIMODE FIBER TRANSMITTER
Mounting of four extenders to a 1U high rack shelf
WARNING! Always use the supplied screws. Using different (e.g.
longer) ones may cause damage to the device.
INFO: The extenders are quarter-rack sized.
2.2. Connecting Steps
section.
DVIDL-
OPT-TX200
Power
Power
adaptor
WARNING! Do not look directly into the LC fiber optical connector
if the cable is connected to the transmitter only and the laser is
active!
OPTM
D D V V I I D D L L - - O O P P T T - - T T X X 2 2 0 0 0 0 D D V V I I D D L L - - O O P P T T - - T T X X 2 2 0 0 0 0
LASER EDID PRESS SOURCE MONITOR SIGNAL LASER EDID PRESS
ACTIVE STATUS LEARN +5V HOTPLUG PRESENT ACTIVE STATUS LEARN
POWER
00: LOCAL 00: LOCAL
MONITOR MONITOR
USB
CONTROL
DUAL LINK DVI MULTIMODE FIBER TRANSMITTER DUAL LINK DVI MULTIMODE FIBER TRANSMITTER
DVI
USB
Power
ATTENTION! Pay attention to the DVI cable, if dual-link signal is to
be sent, use only dual-link DVI cables.
PC Monitor
Projector
DVI DVI DVI
OPTM
D D V V I I D D L L - - O O P P T T - - T T X X 2 2 0 0 0 0 D D V V I I D D L L - - O O P P T T - - R R X X 1 1 0 0 0 0
SOURCE MONITOR SIGNAL LASER EDID PRESS MONITOR LASER LASER SIGNAL BOOTLOAD
+5V HOTPLUG PRESENT ACTIVE STATUS LEARN HOTPLUG DETECT DETECT PRESENT
(Link 1) (Link 2)
POWER 00: LOCAL POWER (Fiber B) (Fiber A) B ( Link 1 ) B
MONITOR
USB USB TX OUTPUT RX INPUT
CONTROL CONTROL
A Link 2 ( ) A
DUAL LINK DVI MULTIMODE FIBER TRANSMITTER DUAL LINK DVI MULTIMODE FIBER RECEIVER
USB Power USB
Laptop Power Laptop
adaptor
Connect a multimode (OPTM) fiber cable to the channel
A of the transmitter.
Connect a multimode (OPTM) fiber cable to the channel
B of the receiver.
Connect the source (e.g. a PC) to the input port of the
transmitter by a DVI cable.
Optionally connect a local display (e.g. monitor) to the
output port of the transmitter.
Connect the sink (e.g. a projector) to the output port of the
receiver by a DVI cable.
Optionally connect a controller device (e.g. laptop) to the
USB port of the desired extender.
Firstly connect the power adaptor to the DC input of the
extender, then to the AC power socket.
