| Connect the i-Pilot Link to the Humminbird Control Head

Use the following instructions to connect the i-Pilot Link to the installed Humminbird control head. If you purchased the Humminbird
Ethernet Switch, install it using the instructions in the included installation guide.
WARNING! The power source must be turned off before you proceed with the installation.
1. Confirm that all power sources are turned off.
2. Locate the Ethernet cable on the i-Pilot Link.
3. If you are using the Ethernet extension cable for your installation, connect it to the
Ethernet cable on the i-Pilot Link. Hand-tighten the screw nut.
If you do not need the Ethernet extension cable for your installation, proceed to step 4.
4. Route the cable to the Humminbird control head (SOLIX, ONIX, or ION) or optional Ethernet
Switch.
NOTE: The cable should be routed through an established routing system on the boat, in an area
with minimal interference. Inspect the selected route carefully to ensure that there are no sharp
edges, obstacles, or obstructions that may damage the cables.
5. Humminbird Control Head (SOLIX, ONIX, or ION): Connect the Ethernet Cable connector to
the Ethernet port on the Humminbird control head.
Ethernet Switch: Connect the Ethernet Cable connector to an available Ethernet port.
6. Hand-tighten the screw nut to secure the connection.
9

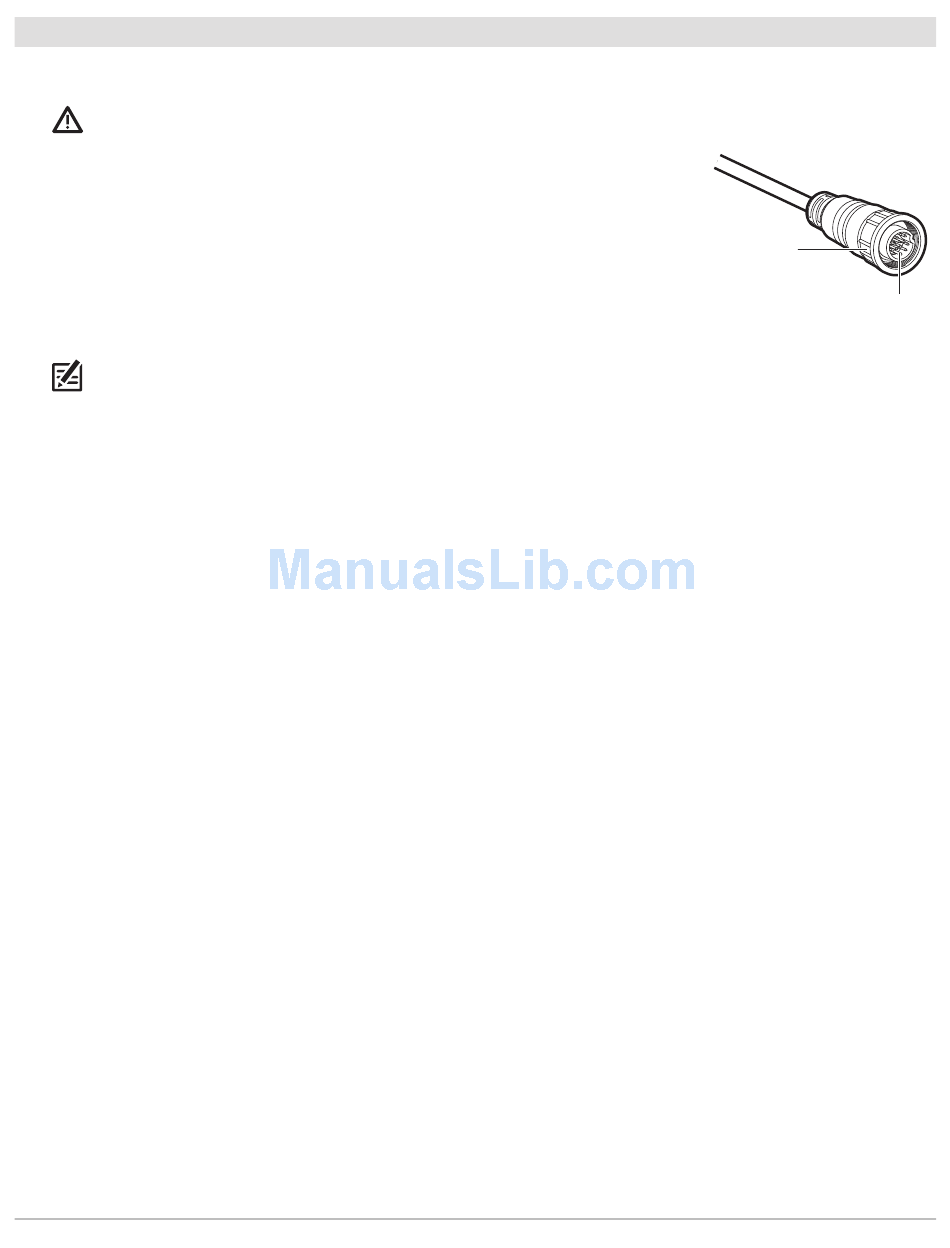

Connecting the Ethernet Cable
screw nut
The connectors are keyed to
prevent reversed installation.
Installation
