Follow Bottom Hardness or Vegetation

If you have saved Bottom Layer data (with AutoChart Live) on your control head or installed an AutoChart ZeroLine Map Card, you
can navigate the selected Bottom Hardness. or Vegetation Layer. The selected starting point must be within 1/4 mile of the selected
bottom layer. For more information about AutoChart Live, see your control head operations manual.
Open the AutoChart Live Menu
Use the following instructions to open the AutoChart Live menu and display your saved map on the Chart View.
Touch Screen
1. Tap Chart in the status bar.
2. Select AutoChart Live.
3. Show/Hide the Layer: Select AutoChart Live. Tap the
menu name to add a check mark to the box. (check
mark = visible, blank = hidden)
Adjust the Transparency: Drag the slider, or press and
hold the slider.
Show Bottom Hardness
Use the following instructions to display the Bottom Hardness layer and adjust the display settings.
Touch Screen
1. From the AutoChart Live menu, select Bottom
Hardness.
2. Show/Hide the Layer: Select Hardness Layer. Tap the
menu name to add a check mark to the box. (check
mark = visible, blank = hidden)
Adjust the Transparency: Drag the slider, or press and
hold the slider.
AutoChart
layer turned
on (check
mark)
Bottom
Hardness
layer turned
on (check
mark)
Bottom
Hardness
selected
Follow the Contour

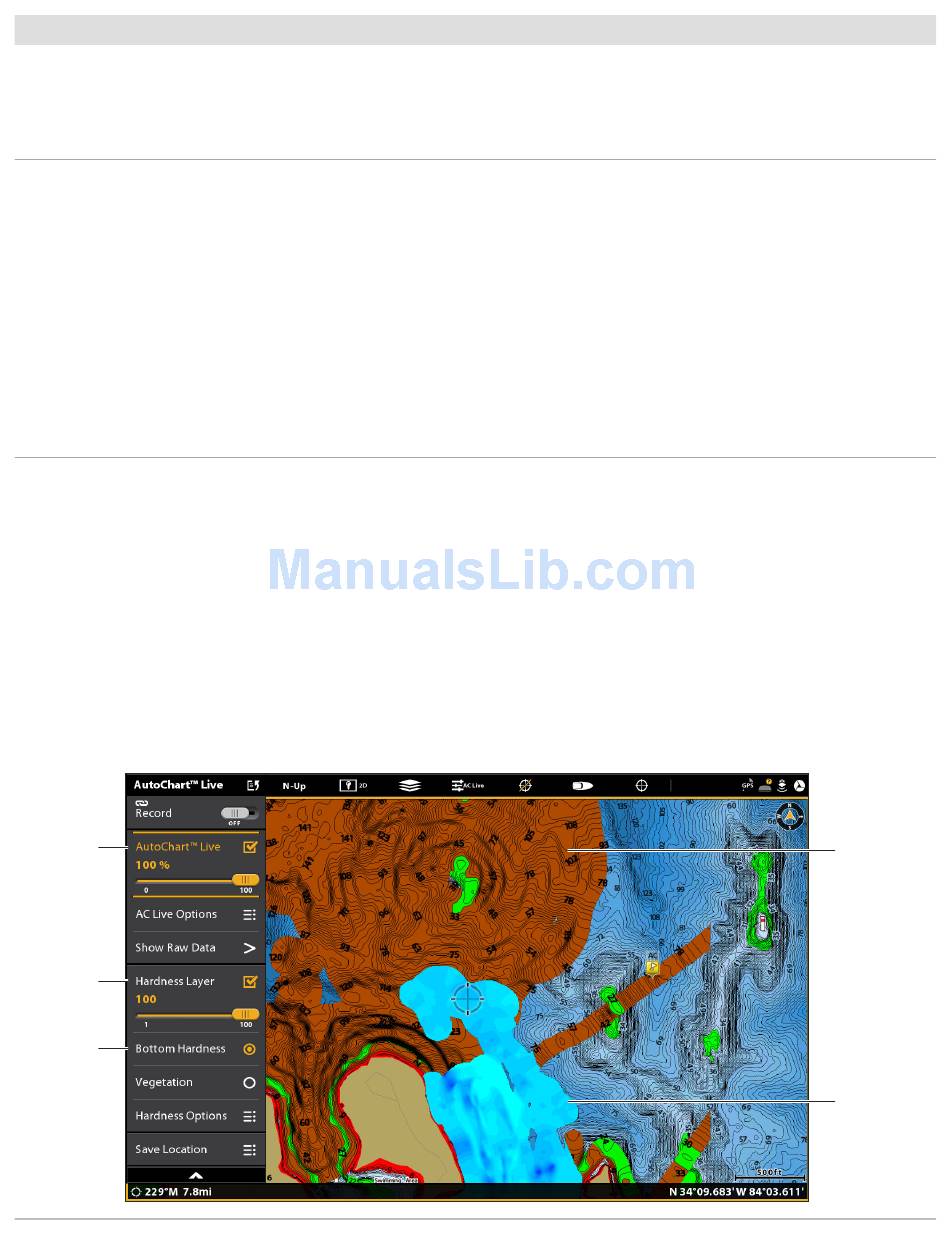

Displaying Bottom Hardness on the Chart View (SOLIX)
108
Keypad
1. Press the MENU key.
2. Select AutoChart Live.
3. Show/Hide the Layer: Select AutoChart Live. Press the
ENTER key to add a check mark to the box. (check
mark = visible, blank = hidden)
Adjust the Transparency: Turn the Rotary dial, or press
and hold the ENTER key.
Keypad
1. From the AutoChart Live menu, select Bottom
Hardness.
2. Show/Hide the Layer: Select Hardness Layer. Press the
ENTER key to add a check mark to the box. (check
mark = visible, blank = hidden)
Adjust the Transparency: Turn the Rotary dial, or press
and hold the ENTER key.
AutoChart Live
layer
(orange)
Bottom
Hardness layer
(blue)
