| Set the Water Level Offset

Before starting navigation, set the Water Level Offset setting to change the water level read by the Humminbird control head. For
example, if the lake is down 5 feet, set the Water Level Offset setting to -5. The displayed numbers on the Contour Lines will adjust
from the Water Level Offset setting, and the water level offset will be highlighted in brown to extend the land visually on the display.
NOTE: Humminbird LakeMaster must be selected as the chart source to enable this feature.
To apply depth colors, depth highlight range, shallow water, etc., see Display Humminbird LakeMaster Contour Lines and Depth
Ranges.

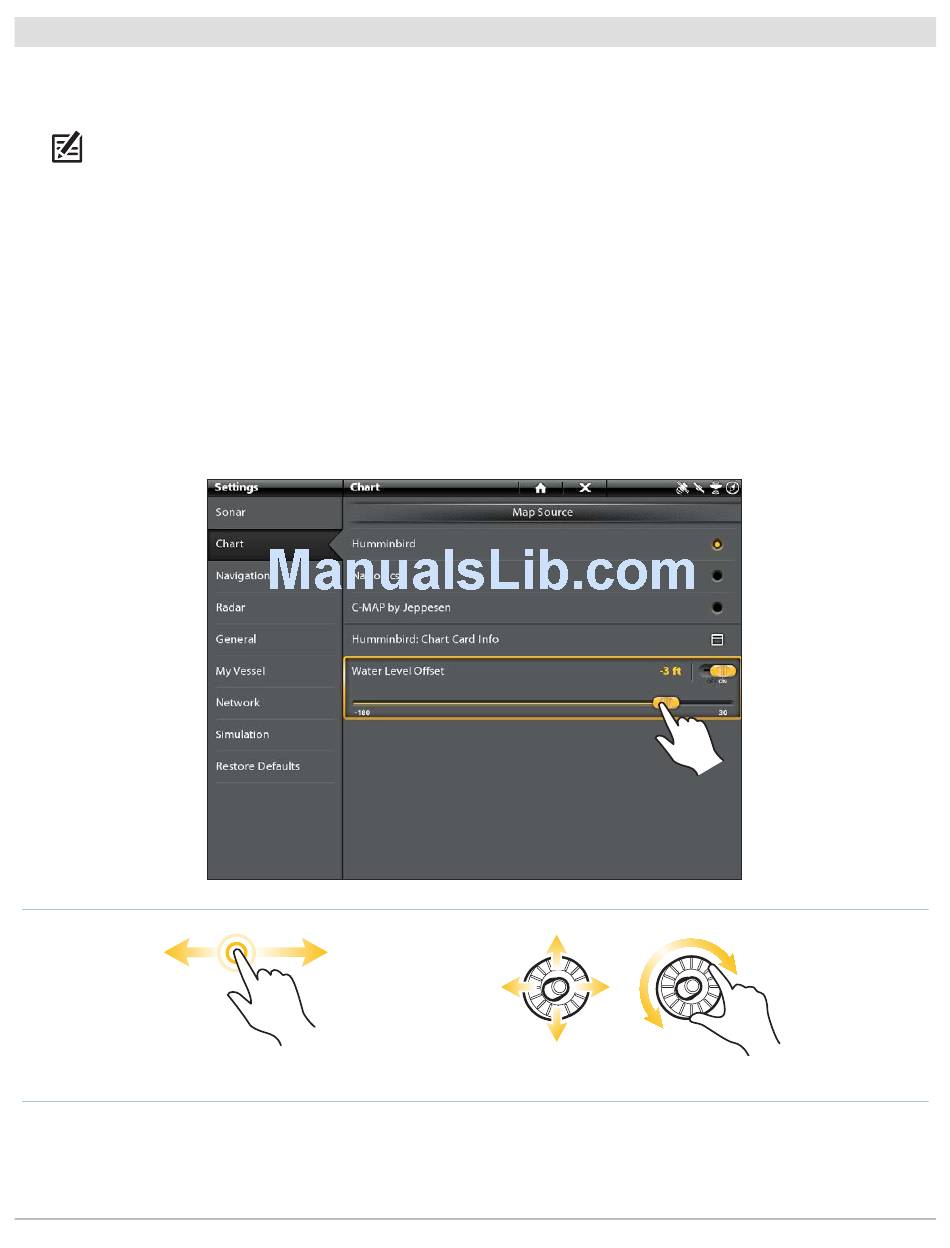

Set the Water Level Offset
1. Under Settings, select Chart.
2. Under Map Source, select Water Level Offset.
3. On: Tap the on/off button, or press the ENTER key, to turn it on.
Adjust: Press and hold the slider, or turn the Rotary dial.
Configuration
Press and hold OR Slide
Setting the Water Level Offset
OR
Select
22
Turn to Adjust the Setting
