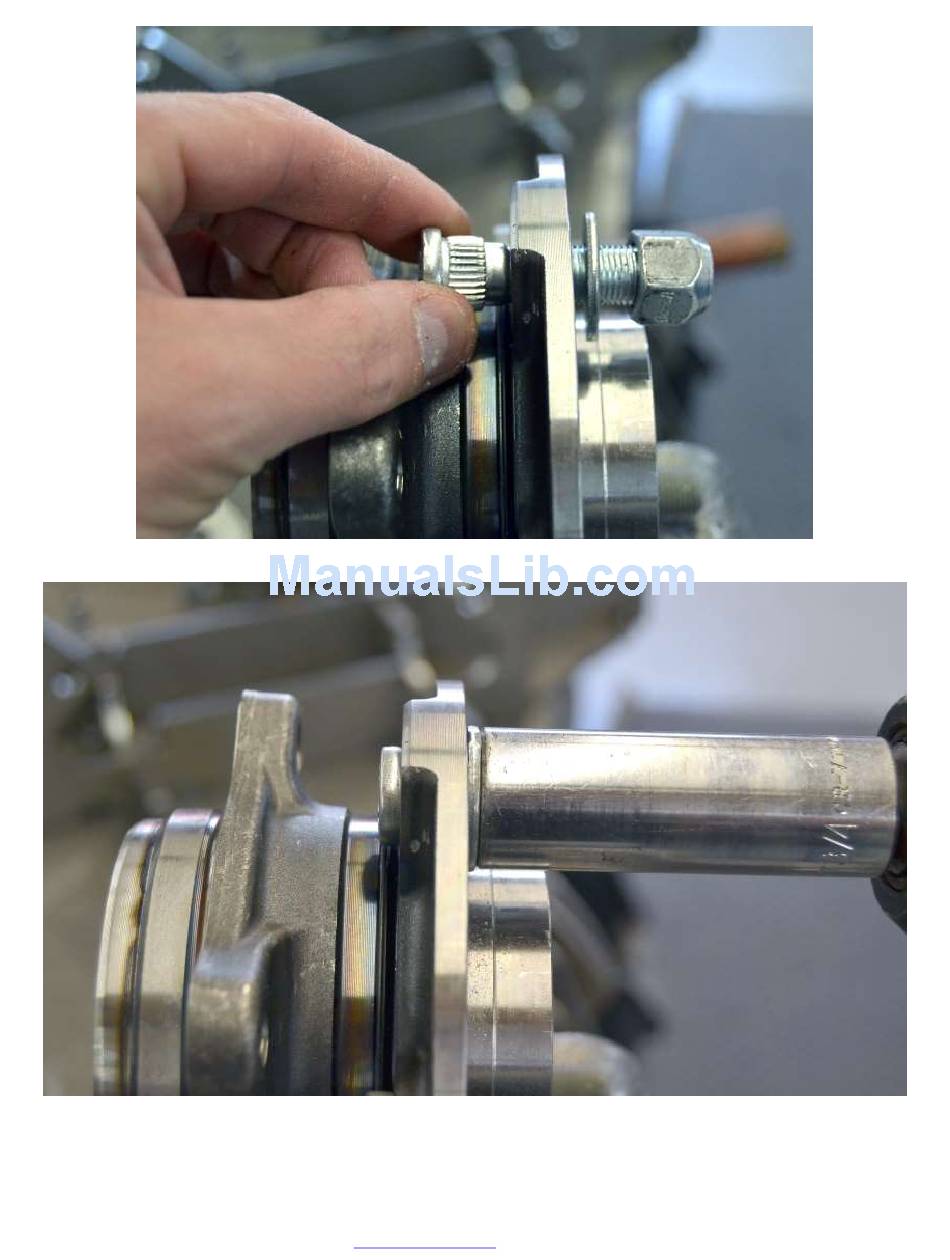

Insert one of the included wheel studs into the hub from the back and use a washer and lug nut on the front side.
Use a ratchet to draw the wheel stud into the hub and torque the stud to 135Nm (100lb-ft).
84
www.factoryfive.com
508-291-3443
