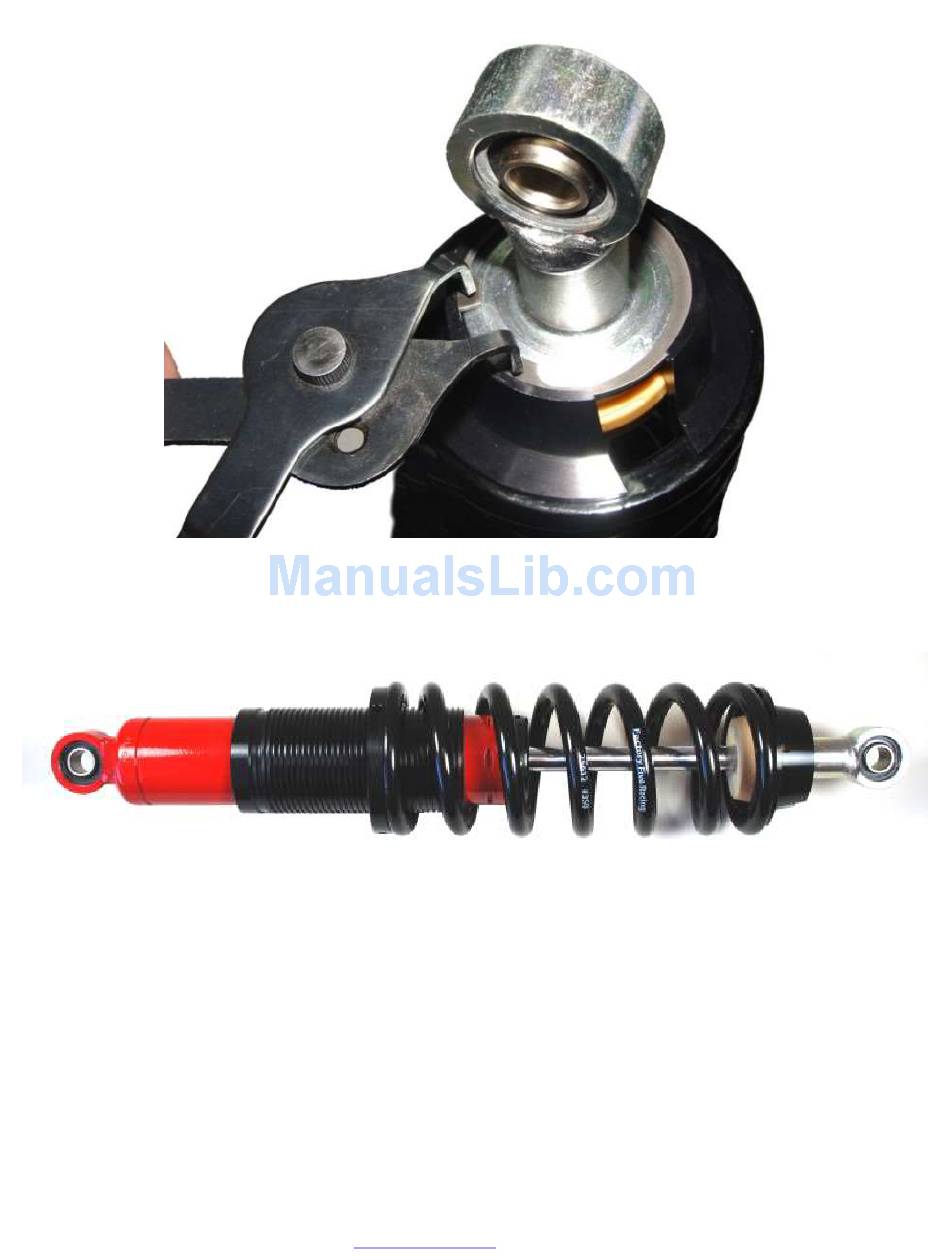

Install the snap ring on the spring hat so that it holds onto the shock end. Make sure that the slot in the snap
ring and the slot in the spring hat are not aligned.
Use zip ties to hold the spring to the spring hat.
Assembled solid axle Koni coil-over shock.
74
www.factoryfive.com
508-291-3443
